Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer

Name: Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHLJ504
Price: 1,662.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	CE
Model Number:	XHLJ504

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

Model Number:

XHLJ504

Function:

Cable Route Tracing & Cable Fault Pinpointing

Working Power Supply:

220V(1±10%) 50Hz(1±5%)

Output Power:

100W

Output Current:

0～2A

Quiescent Current:

Less Than 10m A

Output Signal:

Intermittent: 0～50Vpp

Output Frequency:

15kHz Intermittent

Receiving Mode:

Magnetic Sound Synchronization

Receiving Frequency:

Audio Frequency

Magnification:

50,0000 Times

Output Impedance:

350Ω

Operating Temperature:

-10 ~ 55°C

Highlight:

High Light

Highlight:

portable underground cable locator

Multifunctional Cable Fault Tracer

cable route tracer with warranty

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

Wooden case

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000 units/month

Product Description

XHLJ504

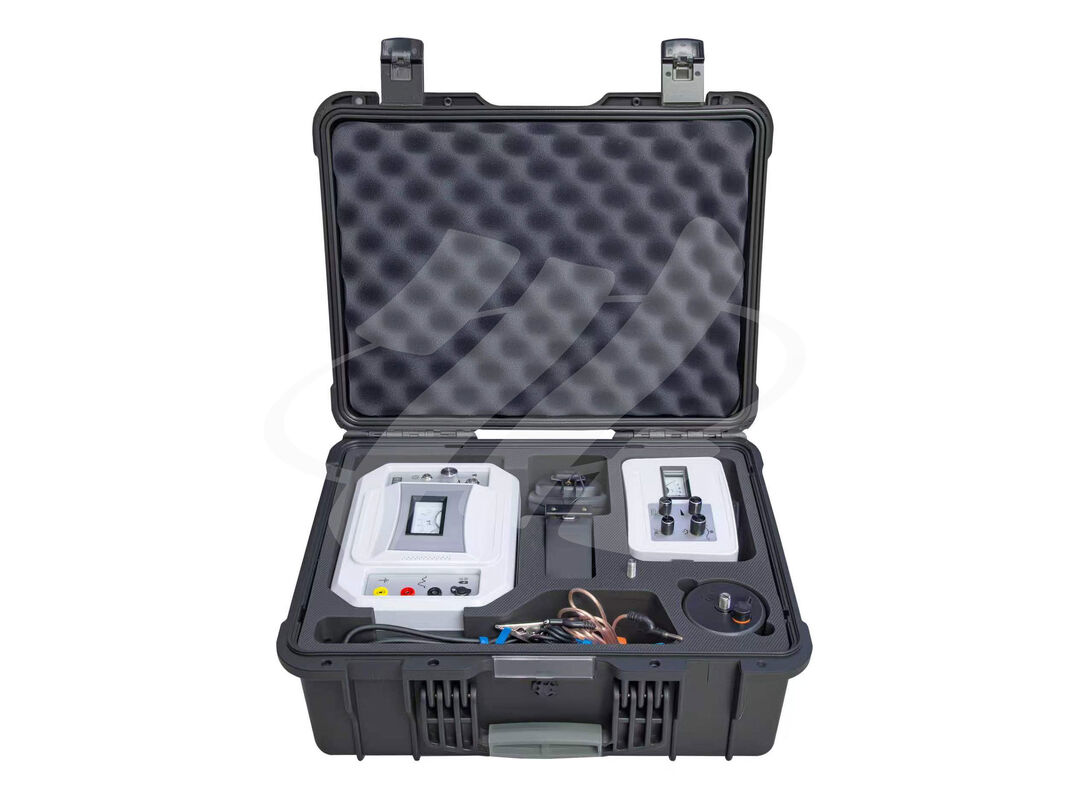

The cable path detector consists of a signal transmitter and a receiver (cable fault locator). Utilizing the principle of electromagnetic induction, it enables trenchless detection of power cable routes and burial depths, precisely pinpointing the path within the suspected burial area. When used in conjunction with a probe and headphones, the cable path receiver can also function as a cable fault locator.

Product Features

Using the traditional electromagnetic induction principle, strong anti-interference ability.
With over-current and short-circuit protection functions, it is safe and reliable.
High power output, not limited by cable length, open circuit can also find a path.
The output is steplessly adjustable, suitable for various test sites, with strong adaptability.
Super strong magnification, the detection depth is greater than 10 meters.
Ultra-low power consumption design, the quiescent current is less than 10mA.
The design of the analog meter, the signal strength and trend are clear at a glance.
The zero level can be adjusted arbitrarily, which is suitable for all kinds of strong and weak scenes.

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Robert Davis

United States Feb 27.2026

Helpful (6)

Been using this locator on job sites for a couple months now — no regrets. Picks up lines deep and accurate, way better than my old unit. Love the 11 frequency options, really helps with interference in busy areas. Build feels sturdy, battery lasts all day. Manual's a bit thin for beginners, but if you know your stuff, it's straightforward. Honestly punches way above its price tag. Would recommend to anyone in utility locating or power maintenance.
