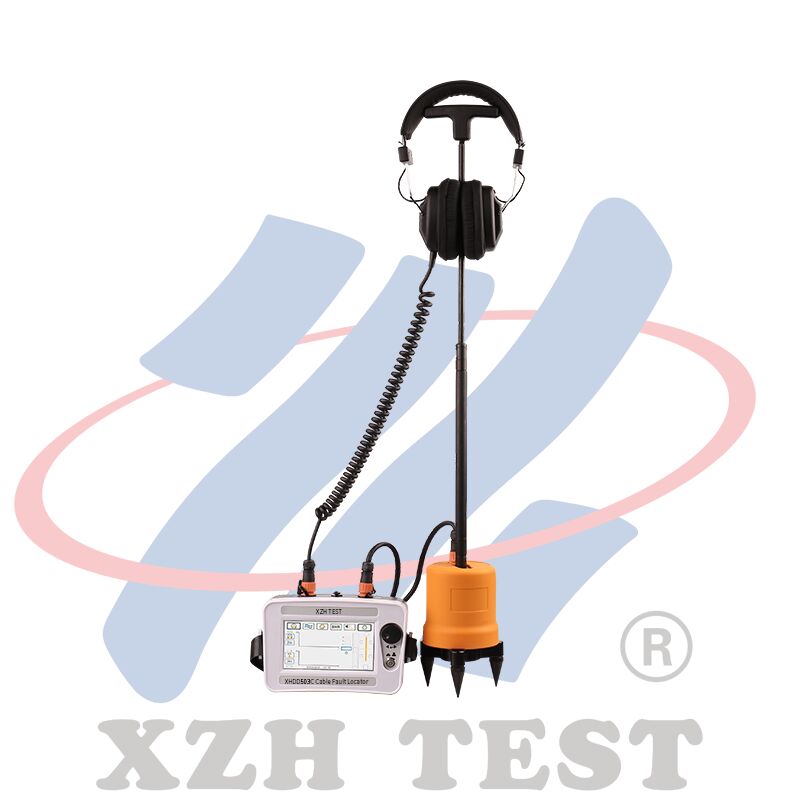

Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator

Name: Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 1,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	XHDD503C
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

XHDD503C

Model Number:

XHDD503C

Ambient Temperature:

-25～65℃

Relative Humidity:

≤90％

Detection Accuracy (Positioning):

≤0.1m

Detection Accuracy (Path):

≤0.5m

Highlight:

High Light

Highlight:

TDR Cable Fault Locator

Highly Accurate Cable Fault Locator

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000 units per year

Product Description

XHDD503C

Introduction

Utilizing the acoustic and magnetic synchronization method, the cable fault location instrument is a powerful tool for accurately identifying power cable fault points. The electronic flashover, generated by the impact discharge generator, is captured and amplified by a specialized probe. The exact location of the fault is pinpointed through auditory and visual cues. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals. It integrates advanced positioning technology with path-assisted testing, offering multiple test modes and a variety of informative prompts to efficiently and accurately locate cable faults.

Features

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

Channel gain	8 levels adjustable.
Magnetic channel gain	8 levels adjustable.
Output gain	16 levels (0~112db)
Output impedance	350Ω
Power supply	4*18650 standard lithium batteries.
Standby time	more than 8 hours.
Screen pixels	854-480
Brightness	800nit
Transmission speed unit	0-100ms
Accuracy	1ms
Sound bandwidth	100-1.6khz
Magnetic coil bandwidth	100-20kHZ
Both sound and magnetism are	greater than 75db

Packing list

Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator 1
