Accurate Fault Location Made Easy Cable Fault Locator for Industrial Applications

Product Description

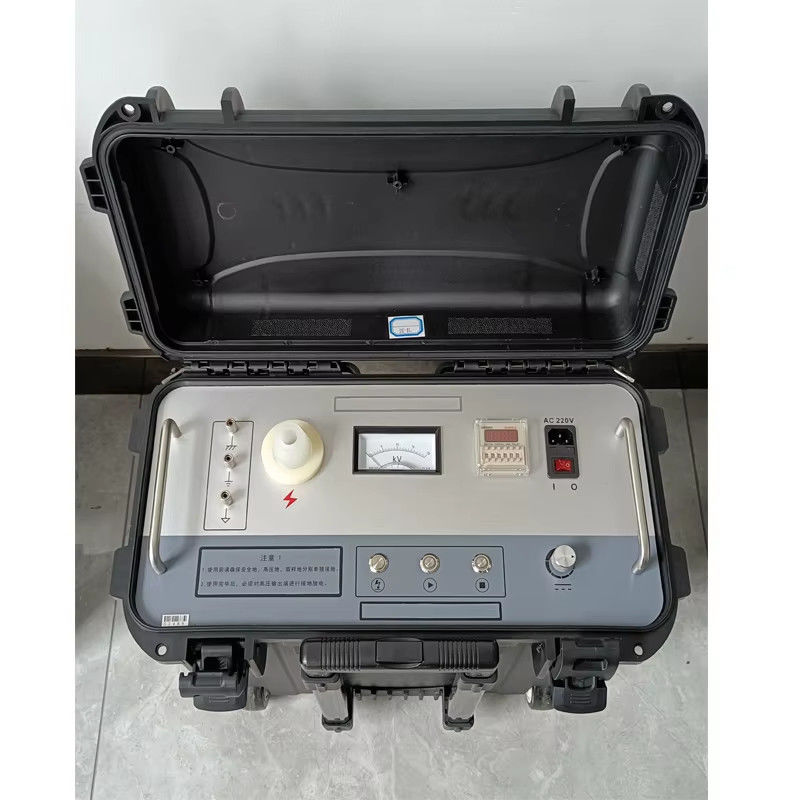

XHHV515-8L

This XHHV515-8L The device integrates DC high voltage source, energy storage capacitor, discharge ball gap and so on. The device completely replaces the traditional test transformer, operating box and pulse energy storage capacitor weighing hundreds of kilograms (generally 5kVA a set of transformers more than 60 kilograms, control box more than 30 kilograms, pulse energy storage capacitor more than 20 kilograms). The power supply adopts high-precision, high-stability special high-voltage electronic components and high-frequency high-voltage technology, which makes the whole machine simple structure and ultra-light weight. In order to retain the habit of using transformer and operating box to produce DC high voltage, the pulse generator adopts humanized design operation mode, which is safe and reliable. Really do not break the impact effect, high voltage to the ground short circuit can also work normally. At present, it is the lightest and most humanized portable DC impulse high voltage equipment. It is an ideal product for power cable fault detection.

Features

★ With over current, over voltage, overheating automatic protection function;

★ High voltage pulse output is uniform and controllable;

★ Strong short-circuit protection function, can make the high-voltage output directly to the ground short-circuit work;

★ With current, voltage double 2.5 level pointer table display, intuitive and clear, impact discharge process is clear;

★ High voltage side voltage measurement, real-time accurate;

★ With zero start protection, and potentiometer zero output function, safe and reliable;

★ Unique high voltage measurement design, in the stopped state, the voltmeter can indicate the capacitance voltage in real time;

★ Discharge time can be arbitrarily set within the appropriate interval;
