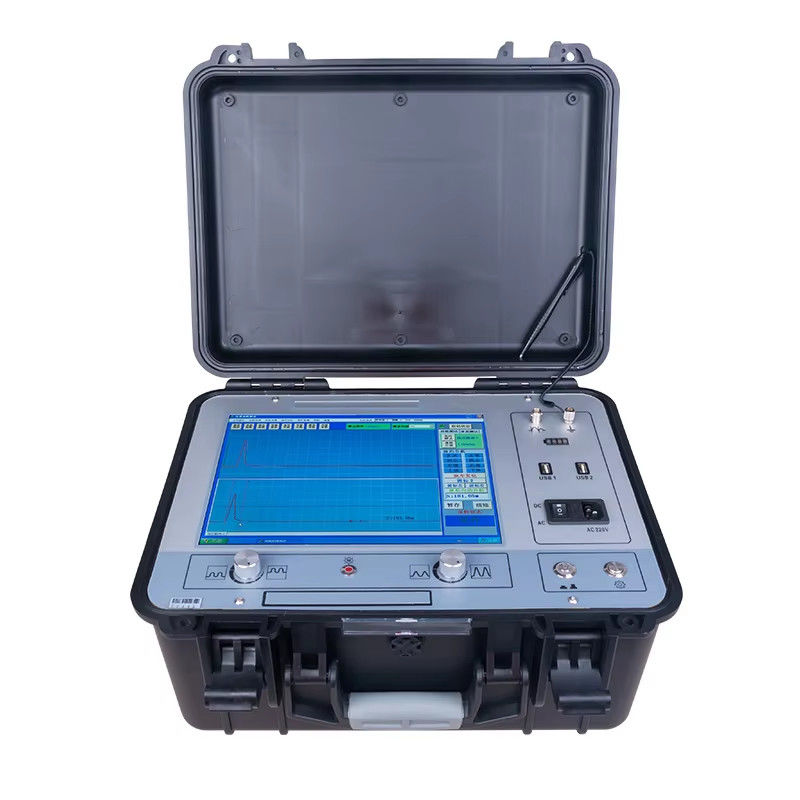

Precision Distance Test Cable Fault Locator For Different Applications

Name: Precision Distance Test Cable Fault Locator For Different Applications
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG501A
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHGG501A

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHGG501A

Function:

Cable Fault Distance Test

Test Method:

Low Voltage Pulse Method, High Voltage Flashover Method

Measuring Distance:

≥60km

Pulse Amplitude:

400Vpp

Pulse Width:

Adaptive

Reading Resolution:

0.5m

Sampling Speed:

50/100/200/400MHz

Display:

12.1 Inch Touch Screen

Certificate:

Highlight:

High Light

Highlight:

Distance Test Cable Fault Locator

Precision Cable Fault Locator

Trading Information

Minimum Order Quantity:

1 Set

Packaging Details:

Wooden box packaging

Delivery Time:

5-8 Work days

Payment Terms:

T/T

Product Description

Product Description

XHGG501A is designed for underground power cable fault pre-locating, to provide quick accurate and safe measurement solution.
Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault. Great for KV substation, civil power supply system and power energy sources applications.

* Accurate and rapid detection of the primary insulation cable fault and sheath fault below 220kV, calibrate cable length; accurate detection of cable laying trend and depth.System components XHGG series flash cable fault tester, the core part of the whole unit, mainly for the coarse testing of insulation fault in the EHV cable.
* XHDD series cable fault locator is used to pinpoint the main EHV cable insulation failure. XHLJ series cable path analyzer (referred to as: Path instrument) is used to find direction and depth of buried cables.
* High voltage equipment discharge sampler, high voltage test equipment, energy storage capacitors, professional test lines
* Cooperated with flash tester to do coarse testing; with cable fault locator to pinpoint the cable fault point
* Measure the power cable of different sections, different media of various materials, Coaxial cable, Street light cables and short circuit, open circuit short line fault of the low resistivity under ground wire. Superior cable management system, automatically generate test reports.

Sampling speed
50/100/200/400MHz

Measuring method
flashover sampling method,low voltage impulse method

Measuring distance
≥60km

Pulse amplitude
400Vpp

Pulse width
adaptive

Reading resolution
0.5m

Measurement accuracy
rough measurement error: ±10m (absolute value) or 1% (relative value)
