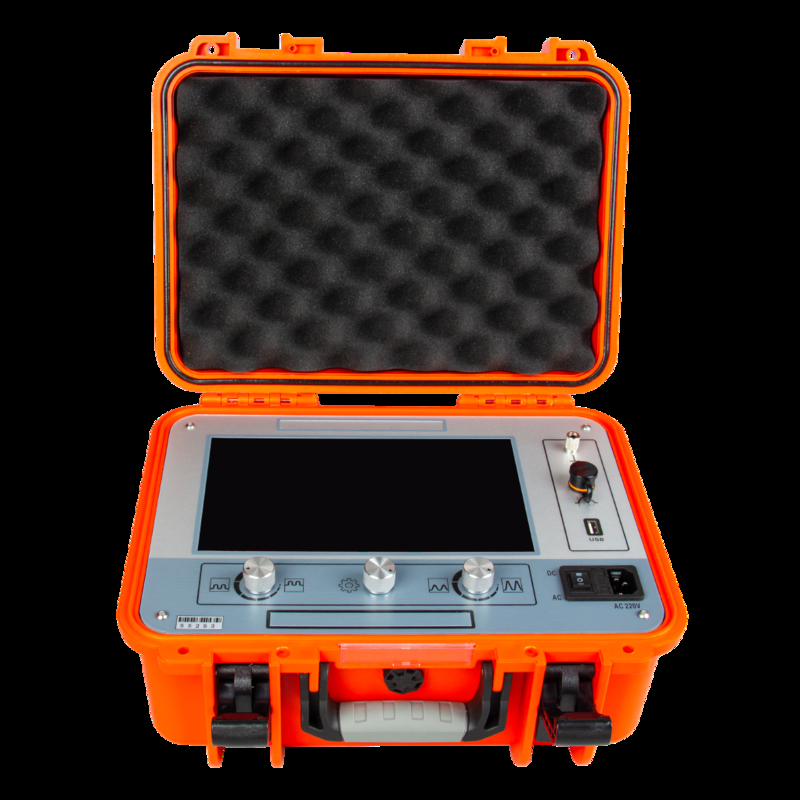

Immediately Reads Fault Distance Underground Cable Tester

Name: Immediately Reads Fault Distance Underground Cable Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG502A2
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE、ISO
Model Number:	XHGG502A2

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE、ISO

Model Number:

XHGG502A2

Highlight:

High Light

Highlight:

underground cable fault tester

cable fault distance locator

immediate fault detection cable tester

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

5000unit/year

Product Description

XHGG502A2 cable fault tester

Introduction

With an industrial-grade 10.1-inch touch-integrated computer, the cable fault tester provides a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, ensuring stability, reliability, and ease of use. This instrument is designed to measure and analyze the status and fault distance of power cables. It combines modern electronic and computer technologies to perform signal filtering, acquisition, data processing, graphic display, and graphic analysis, covering cable speed measurement, cable length test, and cable fault distance test.

Features

• 10.1-inch full-color TFT touch display;

• Embedded system, safe, stable and simple display and operation mode;

• With the function of testing cable wave speed, cable length and fault distance;

• Fully automatic continuous sampling, waveform capture at all times, timely and accurate.

• Equipped with automatic test range setting, automatic waveform analysis and display of test distance.

• Full English menu, two operation methods of touch and coded buttons, simple, fast and reliable.

• Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, the waveform display is smooth and easy to interpret.

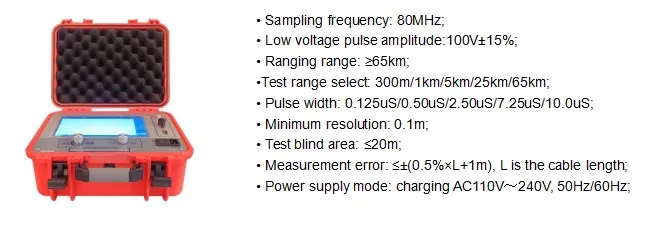

Technical indicators

Sampling frequency	80MHz
Low voltage pulse amplitude	100V±15%
Ranging range	≥65km
Test range	300m/1km/5km/25km/65km
Pulse width	0.125uS/0.50uS/2.50uS/7.25uS/10.0uS
Minimum resolution	0.1m
Test blind area	≤20m
Measurement error	≤±(0.5%×L+1m), L is the cable length
Power supply mode	charging AC110V~240V, 50Hz/60Hz
Volume and weight	L358mm×W284mm×H168mm-4.7kg
Working conditions	Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg

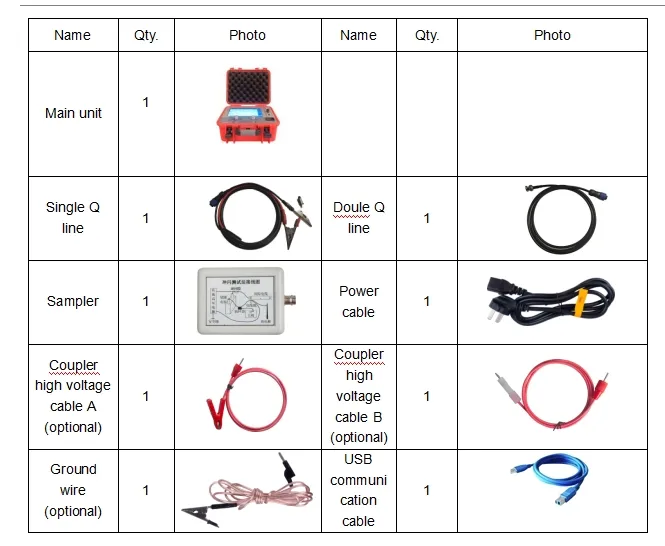

Packing list

Product Details

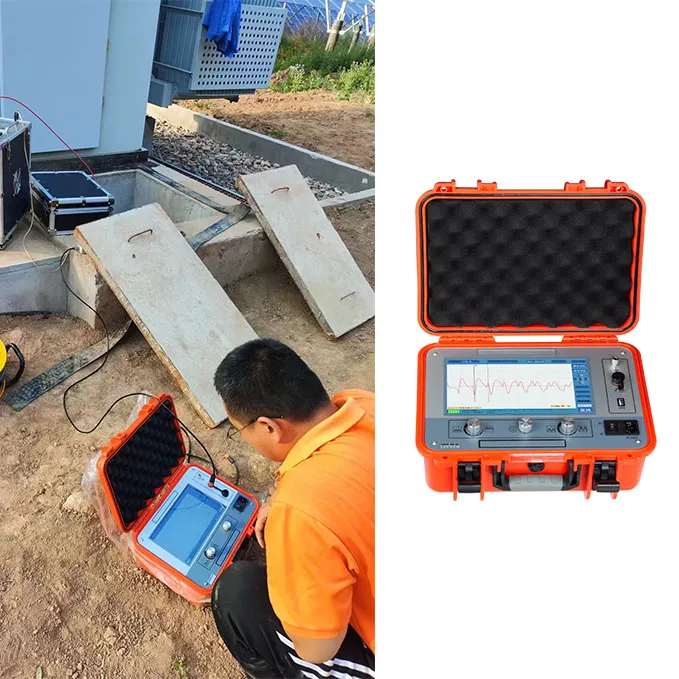

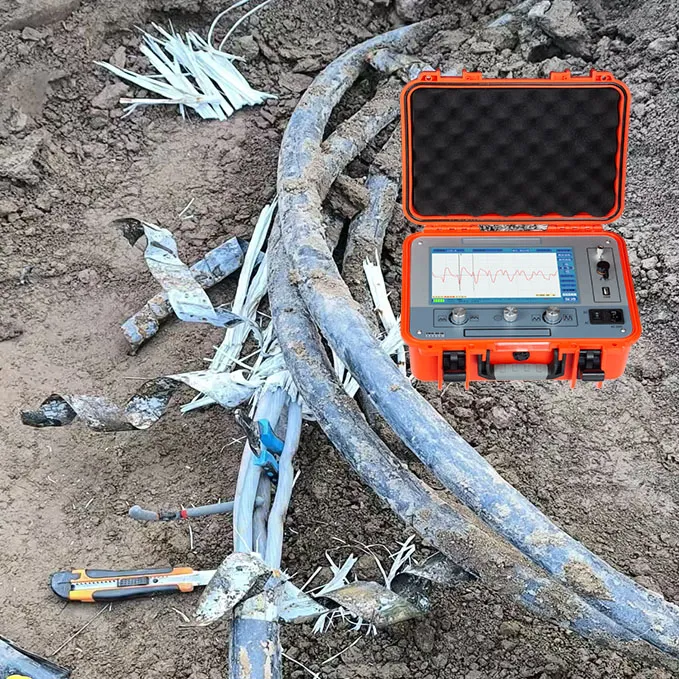

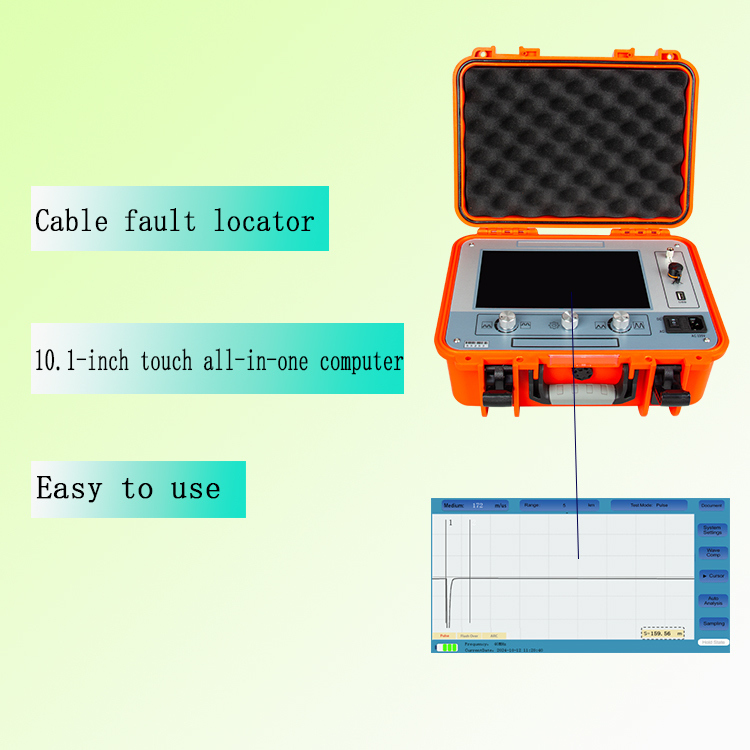

Immediately Reads Fault Distance Underground Cable Tester 1

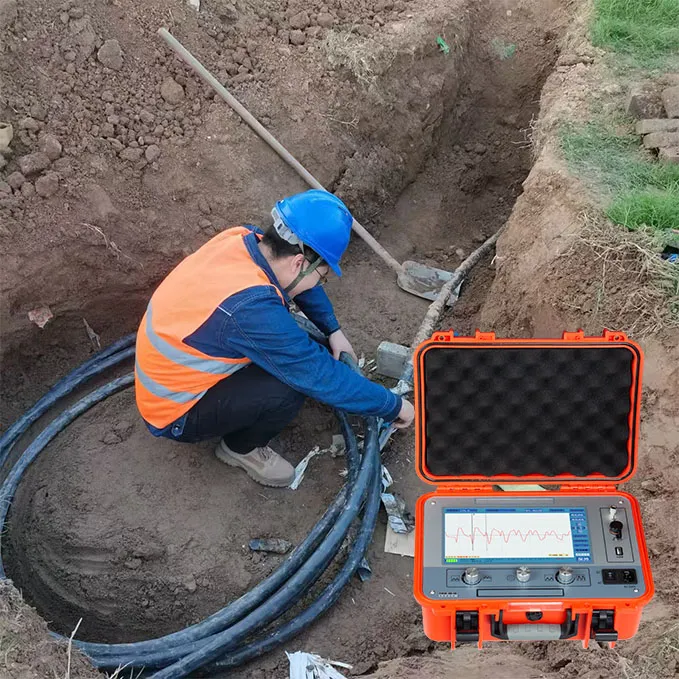

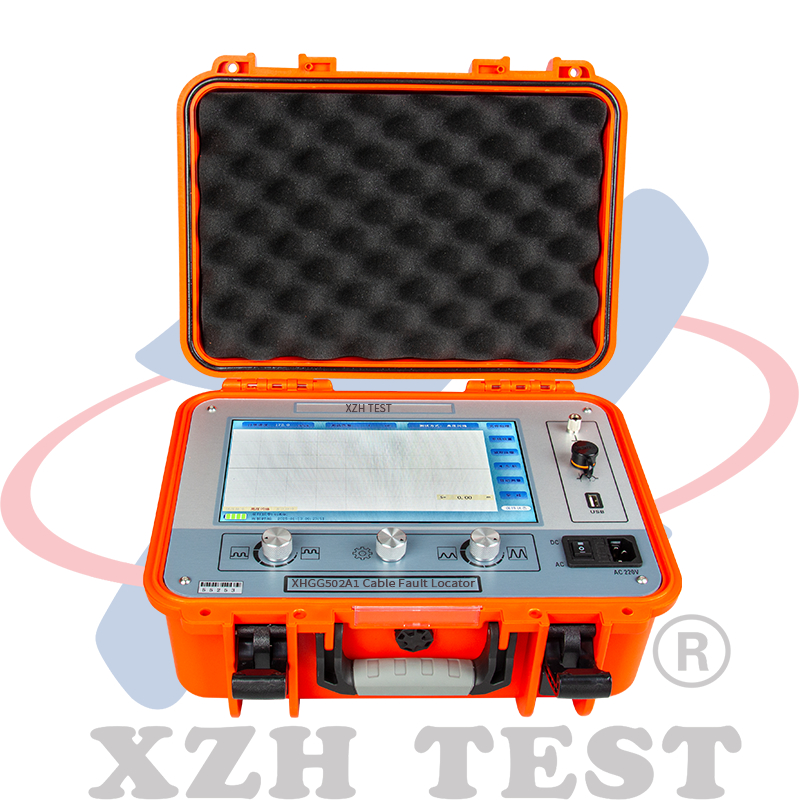

Immediately Reads Fault Distance Underground Cable Tester 2
