XHGG502A2
Description

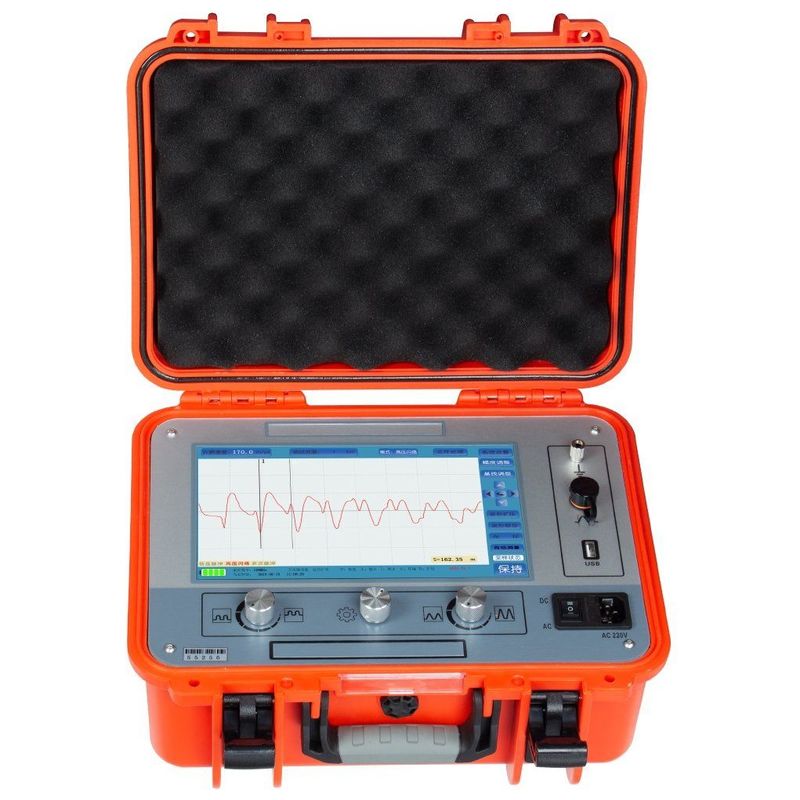

The cable fault tester adopts an industrial-grade 10.1-inch touch-integrated computer, a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, which is stable, reliable, and easy to use.
This cable fault tester is a special instrument for measuring and analyzing the status and fault distance of power cables. This cable fault tester uses a combination of modern electronic technology and computer technology to achieve signal filtering, acquisition, data processing, graphic display, and graphic analysis. Cable speed measurement, cable length test, cable fault distance test.
This cable fault tester is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flashover. Network failure. The technical parameters comply with "GB/T 18268.1 Anti-interference requirements for test equipment used in industrial sites", "DL/T 849.1-2019 General technical conditions for special testers for power equipment Part 1: Cable fault flash tester", "JJF1042-2020" "Calibration Specifications for Cable Fault Testers" standard requirements.
Work mode: TDR(low voltage pulse), High voltage flashover( ICE(Impulse current)/Decay)
Features
• 10.1-inch full-color TFT touch display;
• Embedded system, safe, stable and simple display and operation mode;
• With the function of testing cable wave speed, cable length and fault distance;
• Fully automatic continuous sampling, waveform capture at all times, timely and accurate.
• Equipped with automatic test range setting, automatic waveform analysis and display of test distance.
• Full English menu, two operation methods of touch and coded buttons, simple, fast and reliable.
• Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, the waveform display is smooth and easy to interpret.
• The instrument has powerful data processing capabilities, making it convenient for users to manage and archive waveform files.
• Has a massive test waveform storage function: the waveforms tested on site can be conveniently stored in the instrument in the order specified by Chinese naming for recall and observation at any time; it can store more than 8,000 records of low-voltage pulses and high-voltage flashover waveforms, and multiple pulses More than 250 waveform records can be recorded, and waveform files can be imported into computer software for management and analysis using USB communication.
• Ultra-high brightness, LED backlight brightness reaches 280nit, resolution 1024*600, convenient for environments exposed to direct sunlight in operation.
Technical specification
| Sampling frequency |
80MHz |
| Low voltage pulse amplitude |
100V±15% |
| Ranging range |
≥65km |
| Test range |
300m/1km/5km/25km/65km |
| Pulse width |
0.125uS/0.50uS/2.50uS/7.25uS/10.0uS |
| Minimum resolution |
0.1m |
| Test blind area |
≤20m |
| Measurement error |
≤±(0.5%×L+1m), L is the cable length |
| Power supply mode |
charging AC110V~240V, 50Hz/60Hz |
| Volume and weight |
L358mm×W284mm×H168mm-4.7kg |
| Working conditions |
Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg |

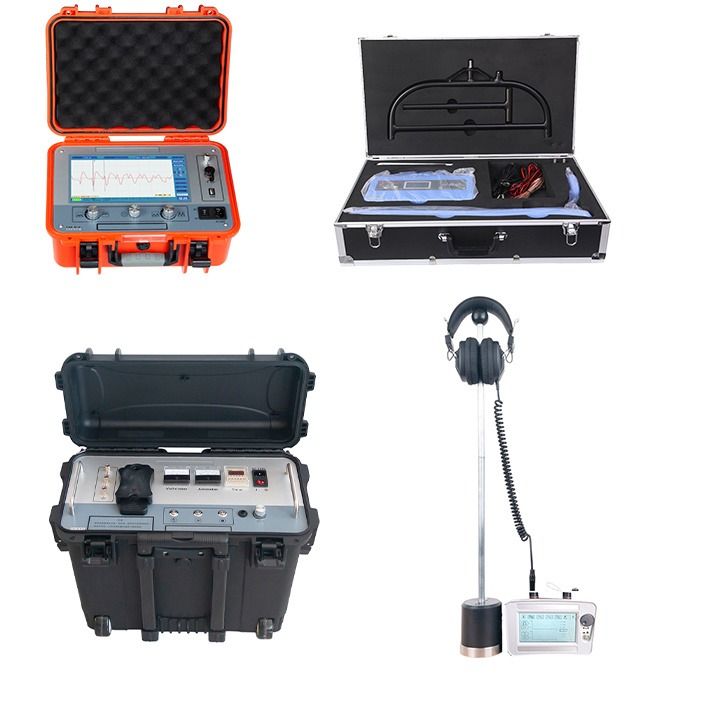

Packing list
XHDD503B
Introduction Cable fault locator XHDD503B uses the acoustic and magnetic synchronization method to determine the power cable fault point. The electronic flashover is generated by the impact discharge generator, picked up and amplified by the corresponding probe, and the precise location of the fault point is determined by auditory and visual judgment. It is a device that completes the precise positioning of the cable fault point within the rough measurement range and collects the acoustic and magnetic time difference. It integrates positioning technology, path-assisted testing and other technologies, providing multiple test modes and rich and diverse prompt information to efficiently and accurately complete cable fault location.
Technical indicators
| Acoustic-magnetic synchronous fixed-point function |
| Acoustic-magnetic synchronous fixed-point function |
Sound channel |
a) Bandwidth
All pass: 100Hz~1500Hz.
Low pass: 100Hz~400Hz.
Qualcomm: 150Hz~1500Hz.
Band pass: 200Hz~600Hz.
b) Maximum signal gain: >=100dB.
c) Fixed-point accuracy: 0.1m. |
| Magnetic field channel |
Maximum signal gain: >=100db |
| Acoustomagnetic transit time positioning mode: waveform display, acoustic and magnetic transit time display. |
| Signal gain: adjustable from 1 to 8 levels. |
| Magnetic field channel: adjustable from 1 to 8 levels |
| Sound signal strength bar graph indicates, and the sound trigger threshold (0 to 99 levels) is adjustable. |
| The electromagnetic signal strength is indicated by a bar graph, the magnetic field trigger threshold (0 to 99 levels) is adjustable, and it has a magnetic field trigger prompt function. |
| Electromagnetic signal strength bar graph indication, adjustable magnetic field trigger threshold, with magnetic field trigger prompt function. |
| Acoustic-magnetic time difference positioning mode: waveform display, the maximum acoustic-magnetic time difference is 80ms, which can be automatically calculated and manually analyzed; it can record the last time acoustic-magnetic time difference. |
| Power supply: |
a) Battery: built-in lithium-ion battery pack, voltage 8.4V, capacity 2.4Ah
b) Use time: continuous use time > 8 hours;
c) Charger: input AC220V±10%, 50Hz; nominal output 8.4V, 1A
d) Charging time: <3 hours. |
| Display mode: 5-inch color LCD, 854*480 resolution, with touch function. |
| Operating environment temperature: -20°C-65°C, humidity ≤90% RH, altitude <4500m. |
