XHGG502A2 cable fault tester
Introduction

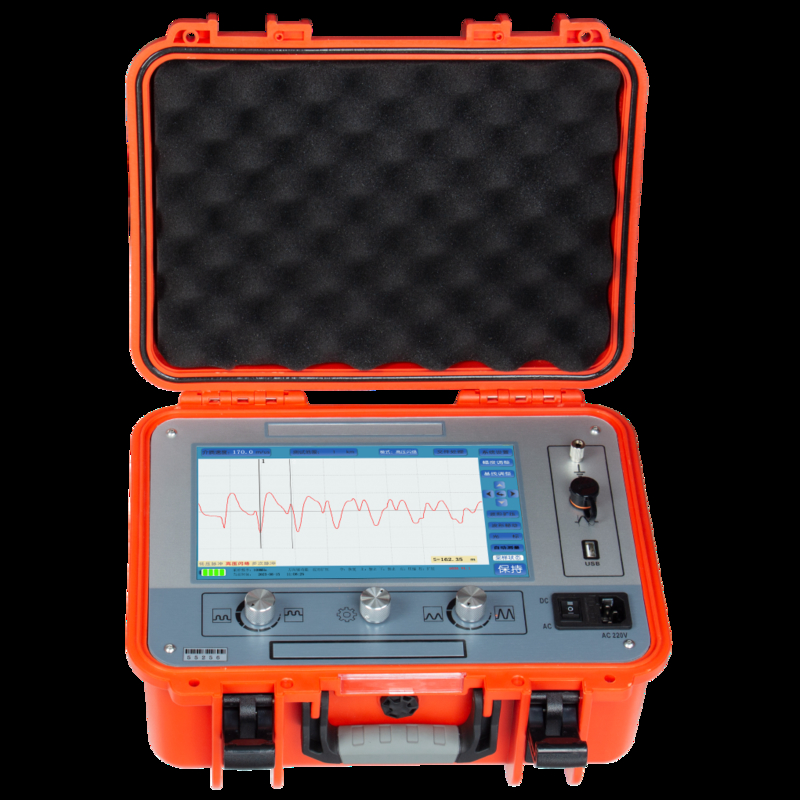

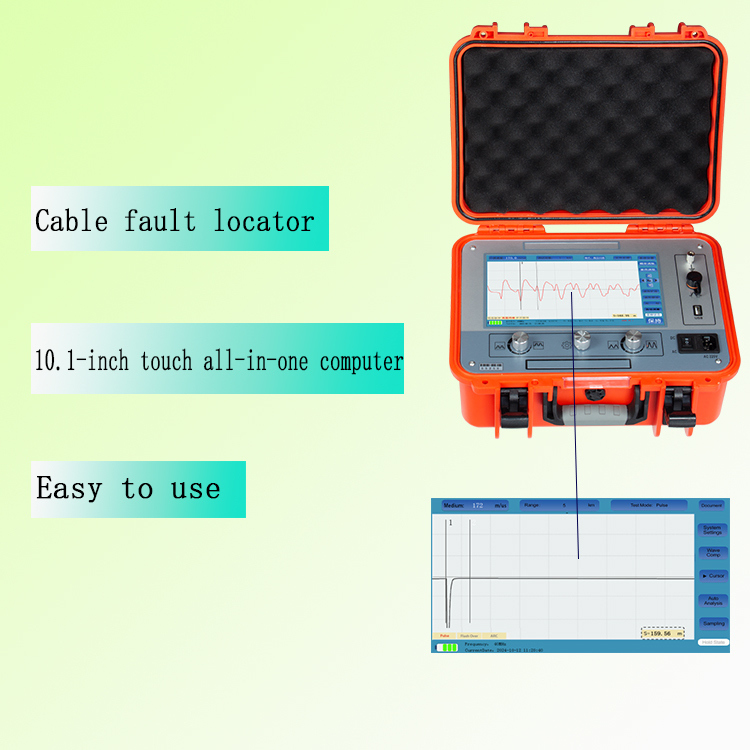

The cable fault tester is equipped with an industrial-grade 10.1-inch touch-integrated computer, a user-friendly software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, ensuring stability, reliability, and ease of use. This specialized instrument is used for measuring and analyzing the status and fault distance of power cables. It leverages modern electronic and computer technologies to achieve signal filtering, acquisition, data processing, graphic display, and graphic analysis, including cable speed measurement, cable length test, and cable fault distance test.
Features
• 10.1-inch full-color TFT touch display;
• Embedded system, safe, stable and simple display and operation mode;
• With the function of testing cable wave speed, cable length and fault distance;
• Fully automatic continuous sampling, waveform capture at all times, timely and accurate.
• Equipped with automatic test range setting, automatic waveform analysis and display of test distance.
• Full English menu, two operation methods of touch and coded buttons, simple, fast and reliable.
• Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, the waveform display is smooth and easy to interpret.
Technical indicators
| Sampling frequency |
80MHz |
| Low voltage pulse amplitude |
100V±15% |
| Ranging range |
≥65km |
| Test range |
300m/1km/5km/25km/65km |
| Pulse width |
0.125uS/0.50uS/2.50uS/7.25uS/10.0uS |
| Minimum resolution |
0.1m |
| Test blind area |
≤20m |
| Measurement error |
≤±(0.5%×L+1m), L is the cable length |
| Power supply mode |
charging AC110V~240V, 50Hz/60Hz |
| Volume and weight |
L358mm×W284mm×H168mm-4.7kg |
| Working conditions |
Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg |
Packing list
