Cable Fault Locator
>

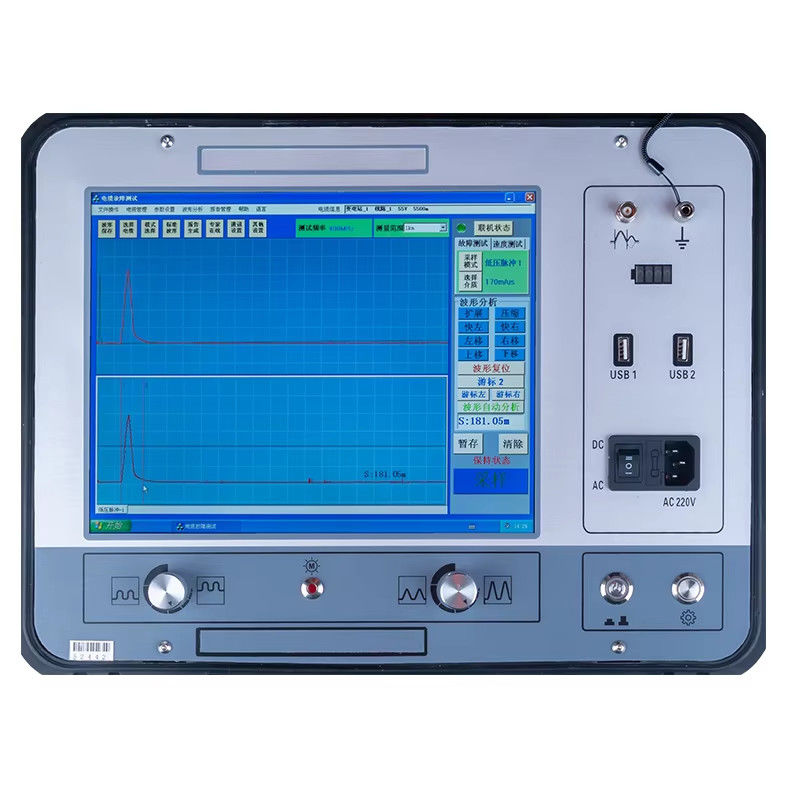

CE Certified Cable Fault Locator The Ultimate Solution for Different Sections
CE Certified Cable Fault Locator The Ultimate Solution for Different Sections
  • CE Certified Cable Fault Locator The Ultimate Solution for Different Sections
  • CE Certified Cable Fault Locator The Ultimate Solution for Different Sections
  • CE Certified Cable Fault Locator The Ultimate Solution for Different Sections

CE Certified Cable Fault Locator The Ultimate Solution for Different Sections

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE ISO
Model Number: XHGG501A
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE ISO
Model Number:
XHGG501A
Function:
Cable Fault Distance Test
Test Method:
Low Voltage Pulse Method, High Voltage Flashover Method
Measuring Distance:
≥60km
Pulse Amplitude:
400Vpp
Pulse Width:
Adaptive
Reading Resolution:
0.5m
Sampling Speed:
50/100/200/400MHz
Display:
12.1 Inch Touch Screen
Certificate:
CE
Highlight:

High Light

Highlight:

Different Sections Cable Fault Locator

,

CE Certified Cable Fault Locator

Trading Information
Minimum Order Quantity:
1 Set
Packaging Details:
Wooden box packaging
Delivery Time:
5-8 Work days
Payment Terms:
T/T
Product Description

Product Description

XHGG501A is designed for underground power cable fault pre-locating, to provide quick accurate and safe measurement solution.
Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault. Great for KV substation, civil power supply system and power energy sources applications.

* Accurate and rapid detection of the primary insulation cable fault and sheath fault below 220kV, calibrate cable length; accurate detection of cable laying trend and depth.System components XHGG series flash cable fault tester, the core part of the whole unit, mainly for the coarse testing of insulation fault in the EHV cable.
* XHDD series cable fault locator is used to pinpoint the main EHV cable insulation failure. XHLJ series cable path analyzer (referred to as: Path instrument) is used to find direction and depth of buried cables.
* High voltage equipment discharge sampler, high voltage test equipment, energy storage capacitors, professional test lines
* Cooperated with flash tester to do coarse testing; with cable fault locator to pinpoint the cable fault point
* Measure the power cable of different sections, different media of various materials, Coaxial cable, Street light cables and short circuit, open circuit short line fault of the low resistivity under ground wire. Superior cable management system, automatically generate test reports.
CE Certified Cable Fault Locator The Ultimate Solution for Different Sections 0

CE Certified Cable Fault Locator The Ultimate Solution for Different Sections 1
Sampling speed 50/100/200/400MHz
Measuring method flashover sampling method,low voltage impulse method
Measuring distance ≥60km
Pulse amplitude 400Vpp
Pulse width adaptive
Reading resolution 0.5m
Measurement accuracy rough measurement error: ±10m (absolute value) or 1% (relative value)
