Cable Fault Locator
>
Underground Cable Pipe Location Electromagnetic Induction Principle

Underground Cable Pipe Location Electromagnetic Induction Principle

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE ISO
Model Number: XHLJ504
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE ISO
Model Number:
XHLJ504
Product Name:
Cable Fault Pathfinder
Output Frequency:
Audio Frequency
Output Signal:
Intermittent, 0 ~ 50Vpp
Working Power Supply:
220V (110%) 50Hz (15%)
Output Power:
100W
Output Current:
0 ~ 2A
Highlight:

High Light

Highlight:

electromagnetic cable fault locator

,

underground pipe detection tool

,

cable locator with induction technology

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
Wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description

XHLJ504

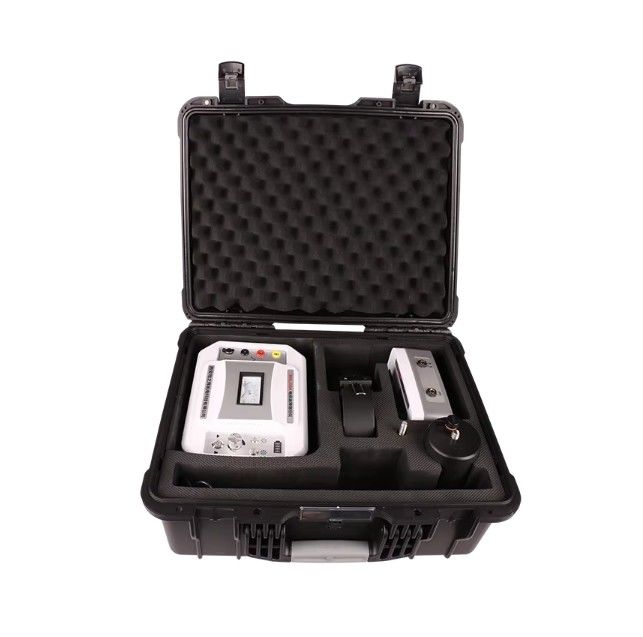

The XHLJ504 cable pipe locator is composed of a high-power path signal generator(transmitter) and receiver required for detecting buried cable paths.
The basic principle of the cable path meter is to use a path signal generator (ie, the path meter signal transmitting host) to input a path pulse signal into the cable under test, thereby generating electromagnetic waves, and then receiving them with a probe, and the receiver amplifies the received signal. After processing, the output is sent to the earphone and the pointer meter.
This cable route tracer judges the buried path and depth of the cable according to the sound peaks, sound valleys and the deflection degree of the pointer meter in the earphone.

Multi-function The cable path receiver is used in connection with probes and headphones, etc., and can be used as a cable fault pinpointer.
Underground Cable Pipe Location Electromagnetic Induction Principle
Technical Parameters
Transmitter
Output signal 15kHz intermittent
Output power 100W
Output current 0~2A
Working power 220V (1±10%) 50Hz (1±5%);
Receiver
Magnification 500,000 times
Detection accuracy ±0.2m
Output impedance 350Ω
Working power supply two standard 9V batteries
Quiescent current <10mA

Features
1. Using the traditional electromagnetic induction principle, strong anti-interference ability.
2. With over-current and short-circuit protection functions, it is safe and reliable.
3. High power output, not limited by cable length, open circuit can also find a path.
4. The output is steplessly adjustable, suitable for various test sites, with strong adaptability.
5. Super strong magnification, the detection depth is greater than 10 meters.
6. Ultra-low power consumption design, the quiescent current is less than 10mA.
7. The design of the analog meter, the signal strength and trend are clear at a glance.
8. The zero level can be adjusted arbitrarily, which is suitable for all kinds of strong and weak scenes.
