12kV Low Voltage Surge Generator for Cable Fault Testing

Name: 12kV Low Voltage Surge Generator for Cable Fault Testing
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV515-12L
Price: 15000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHV515-12L

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHV515-12L

Highlight:

High Light

Highlight:

12kV surge generator for cable testing

low voltage surge generator

cable fault testing surge generator

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 Work days

Payment Terms:

T/T

Product Description

High Voltage Partial Pressure Low Voltage Surge Generator for Low-Voltage Cable Fault

Product Overview

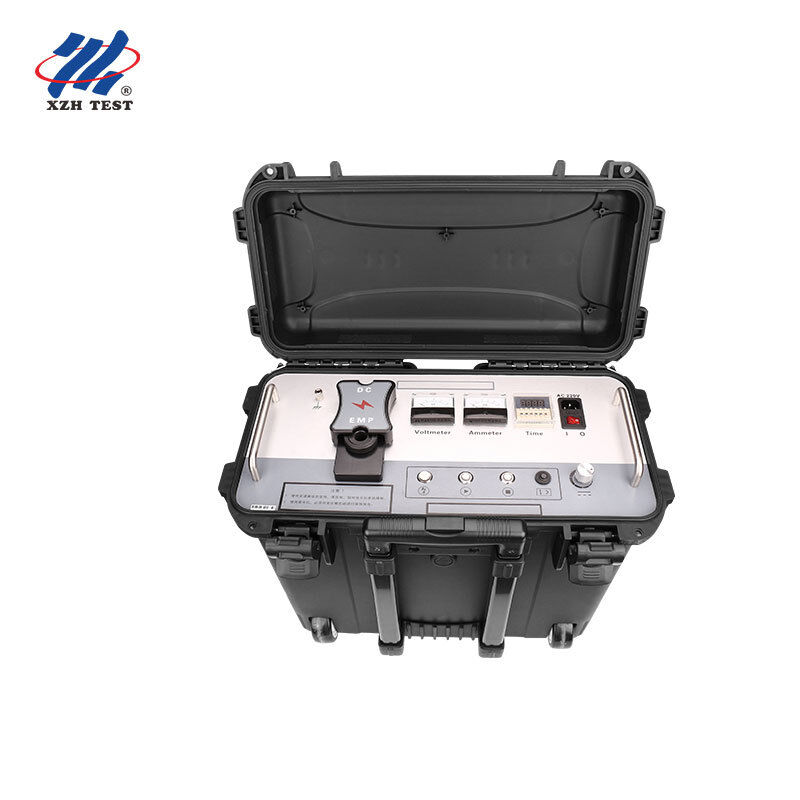

The XHHV512-12L low voltage pulse generator is a portable integrated device designed for shock discharge during low-voltage cable fault testing. Featuring humanized design and high-precision components, this generator offers easy operation, lightweight construction, and excellent portability.

Key Features

Impulse voltage range: 0-12kV (optional)
High voltage partial pressure: 2.5 class
Built-in 12μF capacitor with discharge power up to 864J
Negative polarity output voltage
250W peak impact power
Comprehensive safety features including over-temperature (65°C) and over-current protection
Versatile power options: AC 220V±10%/50Hz±2Hz (60Hz customizable)
Wide operating temperature range: -20°C to +50°C

Panel Functions

Safety ground: Must be reliably connected to prevent electric shock
High-voltage ground: Essential for preventing high-voltage leakage
Sampling ground: Negative terminal for pulse energy storage capacitor
Discharge button: Manual discharge control (max 1s press duration)
High voltage start button: Initiates high voltage output
High-voltage stop button: Emergency cutoff for high voltage
Over-current protection switch: Activates protection circuitry
Voltage adjustment: Fine-tunes output voltage
Power switch: Main system power control
Fuse holder: AC 220V power supply protection
Power socket: AC 220V connection port
Time setting: Adjusts discharge time interval
Ammeter: High voltage side current indication
Voltmeter: kV output voltage display
High-voltage output (EMP): Connection for impact discharge
High voltage output (DC): Connection for DC withstand voltage

Technical Specifications

Impact high voltage	0~12kV
High voltage partial pressure	2.5 level
Built-in capacitor	12μF
Output voltage polarity	Negative polarity
Impact power	250W@peak
Working mode	Selectable/adjustable impulse rate or single shot
Cable length	High-voltage output: 2m, Ground: 3m, Power: 1.8m
Minimum DC output current	30mA at 12kV
Over temperature protection	65°C
Over current protection	8mA (more than 3 seconds)
Dimensions (mm)	540L × 300W × 450H
Weight	≤ 25kg
Power supply	AC220V±15%, 50Hz±2Hz (60Hz)
Operating temperature	-20°C to +60°C

Package Contents
