XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester
XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester
  • XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester
  • XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester
  • XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester
  • XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester

XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester

Product Details:
Place of Origin: China shanxi
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHXC205
Detail Information
Place of Origin:
China shanxi
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHXC205
Highlight:

High Light

Highlight:

power transformer degaussing machine

,

DC resistance tester transformer

,

cable fault locator transformer

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description
High-Performance Cable Fault Locator for Power Transformer Degassing and Resistance Measurement

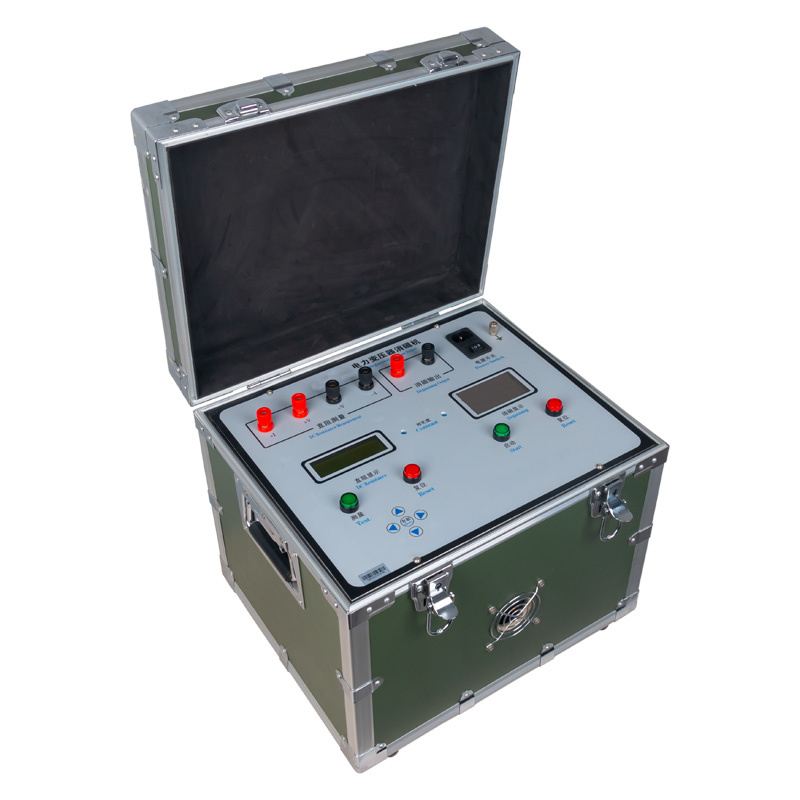

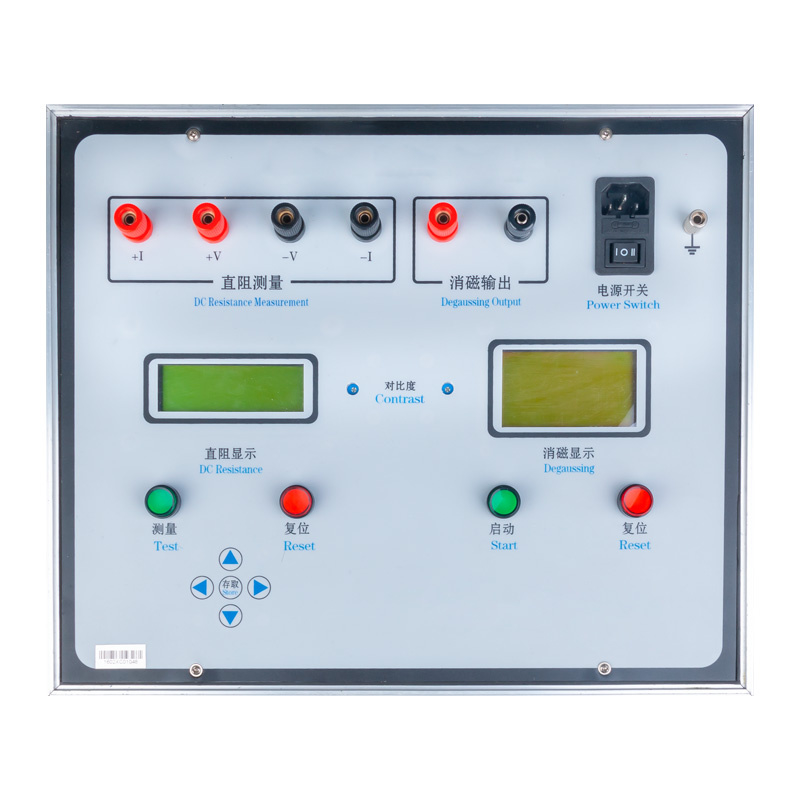

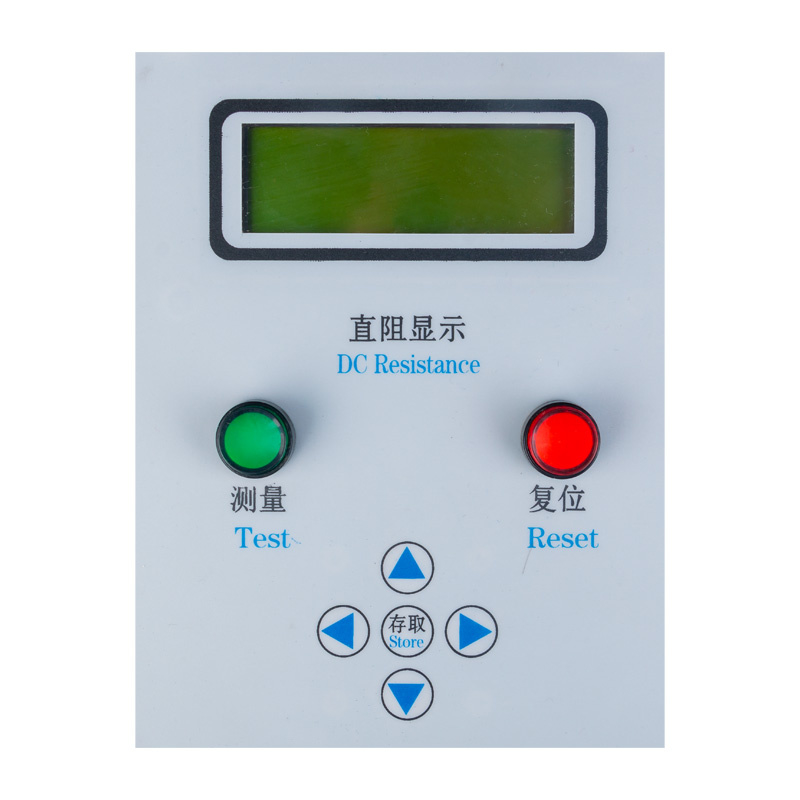

The XHXC205 Power Transformer Degaussing Machine combines the functionality of a power transformer mutual inductor degaussing instrument with a DC resistance tester. This integrated solution performs both conventional DC resistance testing and comprehensive degaussing operations.

XHXC205 Power Transformer Degaussing Machine with DC Resistance Tester 0
Key Features
  • Combined degaussing instrument and DC resistance tester in one unit
  • Includes all parameters and functions of models 105 and 105A
  • Five current voltage settings for versatile testing applications
  • High-precision measurements with ±0.2% accuracy
Technical Specifications
Current Settings: 20A/10A/5A/1A/100mA (five gears)
Measurement Ranges:
• 100mA: 1Ω-200Ω
• 1A: 100mΩ-20Ω
• 5A: 2mΩ-4Ω
• 10A: 500μΩ-2Ω
• 20A: 200μΩ-1Ω
Accuracy: ± (0.2% reading + 2 digits)
Resolution: 0.1μΩ
Operating Temperature: -10°C to 50°C
Humidity: ≤85% RH
Power Supply: AC 220V±10%, 50Hz±1Hz
