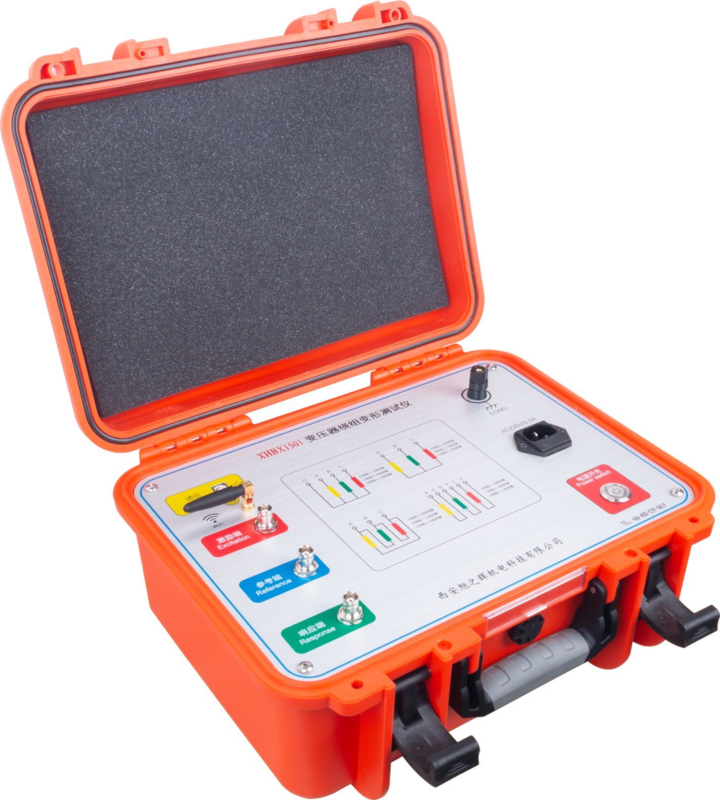

XHBX1501 Transformer Winding Deformation Tester
The XHBX1501 Transformer Winding Deformation Tester utilizes advanced Frequency Response Analysis (FRA) technology to accurately diagnose internal transformer faults. This professional-grade equipment quantifies winding parameter responses across different frequency domains, enabling precise assessment of winding deformation severity and determining whether transformer overhaul is required.
XHBX1501 Transformer Winding Deformation Tester with FRA Technology 0
Technical Specifications
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz - 2MHz
Amplitude Test Range -100dB to 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Overall Weight 10KG
Instrument Dimensions 310×400×330mm (aluminum case)
Scanning Frequency Accuracy 0.005%
Key Features
  1. High-speed microprocessor control with advanced DDS digital frequency sweeping technology (USA)
  2. Dual communication options: USB port and optional wireless Bluetooth
  3. Precisely diagnoses winding faults including twisting, bulging, displacement, tilting, and inter-turn short-circuits
  4. High-speed dual-channel 16-bit A/D sampling system
  5. Software-adjustable signal output amplitude (±10V peak)
  6. Automatic test result analysis with Word document generation
  7. Dual measurement systems: linear sweep and segmented sweep frequency
  8. Flexible frequency axis display (linear or logarithmic indexing)
  9. Comprehensive data analysis with horizontal (A-B-C phase) and longitudinal (historical comparison) evaluation
  10. Fully compliant with DL/T911-2004 power standard requirements
Diagnostic Capabilities
The XHBX1501 provides comprehensive analysis of transformer winding conditions through advanced frequency response measurement. The system compares current measurements against baseline data to identify deformation patterns, enabling maintenance teams to make informed decisions about transformer condition and necessary repairs.
