Transformer Tester
>
Transformer Winding Deformation Tester with FRA Technology
Transformer Winding Deformation Tester with FRA Technology
  • Transformer Winding Deformation Tester with FRA Technology
  • Transformer Winding Deformation Tester with FRA Technology
  • Transformer Winding Deformation Tester with FRA Technology

Transformer Winding Deformation Tester with FRA Technology

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHBX1501
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHBX1501
Highlight:

High Light

Highlight:

Transformer winding tester FRA technology

,

Transformer deformation tester diagnostic tool

,

FRA winding tester for transformers

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description
Advanced Cable Fault Locator for Transformer Internal Winding Deformation Testing

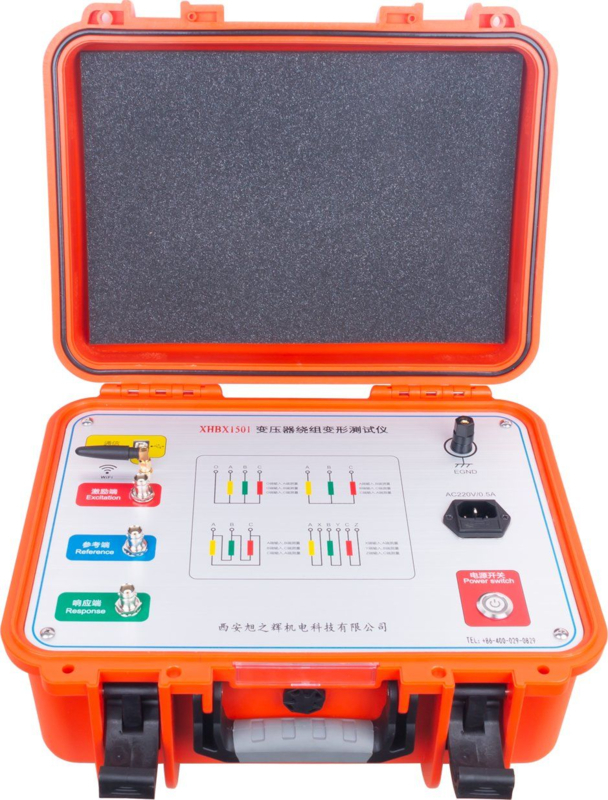

The XHBX1501 Transformer Winding Deformation Tester utilizes advanced frequency response analysis (FRA) technology to accurately assess transformer internal winding conditions. By measuring characteristic parameters across different frequency domains, this instrument quantifies winding response changes to determine deformation severity, enabling precise evaluation of whether transformers require maintenance or repair.
Transformer Winding Deformation Tester with FRA Technology 0
Technical Specifications
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz - 2MHz
Amplitude Test Range -100dB - 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Overall Weight 10KG
Instrument Dimensions 310×400×330mm (aluminum case)
Scanning Frequency Accuracy 0.005%
Key Features
High-speed microprocessor control with advanced integration
Dual communication options: USB port and optional Bluetooth connectivity
Precision DDS digital frequency sweeping technology for accurate fault diagnosis
High-speed dual-channel 16-bit A/D sampling system
Software-adjustable signal output amplitude (±10V peak)
Automatic test result analysis with Word document generation
Dual measurement systems: linear and segmented sweep frequency
Flexible frequency display options (linear or logarithmic indexing)
Comprehensive data analysis with phase comparison capabilities
Full compliance with DL/T911-2004 power industry standards
Diagnostic Capabilities
The instrument accurately identifies various winding deformations including twisting, bulging, displacement, tilting, inter-turn short circuits, and phase-to-phase contact faults. Its advanced analysis system enables both horizontal comparison between phases (A-B-C) and longitudinal comparison of current data against baseline measurements.
