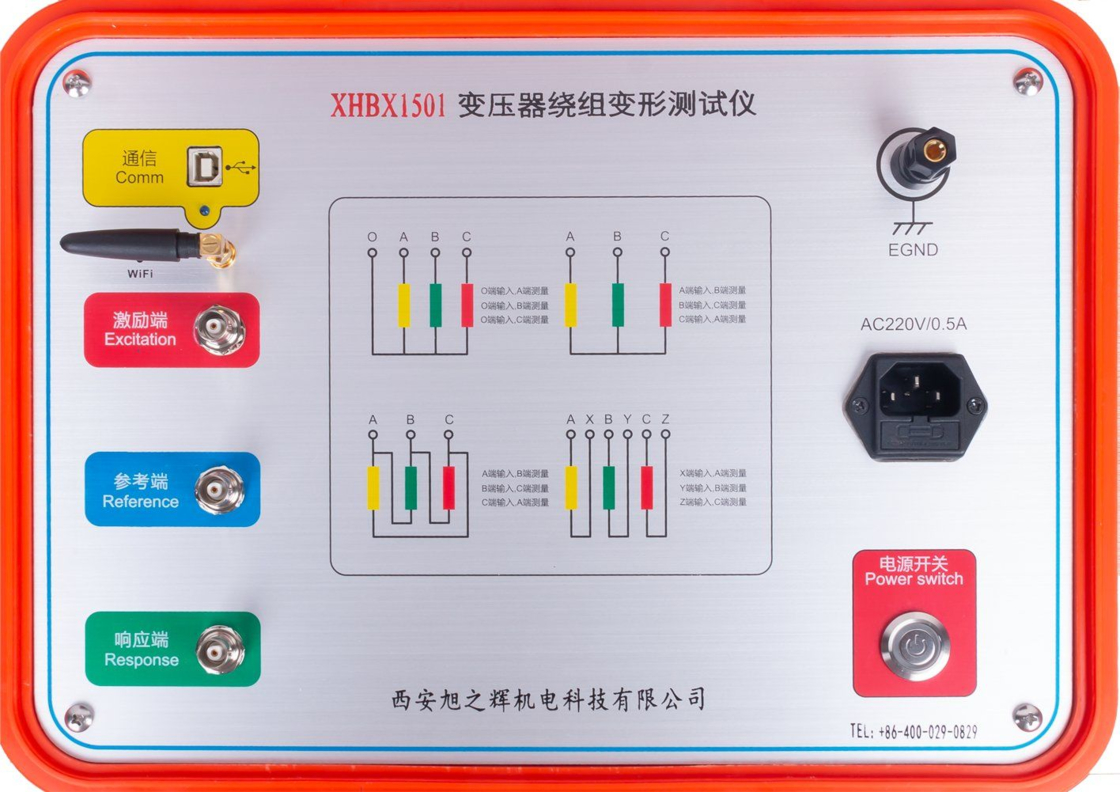

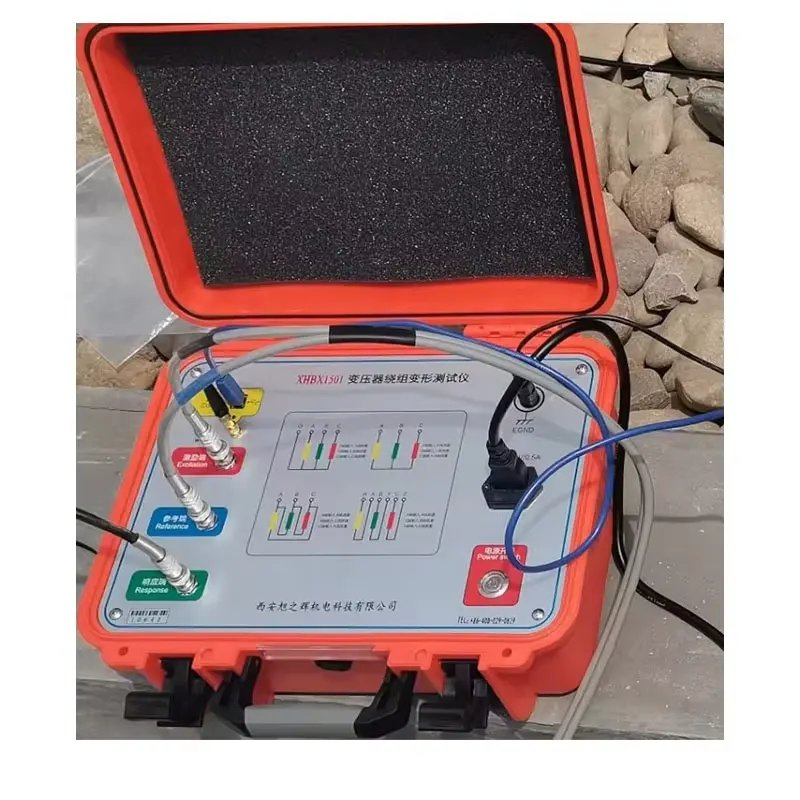

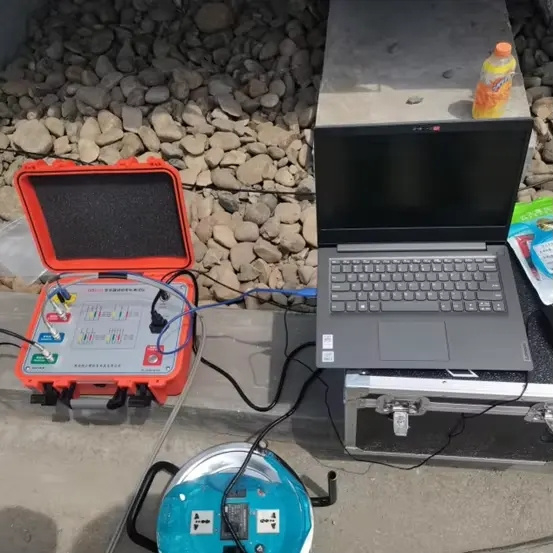

XHBX1501 Transformer Winding Deformation Tester with FRA Technology
XHBX1501 Transformer Winding Deformation Tester with FRA Technology
  • XHBX1501 Transformer Winding Deformation Tester with FRA Technology

XHBX1501 Transformer Winding Deformation Tester with FRA Technology

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHBX1501
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHBX1501
Highlight:

High Light

Highlight:

Transformer winding deformation tester

,

FRA technology winding tester

,

Cable fault locator tester

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description
Cable Fault Locator for Transformer Winding Deformation Testing
The XHBX1501 Transformer Winding Deformation Tester utilizes advanced Frequency Response Analysis (FRA) technology to accurately assess transformer winding conditions. By measuring characteristic parameters and quantifying response changes across different frequency domains, this instrument provides precise diagnostics for internal transformer faults including deformation, displacement, and short circuits.
Technical Specifications
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz - 2MHz
Amplitude Test Range -100dB to 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Instrument Dimensions 310×400×330mm (aluminum case)
Scanning Frequency Accuracy 0.005%
Key Features
  • High-speed microprocessor control with advanced DDS digital frequency sweeping technology (USA)
  • Dual communication options: USB port and optional wireless Bluetooth
  • High-precision 16-bit A/D sampling for accurate waveform analysis
  • Software-adjustable signal output (±10V peak)
  • Comprehensive fault detection including twisting, bulging, displacement, tilting, and short circuits
  • Dual measurement systems: linear sweep and segmented sweep frequency
  • Automatic data analysis with horizontal (A-B-C phase) and longitudinal (historical comparison) evaluation
  • Automatic Word document generation for test reports
  • Compliant with DL/T911-2004 power standard for winding deformation analysis
  • Flexible frequency display options: linear or logarithmic indexing
  • Intuitive software interface with clear graphical results
Diagnostic Capabilities
The XHBX1501 provides definitive assessment of transformer winding conditions, enabling maintenance teams to determine whether equipment requires immediate repair. The system's advanced analysis compares current measurements against baseline data to identify even subtle changes in winding geometry that indicate potential failure points.
