Transformer Tester
>

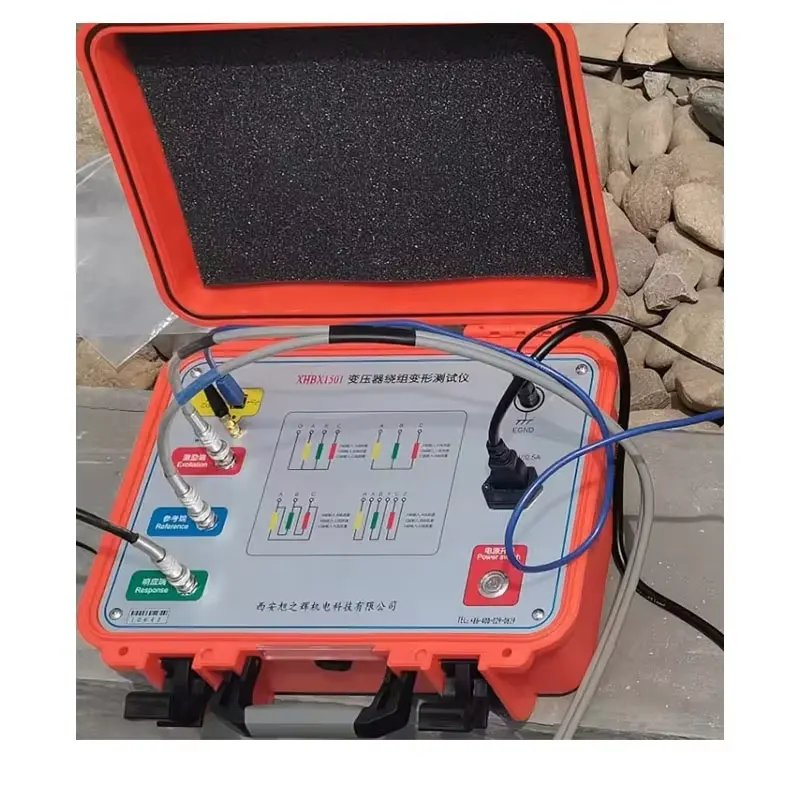

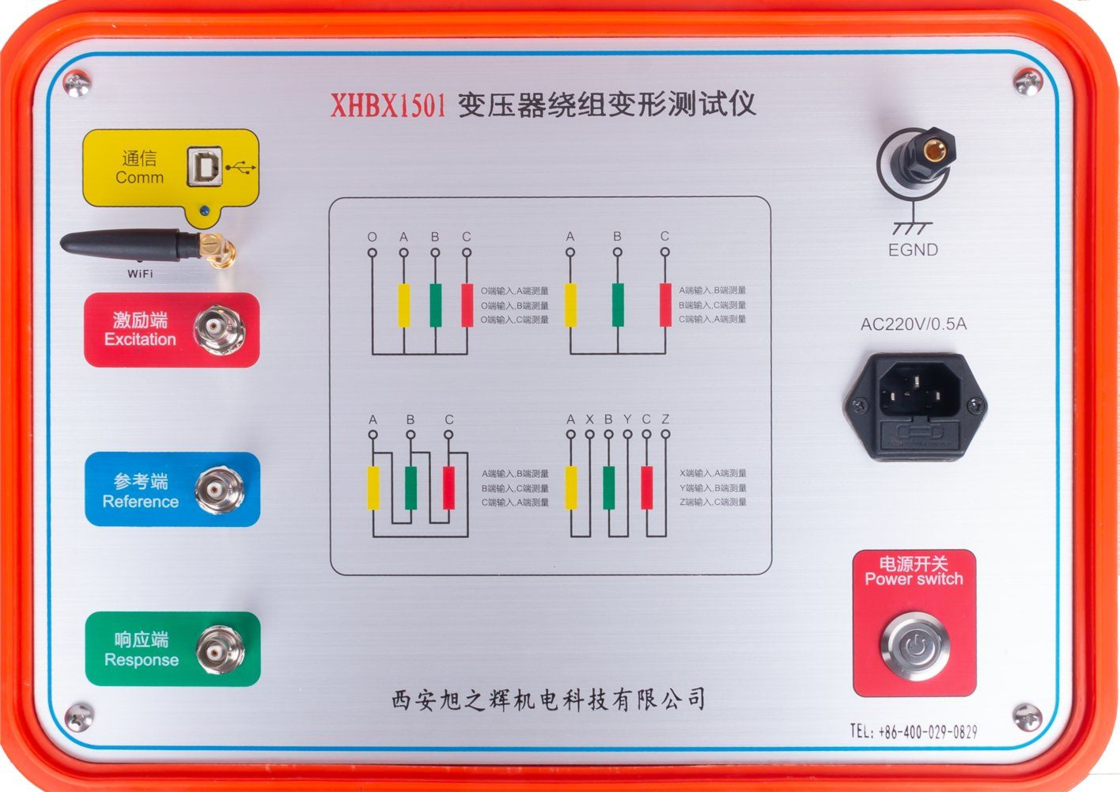

XHBX1501 Transformer Winding Deformation Tester with FRA Technology
XHBX1501 Transformer Winding Deformation Tester with FRA Technology
  • XHBX1501 Transformer Winding Deformation Tester with FRA Technology
  • XHBX1501 Transformer Winding Deformation Tester with FRA Technology

XHBX1501 Transformer Winding Deformation Tester with FRA Technology

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHBX1501
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHBX1501
Highlight:

High Light

Highlight:

Transformer winding deformation tester

,

FRA technology transformer tester

,

Transformer tester with FRA

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description
Transformer Tester XHBX1501 - Internal Fault Detection FRA Method
The XHBX1501 transformer winding deformation tester utilizes advanced Frequency Response Analysis (FRA) technology to accurately diagnose internal transformer faults. By measuring characteristic parameters of transformer windings across different frequency domains, this instrument quantifies response changes to determine winding deformation severity. The system provides clear diagnostic data to assess whether transformers require maintenance or overhaul.
Key Specifications
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz - 2MHz
Amplitude Test Range -100dB - 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Weight 10KG
Dimensions 310×400×330mm (aluminum case)
Scanning Frequency Accuracy 0.005%
Advanced Features
  • High-speed microprocessor control with superior integration
  • Dual communication options: USB port and optional wireless Bluetooth
  • DDS digital high-speed frequency sweeping technology (USA) for precise fault diagnosis including:
    • Winding twisting and bulging
    • Displacement and tilting
    • Inter-turn short-circuit deformation
    • Phase-to-phase contact short-circuit
  • High-speed dual-channel 16-bit A/D sampling
  • Software-adjustable signal output (±10V peak)
  • Automatic test analysis with Word document generation
  • Dual measurement systems: linear and segmented sweep frequency
  • Flexible frequency indexing (linear or logarithmic)
  • Comprehensive data analysis:
    • Horizontal comparison (A-B-C phase similarities)
    • Longitudinal comparison (current vs. original data)
  • Full compliance with DL/T911-2004 power standard requirements
Diagnostic Capabilities
The XHBX1501 provides quantitative analysis of winding parameter response changes across frequency domains. The system evaluates the magnitude, frequency response variation, and regional changes to determine winding deformation severity. This enables accurate assessment of transformer condition and maintenance requirements.
