Transformer Tester
>
Digital Partial Discharge Tester for Power Equipment Insulation Analysis
Digital Partial Discharge Tester for Power Equipment Insulation Analysis
  • Digital Partial Discharge Tester for Power Equipment Insulation Analysis

Digital Partial Discharge Tester for Power Equipment Insulation Analysis

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJF801S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJF801S
Highlight:

High Light

Highlight:

digital partial discharge tester

,

power equipment insulation analyzer

,

transformer insulation testing device

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 Work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Digital Partial Discharge Tester High Accuracy Cable Fault Locator for Power Equipment

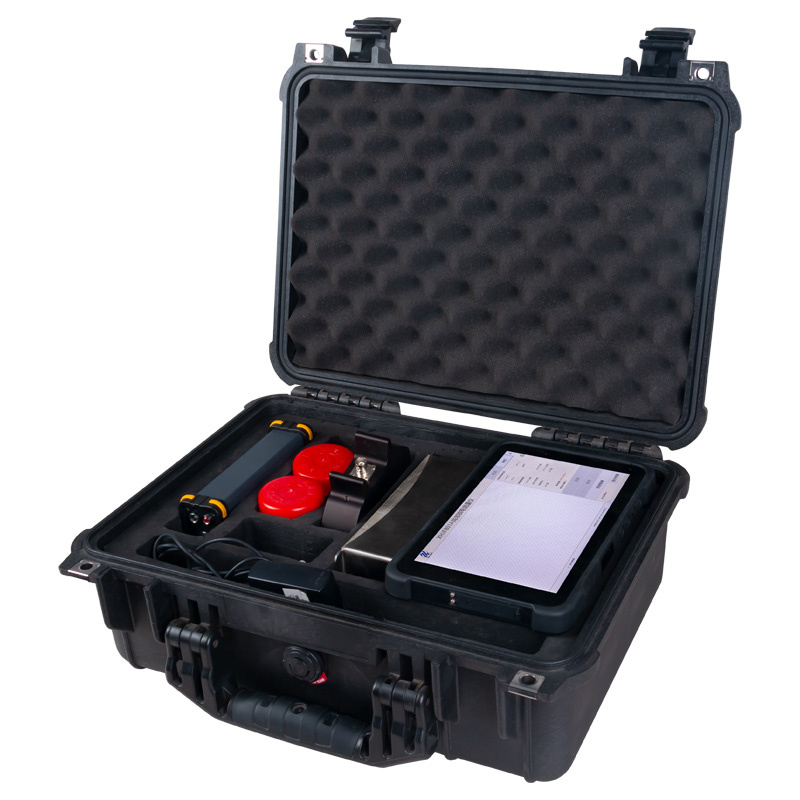

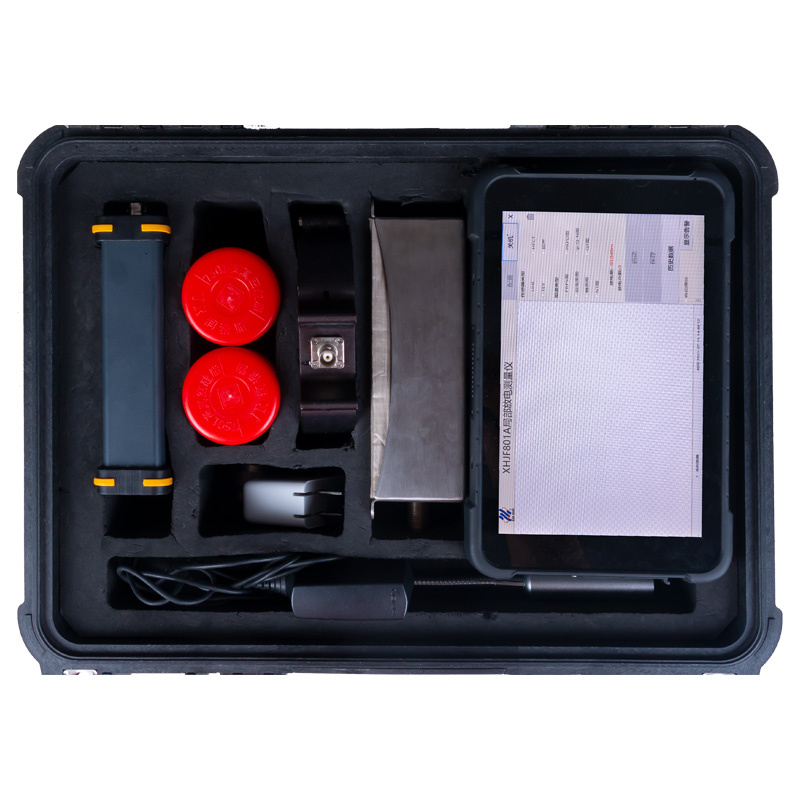

The XHJF801S digital partial discharge tester (PD) is a next-generation high-performance digital measurement and analysis instrument. This dual-channel embedded system features a TFT touch screen interface and delivers stable, reliable operation with minimal failure rates.
Main Features
  • Specialized instrument for measuring and analyzing insulation performance of power equipment
  • Incorporates modern electronic and computer technologies for automated signal processing
  • Performs signal amplification, filtering, data acquisition, and processing automatically
  • Generates test reports and graphical displays for comprehensive partial discharge measurement
Technical Specifications
Parameter Specification
Channels 2 electrical signal interfaces, 1 external synchronization interface
Sampling rate 0.5M, 1M, 2.5M, 5M, 10M, 20M (selectable)
Sampling accuracy 12bit
Range switching 60dB, 40dB, 20dB, 0dB, -20dB (5 ranges total)
Band range 20k-100kHz, 80k-200kHz, 40k-300kHz
Range nonlinearity error 5%
Sensitivity 0.1pC
Testable capacitance range 6pF ~ 250μF
Test power frequency range 50 ~ 400Hz
Display 7" TFT true color touch LCD (800×480 resolution)
Physical storage 256MB DDR2, 16G SD card (expandable to 32G)
Interfaces RS232 / USB / electrical signal / SMA / SD card / network / ground
CPU 533MHz, WINCE6.0 OS
Dimensions 350mm × 245mm × 175mm
Weight 5.8kg

Digital Partial Discharge Tester for Power Equipment Insulation Analysis 0
