XHJF801S Digital Partial Discharge Tester Dual Channel System
XHJF801S Digital Partial Discharge Tester Dual Channel System
  • XHJF801S Digital Partial Discharge Tester Dual Channel System
  • XHJF801S Digital Partial Discharge Tester Dual Channel System
  • XHJF801S Digital Partial Discharge Tester Dual Channel System

XHJF801S Digital Partial Discharge Tester Dual Channel System

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJF801S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJF801S
Highlight:

High Light

Highlight:

digital partial discharge tester

,

dual channel transformer tester

,

XHJF801S partial discharge system

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 Work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
XHJF801S Digital Partial Discharge Tester

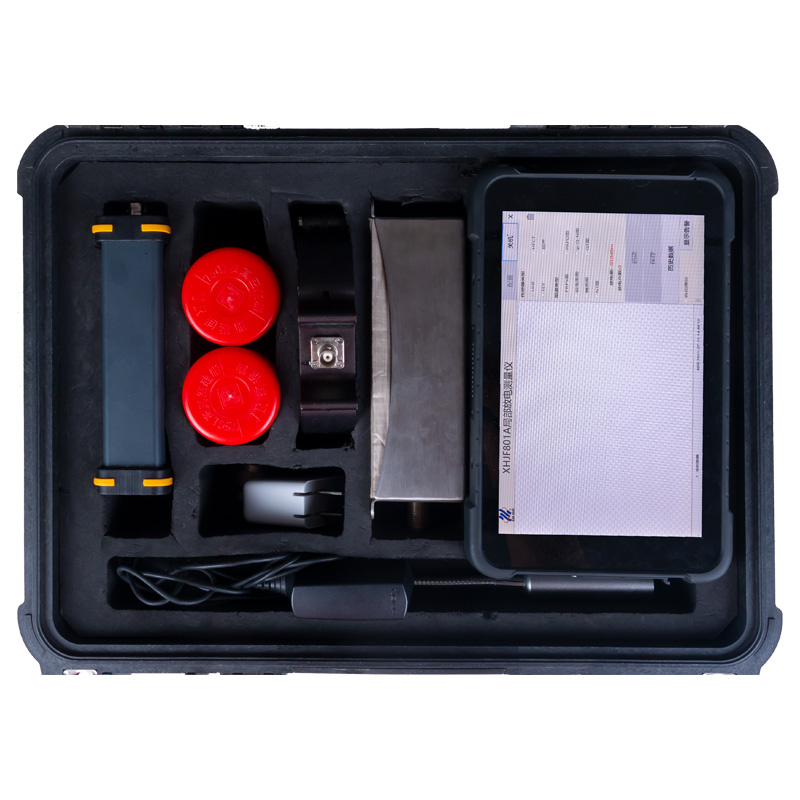

XHJF801S Digital Partial Discharge Tester Dual Channel System 0
The XHJF801S digital partial discharge tester is a high-performance measurement and analysis instrument featuring dual-channel embedded system with TFT touch screen. This reliable system offers stable operation with minimal failure rates.
Main Features
  • Specialized instrument for measuring and analyzing insulation performance of power equipment
  • Incorporates modern electronic and computer technology for comprehensive signal processing
  • Automates signal amplification, filtering, data acquisition, processing, and report generation
  • Complete partial discharge measurement solution with graphical display capabilities
Technical Specifications
Parameter Specification
Number of channels 2 electrical signal interfaces, one external synchronization interface
Sampling rate 0.5M, 1M, 2.5M, 5M, 10M, 20M optional
Sampling accuracy 12bit
Range switching 60dB, 40dB, 20dB, 0dB, -20dB (5 files total)
Band range 20k-100kHz, 80k-200kHz, 40k-300kHz
Range nonlinearity error 5%
Sensitivity 0.1pC
Testable product capacitance range 6pF ~ 250μF
Test power frequency range 50 ~ 400Hz
Display 7" TFT true color touch LCD (800×480 resolution)
Physical storage 256MB DDR2, expandable SD card storage (16G standard, upgradable to 32G)
Interfaces RS232 / USB / electrical signal / SMA / SD card slot / network port / ground button
CPU 533MHz; WINCE6.0 OS; storage temp: -20°C to 60°C
Dimensions 350mm × 245mm × 175mm
Weight 5.8kg
