Digital Partial Discharge Tester for Power Equipment Insulation
Digital Partial Discharge Tester for Power Equipment Insulation
  • Digital Partial Discharge Tester for Power Equipment Insulation
  • Digital Partial Discharge Tester for Power Equipment Insulation
  • Digital Partial Discharge Tester for Power Equipment Insulation

Digital Partial Discharge Tester for Power Equipment Insulation

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJF801S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJF801S
Highlight:

High Light

Highlight:

digital partial discharge tester

,

power equipment insulation tester

,

transformer insulation diagnostic tool

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 Work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
High-Performance Digital PD Measurement and Analysis Cable Fault Locator for Power Equipment

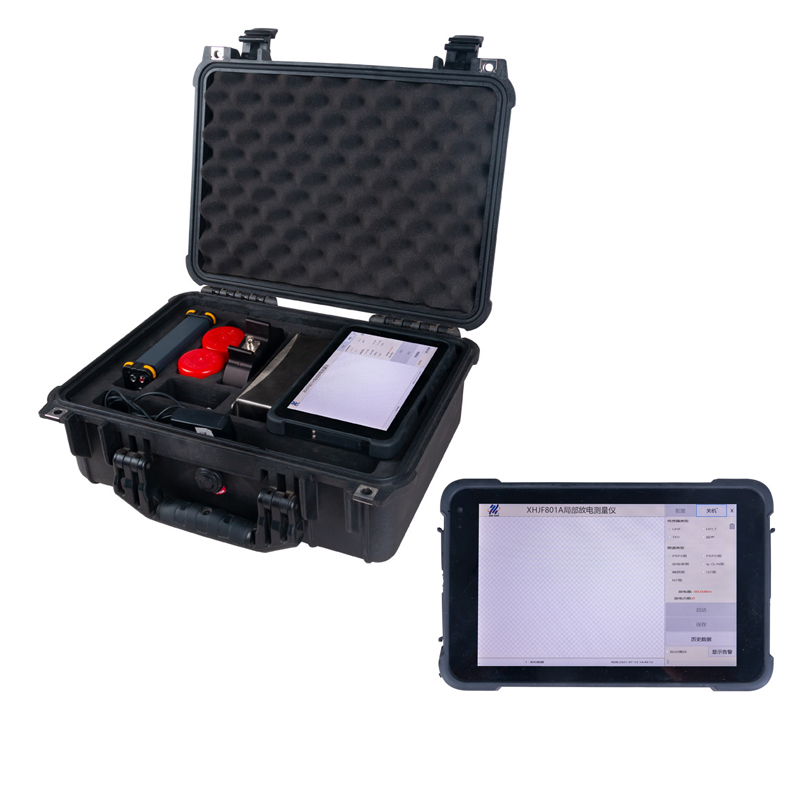

Digital Partial Discharge Tester for Power Equipment Insulation 0
The XHJF801S digital partial discharge tester (PD) represents the latest generation of high-performance measurement and analysis instruments. This dual-channel embedded system features a TFT touch screen interface and delivers stable, reliable performance with minimal failure rates.
Key Features
  • Specialized instrument for measuring and analyzing insulation performance in power equipment
  • Integrates modern electronic and computer technologies for comprehensive signal processing
  • Automates signal amplification, filtering, data acquisition, processing, and report generation
  • Complete partial discharge measurement system in a single unit
Technical Specifications
Parameter Specification
Channels 2 electrical signal interfaces, 1 external synchronization interface
Sampling Rate 0.5M, 1M, 2.5M, 5M, 10M, 20M (selectable)
Sampling Accuracy 12bit
Range Switching 60dB, 40dB, 20dB, 0dB, -20dB (5 ranges total)
Band Range 20k-100kHz, 80k-200kHz, 40k-300kHz
Range Nonlinearity Error 5%
Sensitivity 0.1pC
Testable Product Capacitance Range 6pF ~ 250μF
Test Power Frequency Range 50 ~ 400Hz
Display 7" TFT true color touch LCD (800×480 resolution)
Physical Storage 256MB DDR2, SD card storage (standard 16G, upgradable to 32G)
Interfaces RS232 / USB / electrical signal / SMA / SD card slot / network port / ground button
CPU 533MHz; WINCE6.0 OS; storage temp: -20°C to 60°C
Dimensions 350mm × 245mm × 175mm
Weight 5.8kg
