Portable Outdoor Cable Fault Locator with 10.1 Touch Screen

Name: Portable Outdoor Cable Fault Locator with 10.1 Touch Screen
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHDD503

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHDD503

Highlight:

High Light

Highlight:

portable cable fault locator with touch screen

outdoor cable fault locator 10.1 inch

touch screen cable fault detector

Trading Information

Minimum Order Quantity:

1 set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

Versatile Outdoor Cable Fault Locator

Portable outdoor-ready unit with touch screen interface and advanced surge/thump energy capabilities for accurate fault detection and location.

Key Features

10.1-inch full-color TFT touch screen with 1024×600 resolution
Embedded system for safe, stable operation with simple interface
Multiple testing methods: low-voltage pulse, high-voltage flashover, multiple pulse (8 times)
Automatic continuous sampling with real-time waveform capture
Massive storage capacity: 8,000+ low/high voltage waveforms, 250+ multiple pulse records
Built-in large-capacity lithium battery for operation without external power
Surge/Thump energy of 2,048 Joule with DC testing up to 32 kV
IP43 rated portable unit with four wheels for easy mobility

Technical Specifications

General Features

Display	10.1" industrial grade TFT color panel with LED backlight (450 cd/m²)
Operation	Single rotary knob interface with multi-touch capability
Safety Standards	CE Compliance; EN 61010, EN 50191, VDE 0104, VDE 015, DGUV 203-034
Working Conditions	-25°C to +65°C, relative humidity ≤90%

High Voltage Surge Generator

Output Voltage	0-8kV, 0-16kV, 0-32kV
Discharge Energy	2048J @ each voltage level
Burn Current	Up to 60 mA @ 32 kV, 120 mA @ 16kV, 240mA @ 8kV
Dimensions	534×444×805 mm (130kg)

TDR Cable Fault Locator

Test Methods	Low voltage pulse, Impulse current, Impulse voltage, ARC multiple pulse
Measurement Scope	≥120km with ±(0.5%×L+1m) accuracy
Minimum Resolution	0.07m

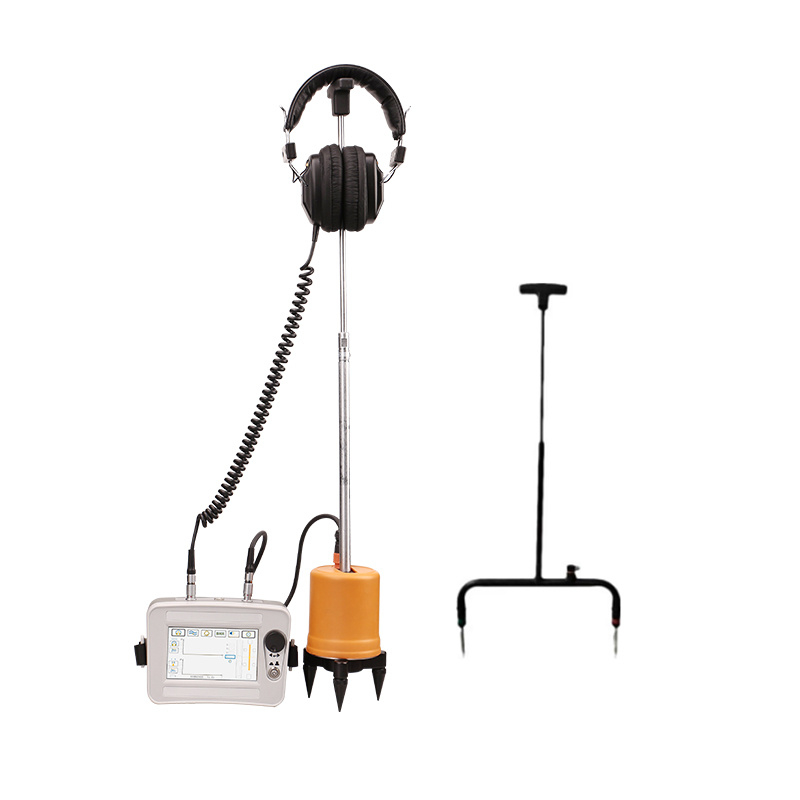

Acoustic/Magnetic Synchronous Pinpointer

Positioning Accuracy	0.1m for fixed point, path, and step voltage
Working Time	8+ hours on 4×18650 lithium batteries
Weight	Host 0.6kg; Sensor 1.4kg

Test Cables

High Voltage Output Cable	2.5mm² core, 50kV DC rating, 5m standard length
Ground Cable	16mm² main core, 5m standard length

Note: Special high voltage cables required - maintain safe distance during operation.

Pre-location Methods

ARC Multishot: Compares low/high voltage traces with 8 comparative measurements per shot
ICE/Surge Pulse: Measures current component of traveling wave after capacitor discharge
DECAY: Measures voltage component after HV DC source ignition for long cables
IFL: Intermittent Fault Locating for faults with changing characteristics
