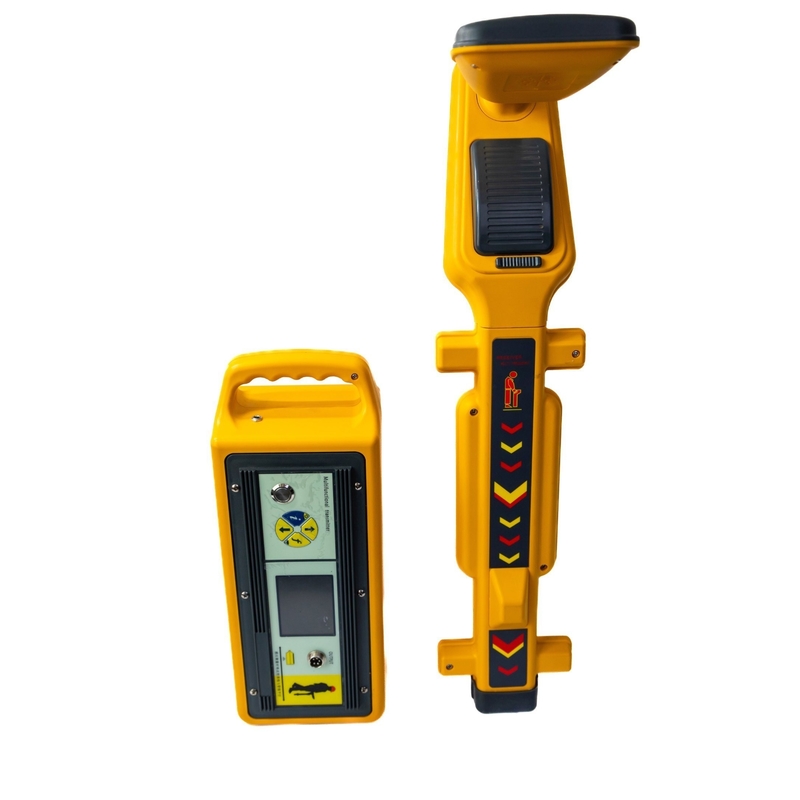

Digital Cable Route Tracer with Depth and Current Measurement

The XHGX507X cable pipe locator uses electromagnetic field signals from underground cables to locate cables, providing depth and current readings for accurate cable detection.

This device complies with Part 15 of the U.S. FCC Rules and meets the provisions of European Directive 1999/5/EC.

• Cable path search capability for both live and unlive power cables
• Current direction and phase indication functions for improved path finding accuracy
• Buried cable depth detection
• Transmitter with multiple frequency options (577Hz to 133kHz)
• Ohmmeter function for testing external continuous resistance values
• Digital display of signal strength with graphical representation
• Left/right arrows for precise pipeline location
• Compass for pipeline direction indication
• Real-time display of pipeline depth and current
• Voice prompt system to reduce operator fatigue

The transmitter serves as the signal source for this system, featuring complete functionality, high intelligence, and simple operation.

• Current output frequency
• Output power level (low, mid, high, full)
• Working mode (direct connection, coupling, induction)
• Loop current value (0-999 mA)
• Loop impedance value (00001-20000 ohms)
• Battery power status
• Stability indicator (rolling circle)

• Current receiving frequency (initial 577Hz)
• Signal strength grating display
• Three-digit signal strength indicator (00.0-99.9)
• Color compass for pipeline direction
• Depth & current measurements
• Signal gain (000-140db, auto-adjusted)
• Receiver mode indicator
• Battery level indicator
• Volume control indicator
• Left/right arrows for cable location
• Current direction and phase indication (SS frequency)

• Crest method: Narrow peaks, broad peaks, broad arrows, peaks + valleys
• Trough method: For precise positioning when no adjacent cables are present
