XHWS180 Trace Moisture Analyzer for Transformer Oil Testing

Product Details:

Certification:	ISO

Detail Information

Certification:

ISO

Model NO.:

XHWS180

Transport Package:

Wooden Box Filled With Foam Inside

Trademark:

XHWS180

Origin:

China Xi′an

Supply Ability:

1000pieces/Year

Customization:

Available

After-sales Service:

Warranty

Warranty:

1 Year

Highlight:

High Light

Highlight:

trace moisture analyzer for transformer oil

transformer oil moisture tester

XHWS180 moisture analyzer

Product Description

Trace Moisture Analyzer - The Ultimate Tool for Precise and Fast Trace Moisture Analysis

Product Specifications

Attribute	Value
Model NO.	XHWS180
Transport Package	Wooden Box Filled with Foam Inside
Trademark	XHWS180
Origin	China Xi'an
Supply Ability	1000pieces/Year
Customization	Available
After-sales Service	Warranty
Warranty	1 Year

Product Description

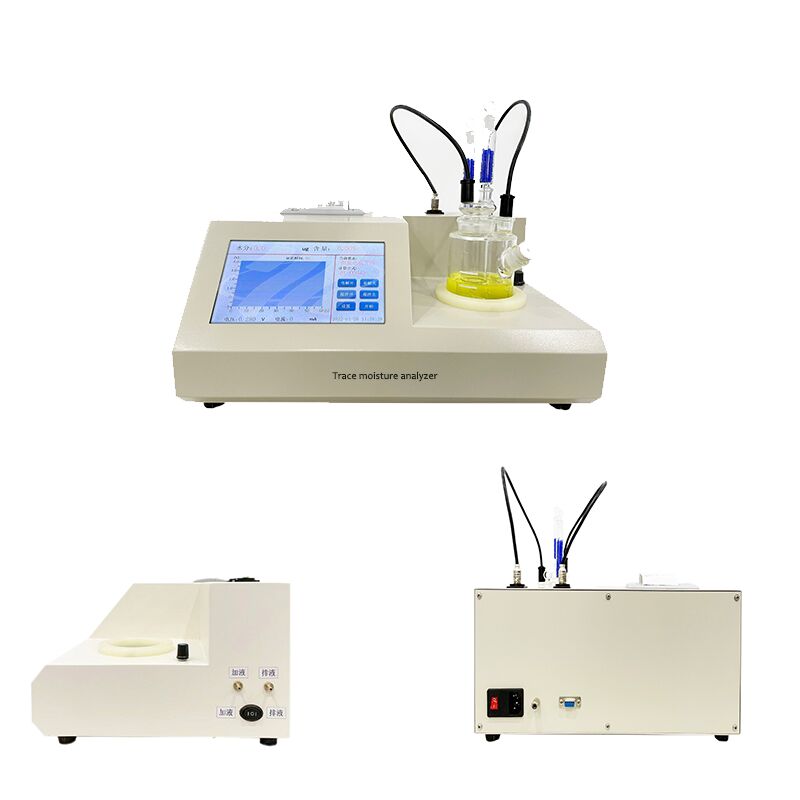

The XHWS180 trace moisture analyzer provides the most reliable method for determining trace moisture in various substances using Karl Fischer Coulometric titration. This advanced instrument features:

32-bit embedded microprocessor with mini operating system for enhanced reliability
Advanced automatic control circuitry for superior performance
Fast analysis with simple operation and high precision
Wide application in petroleum, chemical, power, railway, pharmaceutical, and environmental sectors

Technical Parameters

Parameter	Specification
Titration method	Electricity titration (Coulomb analysis)
Display	Colorful LCD touch screen
Electrolysis speed	Maximum 2200μg/s (0-400mA automatic control)
Test range	3μg ~ 100mg
Sensitive valve	0.1μg H2O
Accuracy	10μg~1000μg±3μg, ≤0.3% (1mg)
Printer	Micro Thermal Printer
Power supply	220V±10%, 50Hz
Power	< 40W
Working temperature	5~40°C
Working humidity	≤ 85%
Size	340 × 295 × 155mm
Weight	about 5.5kg

Key Features

32-bit embedded microprocessor with mini operating system for enhanced performance
Constant pressure detection for high precision and fast measurement
Color touch screen with full numeric keyboard for easy operation
Built-in calculation formulas to meet various customer needs
Mini thermal printer with time recording function
Ergonomic design for improved usability
Optimized operating software with enhanced user experience

(1) Color touch screen (2) Printer (3) Electrolysis electrode socket (4) Measuring electrode socket (5) Fixing shaft mounting hole (6) Electrolytic cell seat
