Name: Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG500
Price: 1,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China Shanxi
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGG500

Detail Information

Place of Origin:

China Shanxi

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGG500

Highlight:

High Light

Highlight:

telephone cable fault locator

low voltage cable tester

TDR wire fault detector

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

Basic Info.

Model NO.

XHGG500

Connectors

Coaxial BNC

Test Mode

Instant Test

Usage

Audio Cable Tester

Test Region

Forming Cable

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Yellow

Maximum Test Range

8km

Pulse Width

80ns-10us

N.W

2kg

Dimension

230×150×160mm

Transport Package

Wooden Case

Specification

78*44*37cm

Trademark

XZH TEST

Origin

Shaanxi

HS Code

9031809090

Production Capacity

1000 Pieces/Year

Product Description

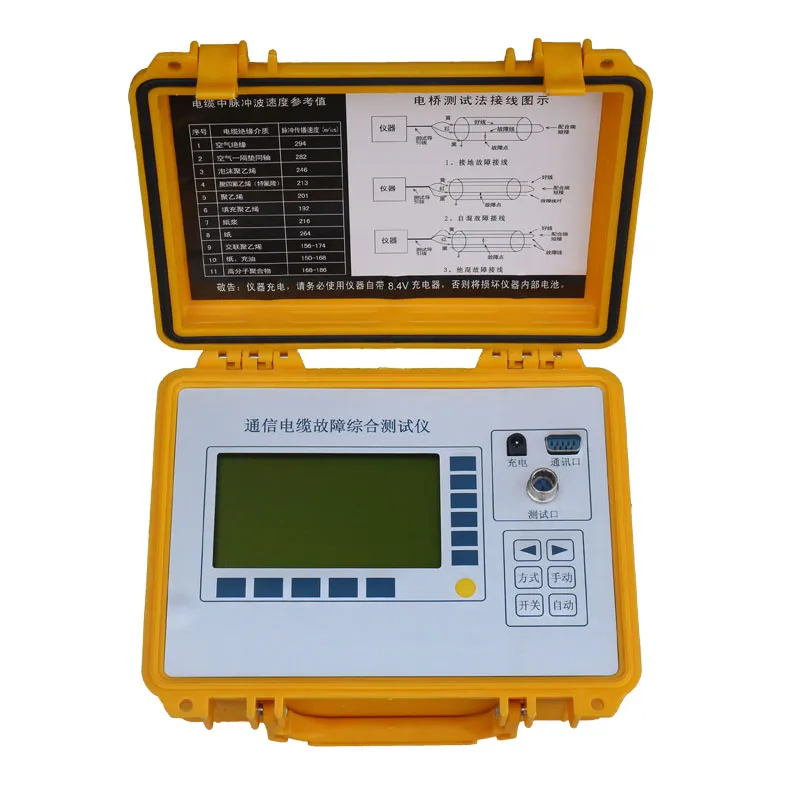

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator 0

XHGG500 completely automatic Telecom Cable Fault Locator adopts the modern microelectronic technology to develop this successful high-tech product. Combines with both pulse reflection testing and intelligent electric bridge testing for measuring the exact fault location of such as the Urban Lead cover cables, plastic cables, the broken wires of users', crossed lines, gas, bad insulation, and weak connection. It is an effective tool to reduce troubleshooting time, improve work efficiency and reduce labor intensity of line maintenance staff. It also can be used in line projects acceptance and inspection of electrical cables.

Features

Both pulse reflection testing and intelligent electric bridge testing can test broken lines, crossing lines, bad insulation and other types of faults.
Automatic testing, just press the key for one time, the fault will be found.
Manual testing function is preserved.
English menu, easy to master and use.
With mega meter and ohmmeter, enables to test insulation resistance and loop resistance.
Preserve 10 testing waveforms permanently, which are cannot lost after switch off, some parts replaces the functions of printer.
Technology of automatic gain and automatic impedance balance replaces the cumbersome potentiometer adjustment.
Background lights display supports night operation.
Rechargeable lithium battery, intelligent charge without duty.
Small dimension, light weight, portable design.

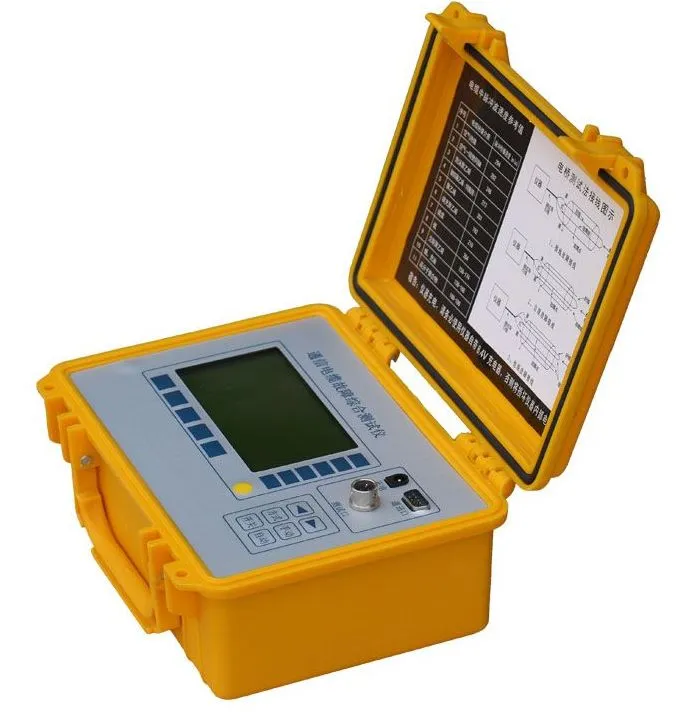

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator 1

1. Pulse reflection testing:
* The largest measuring range is 8 km, you can choose suitable measurement range according to the length of cable.
* Testing blind spot: 0 m.
* Testing resolution:1m when it is the minimum range.
8m when it is the maximum range.
* Pulse width: 80ns-10μs with automatic adjustment
* Automatic impedance balance adjustment
* Automatic and manual gain adjustment.
2. Intelligent electric bridge testing:
* Enable to test bad insulation resistance max: 100 MΩ.
* Testing accuracy:±1%×cable length
* The longest cable span: 9999m.
* It can be divided into three segments to input diameters: 0.3mm-0.99mm
3. Others

Rechargeable time	4 hours
Continued operating time	6 hours
Dimension	230×150×160mm
Weight	2kg

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator 2

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator 3

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Cable Wire Fault Locator 6
