TDR Cable Fault Locator for Urban Lead & Plastic Cables
TDR Cable Fault Locator for Urban Lead & Plastic Cables
  • TDR Cable Fault Locator for Urban Lead & Plastic Cables
  • TDR Cable Fault Locator for Urban Lead & Plastic Cables
  • TDR Cable Fault Locator for Urban Lead & Plastic Cables

TDR Cable Fault Locator for Urban Lead & Plastic Cables

Product Details:
Place of Origin: China Shanxi
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHGG500
Detail Information
Place of Origin:
China Shanxi
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHGG500
Highlight:

High Light

Highlight:

TDR cable fault locator for urban cables

,

lead and plastic cable fault detector

,

TDR locator for underground cable faults

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description

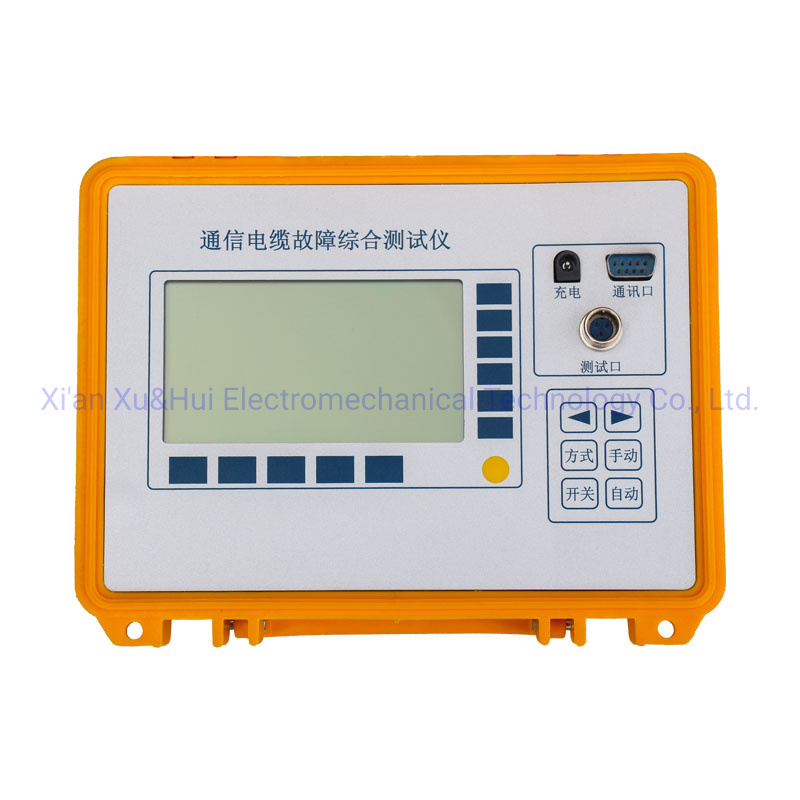

TDR Cable Fault Locator for Urban Lead Cover and Plastic Cables
The XHGG500 Automatic Telecom Cable Fault Locator combines advanced microelectronic technology with pulse reflection and intelligent electric bridge testing to precisely locate faults in urban lead cover cables, plastic cables, and various wiring issues including broken wires, crossed lines, insulation faults, and weak connections.
TDR Cable Fault Locator for Urban Lead & Plastic Cables 0
Key Features
  • Dual testing methods: pulse reflection and intelligent electric bridge for comprehensive fault detection
  • One-button automatic operation with preserved manual testing capability
  • Intuitive English menu interface for easy operation
  • Integrated megameter and ohmmeter for insulation and loop resistance testing
  • Permanent storage for 10 test waveforms (retained after power off)
  • Automatic gain and impedance balance technology eliminates manual adjustments
  • Backlit display supports nighttime operation
  • Rechargeable lithium battery with intelligent charging system
  • Compact, lightweight design for portability
Technical Specifications
Parameter Specification
Testing Resolution 1m (minimum range) / 8m (maximum range)
Pulse Width 80ns-10μs (automatic adjustment)
Maximum Insulation Resistance 100 MΩ
Testing Accuracy ±1% of cable length
Input Diameter Range 0.3mm-0.99mm (3 segment input)
Recharge Time 4 hours
Operating Time 6 hours continuous
Maximum Cable Length 9999m
This advanced fault locator significantly reduces troubleshooting time, improves work efficiency, and reduces labor intensity for maintenance staff. It's also ideal for cable project acceptance testing and electrical cable inspections.
