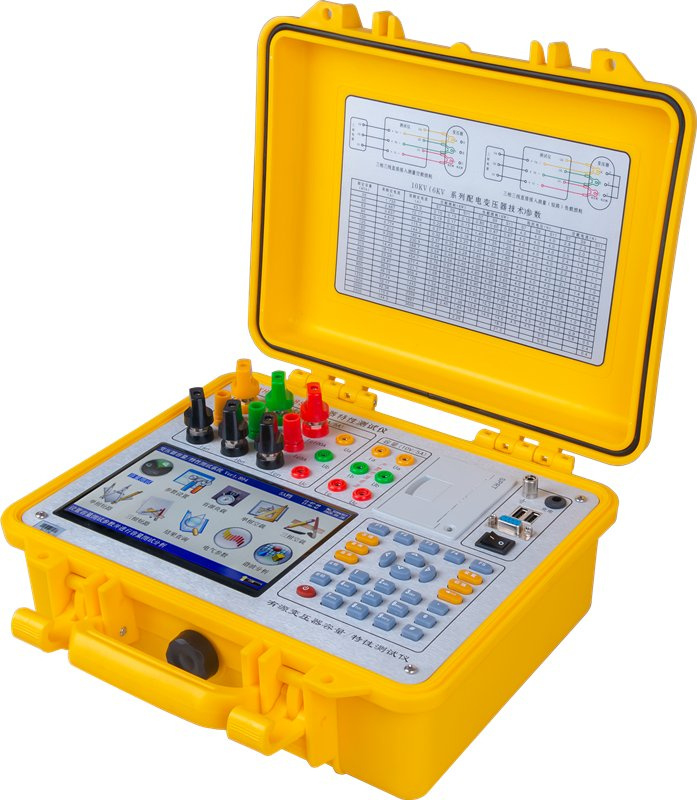

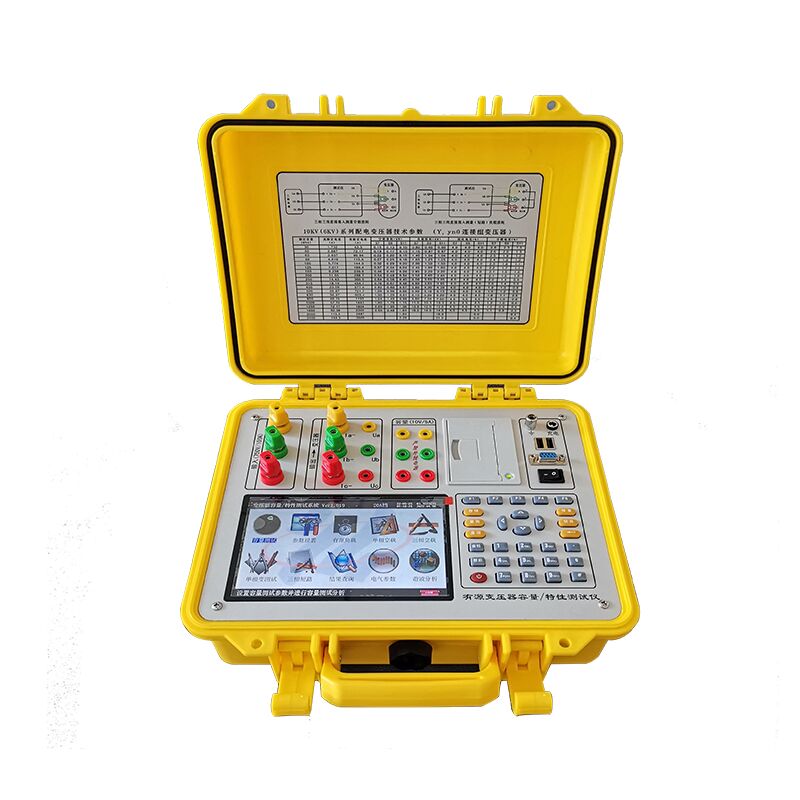

XHTX1318 Transformer Tester for Capacity Loss Measurement

Name: XHTX1318 Transformer Tester for Capacity Loss Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHTX1318
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHTX1318

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHTX1318

Highlight:

High Light

Highlight:

Transformer tester for capacity loss

Transformer capacity loss measurement

XHTX1318 transformer tester

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1,000 units per year

Product Description

Multi-Function Transformer Characteristic Tester - High Precision Test Equipment

The XHTX1318 series transformer characteristic tester is a multi-function measuring instrument that combines the capabilities of both transformer capacity tester and transformer characteristic parameter tester. This advanced equipment provides precise measurement of power frequency parameters including capacity, type, no-load current, no-load loss, short-circuit (load) loss, and impedance voltage for various transformers.

Key Features

Accurate measurement of capacity for various distribution transformers
Measurement of no-load current, no-load loss, short-circuit voltage and short-circuit (load) loss
Automatic range switching with wide test voltage and current ranges
Automatic wiring verification with three-phase voltage and current vector display
Complete load testing for transformers below 1000KVA at full current
All test results are automatically corrected
320x240 large screen, high brightness LCD display with full Chinese/English menu
User-configurable with capacity to store 40 sets of test parameters
Built-in real-time electronic clock for automatic test time recording
Integrated thermal printer for immediate test result printing
Data storage for 500 test results with power-down protection
Compatible with external voltage and current transformers for extended range measurement

Technical Specifications

Environmental Conditions	Temperature: -5°C ~ 40°C Relative humidity: <95% (25°C) Altitude: <2500m External interference: No strong vibration or electromagnetic fields Power supply: 220VAC±10%, 45Hz~55Hz
Test Range	Capacity: 10KV oil immersed, dry transformer: 30KVA ~ 2500KVA 35KV oil immersed transformer: 50KVA ~ 31500KVA 20KV dry type transformer: 50KVA ~ 2500KVA 35KV dry type transformer: 50KVA～2000KVA Voltage: 0~450V (phase), 0~1000V (line), auto-ranging Current: 0~100A, auto-ranging Frequency: 45Hz~65Hz
Test Accuracy	Voltage: 20~100V, ±0.2% FS; 100~450V, ±0.2% Current: 0.5~10A, ±0.2% FS; 10~100A, ±0.2% Power: ±0.5% (CosΦ>0.1), ±1.0% (0.02<CosΦ<0.1)
Insulation Strength	Insulation resistance ≥100MΩ Withstands 2KV (effective value) power frequency between housings for 1 minute
Dimensions	400 × 300 × 220mm
Weight	10kg
