Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
  • Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHYB-10/100
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHYB-10/100
Highlight:

High Light

Highlight:

Automatic tuning resonance tester

,

Series resonance apparatus with protection

,

AC DC hipot tester

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description

Product Overview

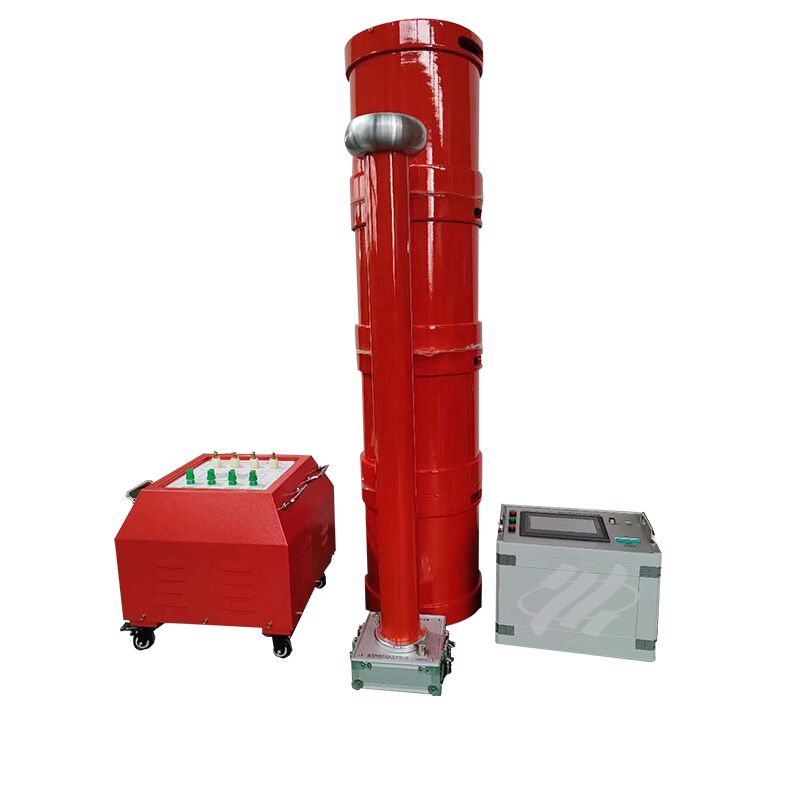

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights


  • Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
  • Low temperature rise during rated load operation, enhancing the service life of components.
  • Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
  • Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
  • Multiple working modes available, realizing simple and efficient operation.
  • 220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters


  • Rated Output Voltage: ≤500kV (AC RMS)
  • Output Frequency: 20～300Hz
  • Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
  • Test Capacity: ≤1000kVA
  • Continuous Working Time (Full Power): 60min
  • Quality Factor: 30～90
  • Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
  • Working Power Supply: 380/220V±15%/50Hz±5%

    Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions 0
