Cable Fault Locator
>

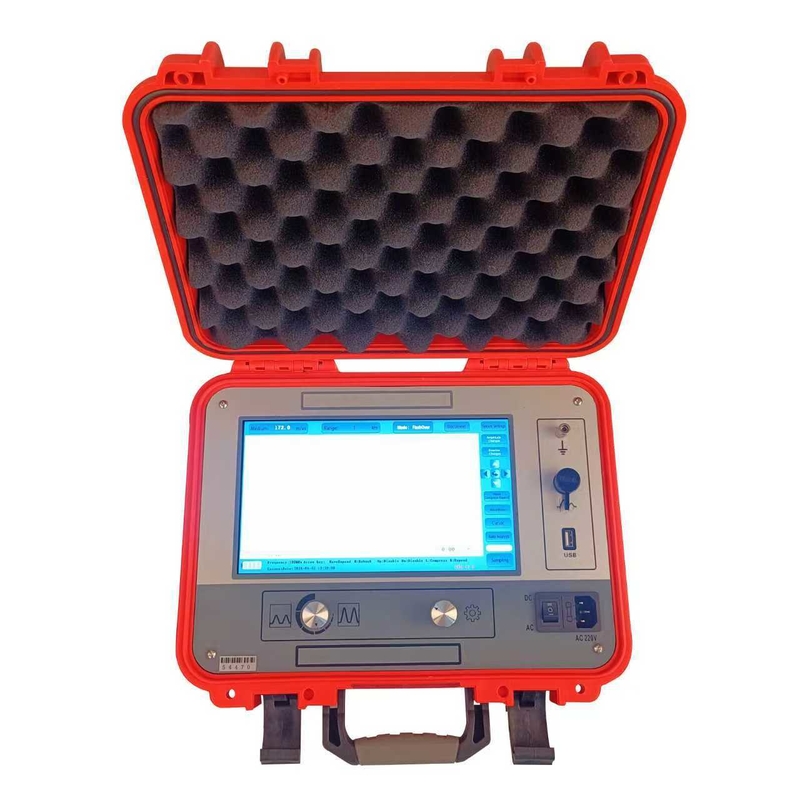

TDR Latest Cable Fault Locator with Fault Distance Location
  • TDR Latest Cable Fault Locator with Fault Distance Location
  • TDR Latest Cable Fault Locator with Fault Distance Location

TDR Latest Cable Fault Locator with Fault Distance Location

Product Details:
Place of Origin: China
Brand Name: XZH Test
Certification: CE、ISO
Model Number: XHGG502A1
Detail Information
Place of Origin:
China
Brand Name:
XZH Test
Certification:
CE、ISO
Model Number:
XHGG502A1
Highlight:

High Light

Highlight:

cable fault locator with TDR

,

TDR fault distance locator

,

latest cable fault detector

Trading Information
Minimum Order Quantity:
1unit
Packaging Details:
wooden box
Delivery Time:
5-8work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description
XHGG502A1


This cable fault tester is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flashover. Network failure. The technical parameters comply with "GB/T 18268.1 Anti-interference requirements for test equipment used in industrial sites", "DL ∕ T 849.1-2019 General technical conditions for special testers for power equipment Part 1: Cable fault flash tester", "JJF1042-2020" "Calibration Specifications for Cable Fault Testers" standard requirements.


Sampling frequency 1MHz~400MHz
Low voltage pulse amplitude 300V±15%
Ranging range ≥120km
Test range 100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
Pulse width 0.15uS/0.30uS/0.60uS/1.20uS/2.4uS/5.0uS/7.5uS/10uS
Minimum resolution 0.07m
Test blind area ≤10m
Measurement error  ≤±(0.5%×L+1m), L is the cable length
Power supply mode charging AC110V~240V, 50Hz/60Hz
Pulse coupler withstand voltage  DC 35kV
Working conditions Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg

TDR Latest Cable Fault Locator with Fault Distance Location 0
