Cable Fault Pinpointing Locator with Powerful Background Noise Reduction

Name: Cable Fault Pinpointing Locator with Powerful Background Noise Reduction
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHDD503C

Highlight:

High Light

Highlight:

intelligent cable fault locator with BNR

cable fault pinpointing locator

powerful cable fault locator with warranty

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

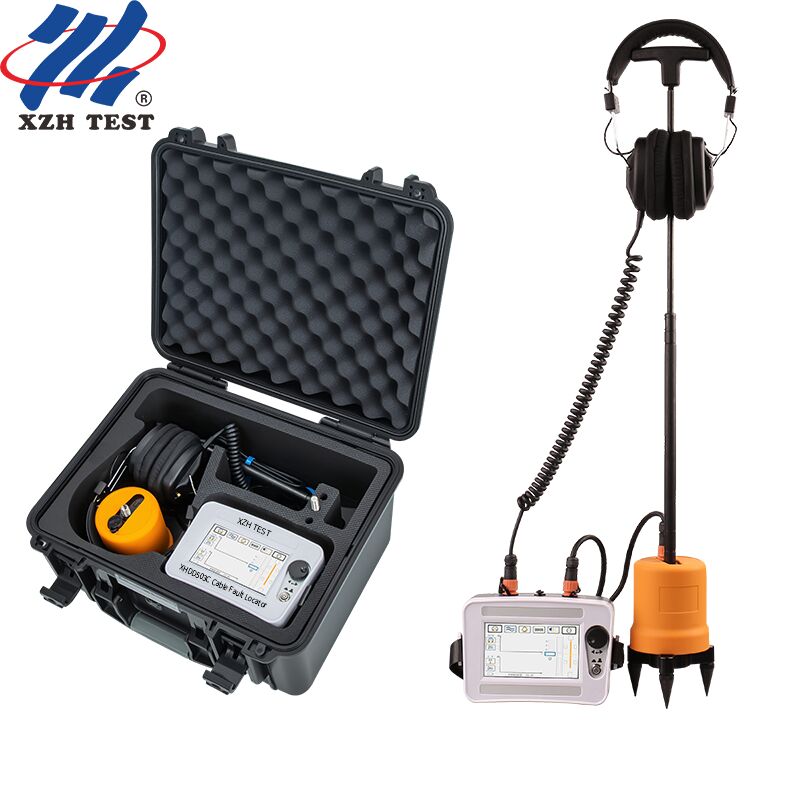

XHDD503C underground cable fault pinpoint locator

Introduction

As a powerful tool for identifying power cable fault points, the cable fault locator adopts the acoustic-magnetic synchronization method. Electronic flashover generated by the impulse discharge generator is detected and amplified via a specialized probe, and the fault’s precise location is determined through audio-visual judgment. This device achieves accurate cable fault positioning within a rough measurement range while collecting the time difference between acoustic and magnetic signals. Integrating advanced positioning technology with path-assisted testing, it offers multiple test modes and various informative prompts to locate cable faults efficiently and accurately.

Features

A 5-inch touch-enabled high-brightness LCD guarantees visibility even under sunlight.

Acoustic-magnetic synchronous positioning technology is adopted to automatically calculate the acoustic-magnetic time difference; manual adjustment is also available for adapting to different environments.
It features background noise reduction technology, offers multiple filtering methods to choose from, and includes path deviation indication.
Equipped with multi-layer physically isolated signal sensors, it has an IP65 waterproof rating. A large-capacity lithium battery is built-in for long standby time, along with a fast charger.

It is small and lightweight, easy to operate, and comes with a simple human-machine interface.

Technical indicators

Filter parameters	All-pass: 100Hz~1600Hz. Low pass: 100Hz~300Hz. Qualcomm: 160Hz~1600Hz. Bandpass: 200Hz~600Hz.
Channel gain	8 levels adjustable.
Magnetic channel gain	8 levels adjustable.
Output gain	16 levels (0~112db)
Output impedance	350Ω
Acoustomagnetic positioning accuracy	less than 0.2m.
Path identification accuracy	less than 0.5m.
Power supply	4*18650 standard lithium batteries.
Standby time	more than 8 hours.
