Protected Surge Generator Featuring Triple Auto Protection 12μF 864J for LV MV Cable Fault Contractors| XHHV512-12L

The XHHV512-12L is purpose-built for organizations where operator safety and equipment protection are non-negotiable requirements — utility companies with strict safety compliance protocols, testing contractors whose technicians work on unfamiliar field sites daily, and industrial plants where cable fault testing occurs in proximity to critical production equipment that cannot tolerate collateral damage from test equipment malfunction.

Field cable fault testing is inherently a high-risk operation. A cable flashover can induce transient overvoltages that feed back into the test equipment. A persistent high-resistance fault can cause sustained overcurrent draw. Continuous impulse cycling on a hot day can push internal components beyond thermal limits. Most surge generators rely on a single fuse for protection — the XHHV512-12L deploys three independent, automatic protection circuits that monitor output current, output voltage, and internal temperature simultaneously.

A unique capability that separates the XHHV512-12L from less robust instruments is its strong short-circuit protection that permits direct short-circuit operation to ground. During cable fault testing, scenarios arise where the fault path presents near-zero impedance — effectively a dead short. Many surge generators will trip or sustain damage under these conditions. The XHHV512-12L is engineered to tolerate direct output-to-ground short circuits without damage, providing operators the confidence to test aggressively when fault conditions demand it.

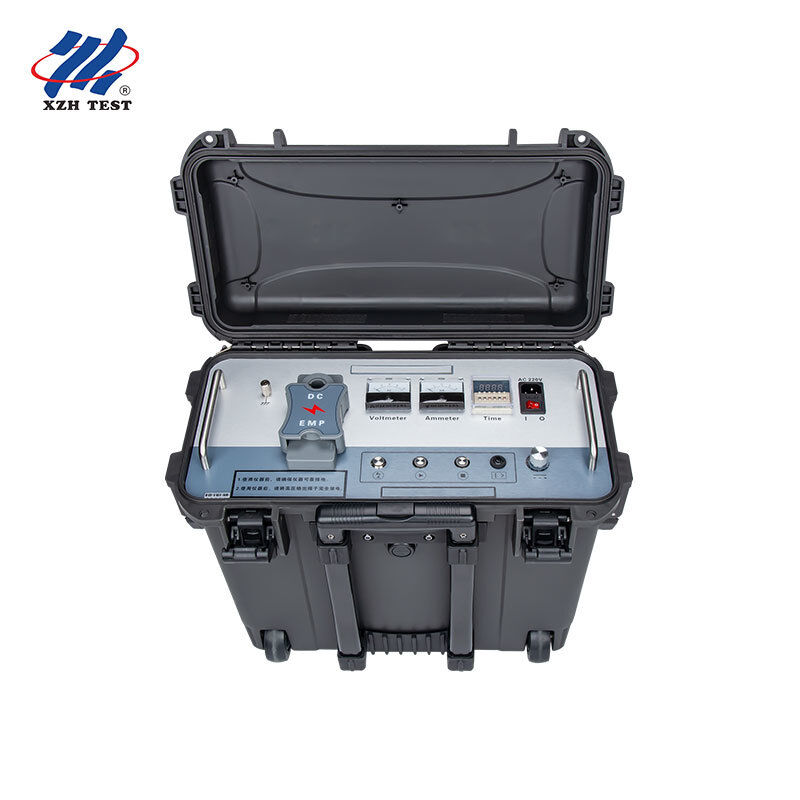

The XHHV512-12L is equipped with dual 1.5-class analog pointer meters (current and voltage) that provide clear, intuitive, real-time visual feedback during the impulse discharge process — a critical advantage that digital displays cannot match for transient high-voltage events:

• Current Meter: Indicates real-time HV-side current during impulse discharge — the needle deflection pattern reveals whether the fault has fully discharged or requires additional impulse cycles
• Voltage Meter: Displays capacitor charge voltage in real time — the falling needle during impulse confirms energy transfer to the fault point with intuitive visual clarity
• 1.5-Class Accuracy: Meets industrial measurement standards — sufficient precision for field fault location work without the fragility and cost of laboratory-grade digital metrology
• Discharge Completion Feedback: The meter needle returning to zero provides immediate, unambiguous confirmation that the stored energy has been fully delivered — no interpreting digital readouts or LED indicators

The XHHV512-12L integrates a charging circuit and a discharging circuit into a single compact chassis. The charging circuit samples the HV cable voltage and feeds it to a voltage regulation control circuit — ensuring the energy storage capacitor charges to the precise operator-selected voltage level. The discharge circuit, triggered by the impulse mechanism, routes stored energy from the 12μF capacitor through the high-voltage discharge sphere to the output terminal — delivering a fast-rising DC impulse that creates both the acoustic thump and electromagnetic transient required for fault pre-location and pinpointing.

This integrated architecture eliminates the interconnecting cables, separate capacitor banks, and external sphere gaps required by traditional component-level setups — reducing setup complexity, minimizing connection points that can fail, and enabling a single operator to deploy and operate the complete system.
