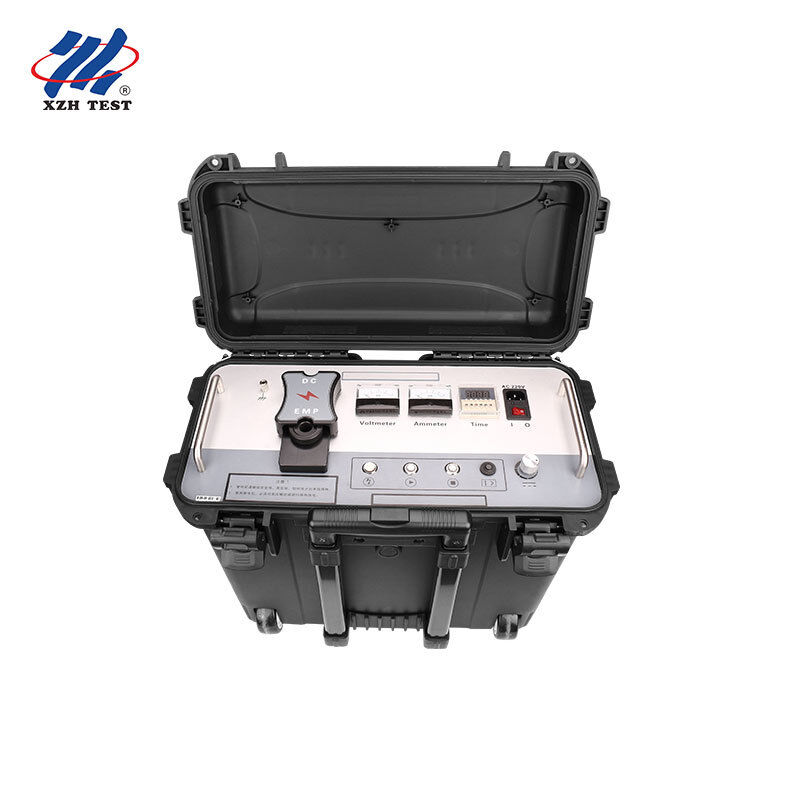

Pull-Rod High Voltage Surge Generator| XHHV515-12L Model: XHHV515-12L
Designed for: LV/MV Cable Fault Service Technicians, Utility Distribution Maintenance Crews, Electrical Testing Service Providers
Core Value: Compact pull-rod type DC impulse generator with 12μF built-in capacitor delivering 0-864J adjustable discharge energy — the portable, grab-and-go solution for routine fault detection on 12kV and below power cables with dual-mode output (impulse discharge + DC withstand voltage).
Who This Equipment Is For
The XHHV515-12L is engineered for field technicians who need a compact, lightweight, single-operator portable impulse source for everyday LV and MV cable fault location work. Its pull-rod chassis design prioritizes ease of transport and rapid deployment — ideal for utility crews responding to multiple fault callouts per day and testing companies servicing urban distribution networks where maneuverability through tight access points is critical.
1Field Service TechniciansPull-rod portability for single-operator transport between vehicle and test point. Minimal setup — connect, power on, test.
2Distribution Utility CrewsRoutine 12kV and below cable fault location. Zero-position start protection ensures safe operation by crews rotating through substations daily.
3Testing Service CompaniesCost-effective impulse source for LV/MV cable fault service contracts. Dual output ports — no mode switching hardware required between impulse and DC modes.
4Industrial Plant ElectriciansCompact footprint fits through standard doorways and equipment room access points. Ideal for factory and processing plant MV cable diagnostics.
Key Specifications
Built-in Capacitor12 μF
Discharge Energy Range0–864 J
Target Cable Voltage≤12 kV
Voltage MeasurementReal-time kV Meter
Safety InterlockZero-Position Start
Discharge ControlManual + Timed Interval
Output ModesEMP + DC Dual Ports
Power Supply220V AC 50Hz
Form FactorPull-Rod Portable
Compact Pull-Rod Design — Grab, Go, Test
Unlike larger trolley-mounted surge generators that require vehicle ramp access and two-person handling, the XHHV515-12L’s pull-rod form factor enables true single-operator field mobility. The integrated telescoping handle and rugged chassis allow one technician to transport the complete instrument from vehicle to test point — through gates, down stairwells, and into congested substation bays where wheeled carts cannot navigate.
Operational Advantage: For utility crews handling 4-6 fault callouts per shift, the difference between a 2-minute setup (XHHV515-12L) and a 10-minute setup (trolley-type units with external capacitor connections) translates directly to more faults located per working day — and faster service restoration for customers.
Dual Output Ports — No Mode Switching Required
Many surge generators require the operator to physically reconfigure cabling when switching between impulse discharge and DC withstand voltage modes — a source of connection errors and wasted time. The XHHV515-12L provides dedicated output ports for each mode:
| Output Port |
Function |
Use Case |
| HV Output (EMP) |
Impulse discharge for cable fault pinpointing |
Connect to cable under test for acoustic-magnetic thumping during fault location |
| HV Output (DC) |
Continuous DC withstand voltage output |
Connect for post-installation cable insulation verification and preventive maintenance testing |
Real-Time Voltmeter — Complete HV Visibility
A distinctive safety and diagnostic feature of the XHHV515-12L is its real-time kV voltmeter that indicates capacitor voltage even when the instrument is in standby mode — not just during active impulse discharge. This provides operators with continuous situational awareness of the stored energy state, eliminating the risk of accidental contact with a seemingly "off" capacitor bank that may still hold a dangerous residual charge.
- Standby Monitoring: Voltmeter displays real-time capacitor voltage — operator always knows the energy state before approaching output terminals
- Manual Discharge Button: Dedicated front-panel discharge button for controlled dissipation of residual capacitor energy — complements the automatic safety discharge circuit
- Zero-Position Indicator (Yellow LED): Lights only when voltage adjustment knob is at zero — visual confirmation it is safe to enable HV output
- Tuned Energy Output: 12μF capacitance with 0-864J adjustable range allows operators to match impulse energy to cable length and fault impedance — avoiding over-discharge on short LV cable sections
Panel Interface — Every Control Explained
| Control |
Function |
| 1. Safety Ground |
Instrument chassis earth connection — prevents casing electrification and personnel shock hazard |
| 2. Discharge Button |
Manual internal charge dissipation when HV is off — secondary safety layer beyond automatic discharge |
| 3. Start / Zero-Position Indicator |
Yellow LED confirms voltage knob at zero; press to enable HV output when indicator is lit |
| 4. Stop / HV Indicator |
Immediate HV output cutoff; indicator lights during active high-voltage output |
| 5. Overcurrent Protection |
Press to activate protection; auto-trips on overcurrent condition — reset after correction |
| 6. Voltage Adjustment |
Turn fully counterclockwise to zero before start, then clockwise to increase output |
| 7. Time Setting |
Configurable discharge time interval for automatic timed impulse mode during pinpointing |
Applications
| Application |
Scenario |
| Cable Fault Pinpointing |
Impulse discharge for acoustic-magnetic pinpointing on 12kV and below LV/MV distribution cables |
| DC Withstand Voltage Testing |
Post-installation and post-repair cable insulation verification on LV and MV circuits |
| Pre-Commissioning Cable Verification |
New cable circuit testing before energization — detects installation damage and joint defects |
| Electrical Equipment DC Testing |
DC withstand voltage testing on other electrical equipment — transformers, switchgear, bushings |
| Routine Preventive Maintenance |
Scheduled cable condition assessment for urban networks, industrial plants, commercial facilities |
Safety & Operational Precautions
- Always connect safety ground to a reliable earth point before operation — prevents casing electrification and shock hazard
- Verify zero-position indicator (yellow LED) is lit before pressing Start — confirms voltage adjustment knob is at zero
- Press manual discharge button and verify voltmeter reads zero before disconnecting output cables
- Press Stop immediately if any abnormal condition is observed during testing
- Only qualified HV technicians may operate — unauthorized disassembly voids warranty
- Read the complete instruction manual before first use; understand all panel controls and wiring methods
- Transport using the pull-rod handle — avoid lifting by cables or connectors
▎Frequently Asked Questions
Q: How does a high voltage surge generator work in cable fault detection?
The surge generator discharges a high-energy pulse into the faulty cable, creating a controlled high-voltage arc at the fault point. This arc produces both an acoustic signal (loud thumping sound detectable by ground microphones) and an electromagnetic pulse (detectable by an inductive receiver). By combining acoustic and electromagnetic signal arrival times, operators can pinpoint the exact fault location with precision—a technique known as acoustic-magnetic synchronization.
Q: Which voltage range should I select for different cable types?
Voltage selection follows the cable's rated operating voltage as a general guideline. For low-voltage cables (up to 1kV), use the 8kV or 12kV range. For medium-voltage distribution cables (6-15kV), the 16kV range is appropriate. For high-voltage transmission cables (35kV and above), use the 32kV range. Always consult the cable manufacturer's maximum test voltage specifications and ensure all safety clearances are maintained during high-voltage operation.
Q: What safety precautions must be observed during surge generator operation?
High voltage surge generator testing requires strict safety protocols. Always verify the cable is fully de-energized and isolated from all power sources before connection. Establish a minimum 5-meter safety perimeter around the test zone with warning signs. All personnel must wear appropriate PPE including arc-rated clothing, HV insulating gloves, and dielectric overshoes. The integrated safety features—automatic discharge upon power-off, emergency stop, and zero-voltage interlock—provide additional layers of protection but should never replace proper safety procedures.
Q: What is the advantage of multiple energy levels (Joules) on this unit?
Different energy levels serve different diagnostic purposes. Low energy settings (e.g., 864J–1024J) are ideal for initial fault confirmation and locating high-resistance faults where excessive energy could worsen cable damage. Medium energy (1225J–2048J) provides optimal acoustic signal strength for most routine fault pinpointing. High energy (2450J+) is reserved for very long cables, deep burial scenarios, or high-impedance faults that require stronger arc generation to produce a detectable acoustic signature. The three-level selection allows operators to match energy output to field conditions.
Q: What warranty and support is included with this surge generator?
12-month standard warranty against manufacturing defects with lifetime technical support. CE and ISO 9001:2015 certified. Each unit includes the surge generator, HV output cable, ground cable, discharge rod, user manual, and a heavy-duty trolley with locking casters for safe transport. On-site installation, commissioning, and operator safety training are available upon request. Spare parts including discharge gaps, capacitors, and HV diodes are stocked for rapid replacement.
