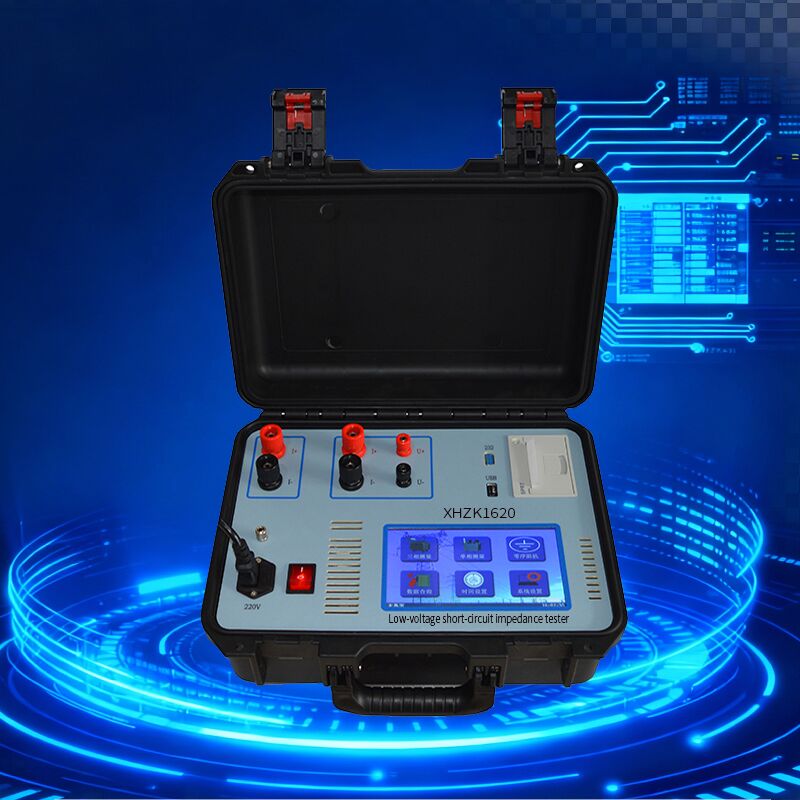

XHZK1620
Designed to address the testing needs of 35kV and higher-grade main transformers, the XHZK1620 Tester delivers accurate low-voltage short-circuit impedance measurements in both on-site and laboratory settings. Its built-in printer enables convenient on-the-spot printing of test data, streamlining workflow for technicians.
Performance Features
Large LCD screen display, with all menus and operation prompts in Chinese. The LCD screen remains clearly visible even under direct sunlight.
Technical Parameters
Measurement Range: Voltage: 5V～400V Current: 0.5A～10A
Measurement Accuracy: Voltage, Current: Class 0.2
Power: cosφ>0.1: Class 0.5 cosφ≤0.1: Class 1.0
Operating Power Supply: AC 220V±10% 50Hz±1Hz
Operating Environment: -10℃～50℃ RH≤85％
Application Fields
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment testing: power installation and commissioning companies of various levels;
Troubleshooting
If you find any abnormal situation or malfunction with the instrument, do not open or disassemble it yourself. Please contact our company promptly so that we can arrange a suitable solution for you.
