Transformer Tester
>
1.5 kVA Insulating Oil Dielectric Strength Tester

1.5 kVA Insulating Oil Dielectric Strength Tester

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHYY102
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHYY102
Highlight:

High Light

Highlight:

1.5 kVA Booster Capacity Insulating Oil Dielectric Strength Tester

,

Dielectric Strength Testing Transformer Oil Tester

,

Insulating Oil Analysis BDV Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

XHYY102


This instrument is a high-precision, fully digital industrial device elaborately developed by capitalizing on our core technical strengths, conducting multiple rounds of field tests, and making long-term unremitting efforts. To satisfy the requirements of diverse users, this series of instruments is classified into three types: single-cup, three-cup and multi-cup models. The instrument features simple operation and an aesthetically pleasing appearance. Adopting fully automatic digital microcomputer control, it delivers high measurement accuracy, strong anti-interference capability, as well as outstanding safety and reliability.


Main functions and features

1.The instrument is controlled by a large-capacity microcontroller and works stably and reliably;

2.The instrument is equipped with a wide range watchdog circuit to prevent crashes;

3.Multiple operation options. The instrument program is equipped with two national standard methods GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156 and customized operations, which can adapt to the various choices of different users;

4.The instrument oil cup is cast in one step using special glass, which eliminates interference phenomena such as oil leakage;

5.The unique high-voltage side sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding errors caused in the analog circuit and making the measurement results more accurate;

6.The instrument has over-current, over-voltage, short-circuit and other protection functions inside, and has strong anti-interference ability and good electromagnetic compatibility;

7.Portable structure, easy to move, easy to use indoors and outdoors.

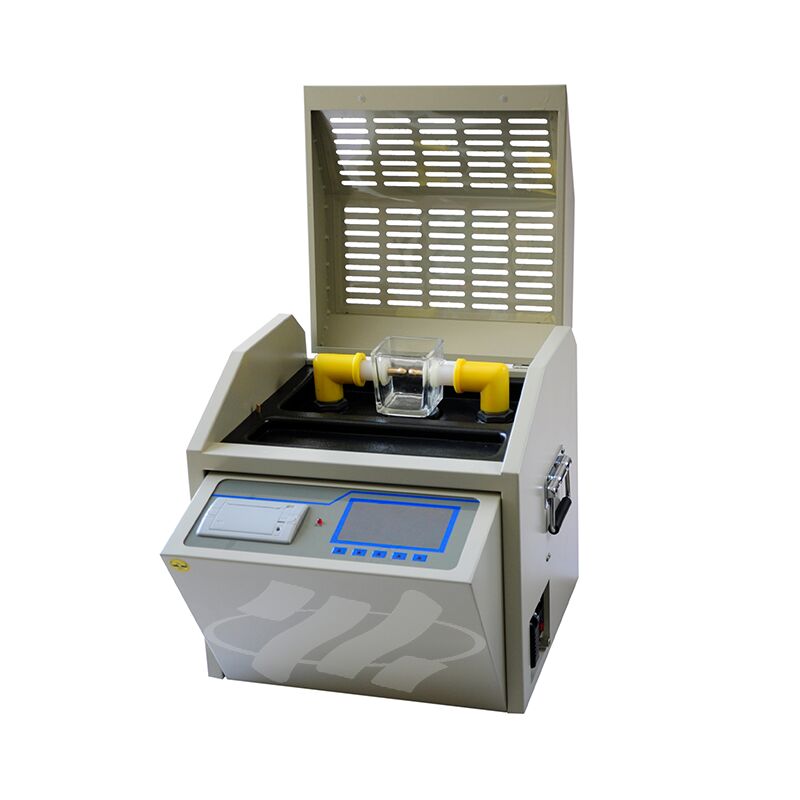

1.5 kVA Insulating Oil Dielectric Strength Tester 0

Technical data

Output voltage:0~80kV

2,Voltage distortion rate: 3%

3,Voltage raising speed: 0.55 KV/S (adjustable)

4,Standing time: 15min (adjustable)

5,Boosting interval: 5 min (adjustable)

6,Boosting frequency: 19 time(s) (optional)

7,Booster capacity: 1.5KVA

8,Measuring accuracy: ±3

9,Supply voltage: AC220V±10%  50Hz±1 Hz

10,Power: 200W

11,Applicable temperature: 045

12,Applicable humidity: 75%RH

13,Overall dimension: 465×385×425mm
