Dielectric Oil Tester with 2.5 mm Electrode Gap

XHYY102

We have developed this high-precision, fully digital industrial instrument by leveraging our technical strengths, carrying out multiple field tests, and devoting long-term continuous efforts. For the convenience of different users, this instrument series comes in three models: single-cup, three-cup and multi-cup. It is easy to operate and has an attractive appearance. Thanks to its fully automatic digital microcomputer control system, the instrument achieves high measurement accuracy, strong anti-interference ability, and stable safety and reliability.

Main functions and features

1.The instrument is controlled by a large-capacity microcontroller and works stably and reliably;

2.The instrument is equipped with a wide range watchdog circuit to prevent crashes;

3.Multiple operation options. The instrument program is equipped with two national standard methods GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156 and customized operations, which can adapt to the various choices of different users;

4.The instrument oil cup is cast in one step using special glass, which eliminates interference phenomena such as oil leakage;

5.The unique high-voltage side sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding errors caused in the analog circuit and making the measurement results more accurate;

6.The instrument has over-current, over-voltage, short-circuit and other protection functions inside, and has strong anti-interference ability and good electromagnetic compatibility;

7.Portable structure, easy to move, easy to use indoors and outdoors.

1. The LCD screen displays date, time, operating parameters, test results, operating menu prompts and other related information;

2. Function keys to select and set operating parameters;

3. Printer prints test results;

4. Press switch Press here to open or close the lid;

5. Indicator light When the light is on, it indicates that the relevant operation steps are in progress;

6. Open the oil cup tank cover to put in or take out the oil cup, and close it before testing;

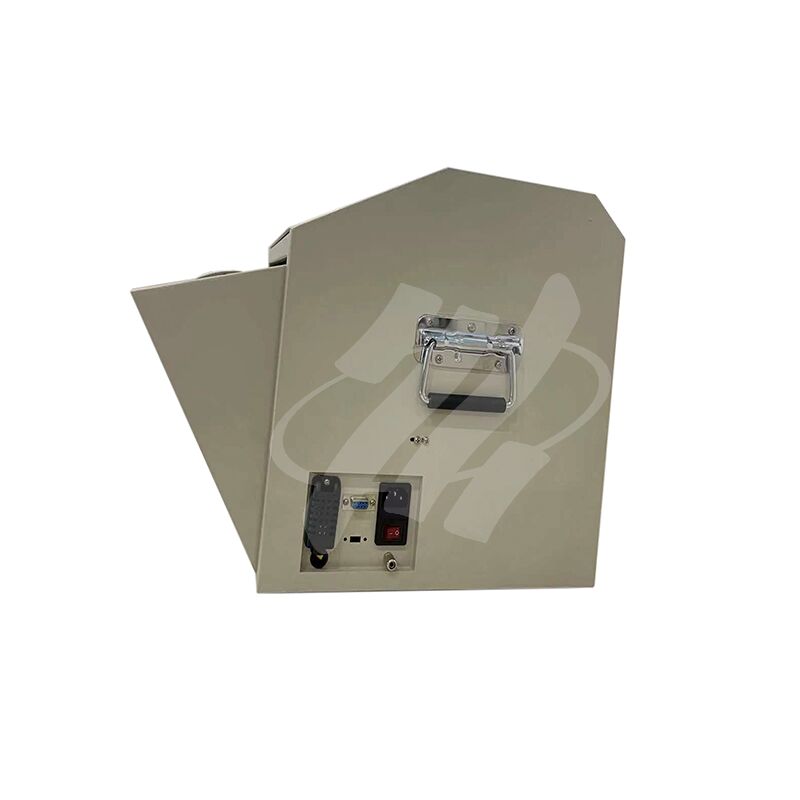

7. Temperature and humidity sensor measures Celsius temperature and relative humidity, and converts them into digital signals for display;

8. Ground pole: reliable ground connection pole;

9. The power socket and switch are well connected to the AC220V 50Hz power cord;
