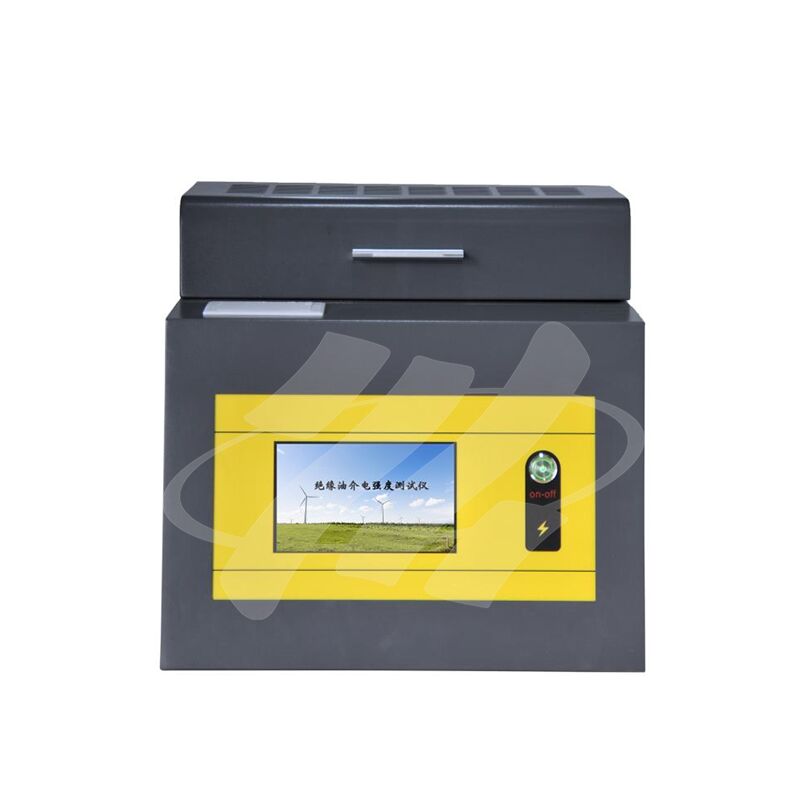

High Accuracy Insulating Oil Tester with 0.2kV/s Error

The XHYY102M Insulating Oil Breakdown Voltage Tester is a high-precision, fully digital industrial instrument developed by our company’s entire team of scientific research and technical professionals. Designed in strict compliance with the relevant standards and regulations governing insulating oil testing, this instrument is the outcome of leveraging our core technical strengths, conducting multiple rounds of field tests, and making long-term unremitting R&D efforts. Characterized by user-friendly operation and an elegant appearance, the tester adopts an automatic digital microcomputer control system, which ensures high measurement accuracy, strong anti-interference capability, and excellent safety and reliability.

Main functions and features

1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;

2. The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement.

3. The wide range watchdog circuit is set in the instrument to prevent the crash;

4. A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation, which can adapt to a variety of choices of different users;

5. The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;

6. The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate;

7. The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;

8. Can switch between Chinese and English at will to meet the needs of any customer;

9. 232 The data transfer；

Conditions of use

1. Ambient temperature 0-40 ℃

2. Relative humidity ≤ 85%

3. Working power AC 220V (1 ± 10%)

4. Power frequency 50 Hz (1 ± 10%)

5. Power consumption < 200 W
