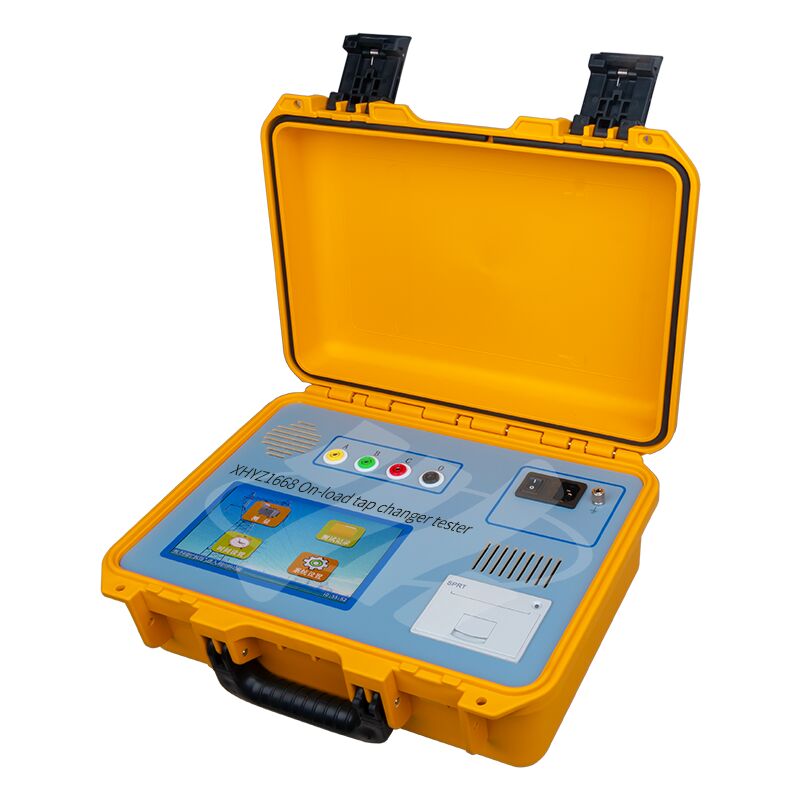

XHYZ1668
Equipped with advanced intelligent functions, the On-load Tap Changer Tester is designed with a complete English menu system, ensuring that the operation process is simple and easy to master even for on-site personnel with minimal training. Its compact structure and lightweight build, combined with excellent anti-interference capability, effectively lower the physical burden on field workers during testing tasks. As a professional testing instrument, it is widely recognized as an optimal choice for power generation and distribution enterprises and transformer manufacturing sectors, playing a critical role in safeguarding safe production operations and elevating product quality levels.
Technical Specifications
☆ Output Current: 1.0A, 0.5A
☆ Measurement Range: Contact Resistance: 0.3Ω～20Ω (1.0A) 5Ω～40Ω (0.5A)
☆ Transition Time: 0～320ms
☆ Open Circuit Voltage: 24V
☆ Measurement Accuracy: Contact Resistance: ±(5% of reading ± 0.1Ω)
☆ Transition Time: ±(0.1% of reading ± 0.2ms)
☆ Sampling Rate: 20kHz
☆ Storage Method: On-board storage
☆ Dimensions: Main unit: 360*290*170 (mm) Cable package: 360*230*290 (mm)
☆ Instrument Weight: Main unit: 6.15KG
☆ Test Cable Length: Standard 13 meters (length can be customized)
Troubleshooting
1. Possible waveforms indicating a CPU board failure (see image below)
Solution: Replace the CPU board
2. Possible waveforms that may occur due to instrument self-oscillation (see figure below)
Solution: After the sample is fully discharged, test in the 1-n direction, ensuring that the non-tested windings are properly short-circuited and grounded; adjust the instrument's sensitivity or trigger level if necessary.
