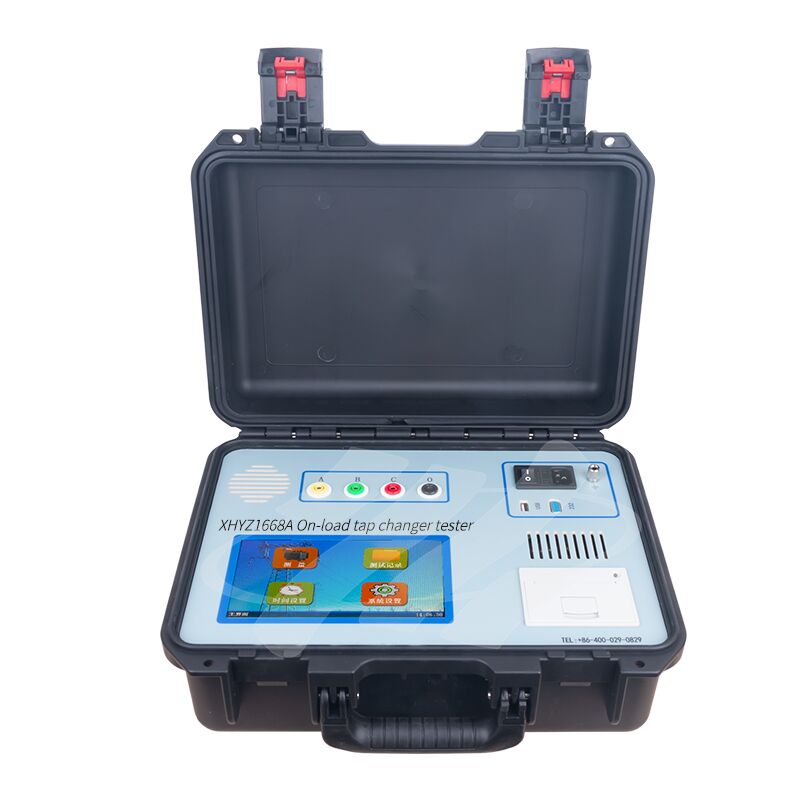

XHYZ1668A
This instrument boasts a high level of intelligence, featuring a full English menu interface that ensures straightforward and intuitive operation. Compact in size, lightweight in design, and equipped with strong anti-interference capability, it significantly reduces the labor intensity of on-site operators. It serves as an ideal and reliable tool for power generation and supply units as well as transformer manufacturing industries to ensure safe production and improve product quality standards.
Performance Features:
★ High output current and lightweight design;
★ Tests Yn, Y, and D type transformers, displaying resistance values directly without conversion;
★ Allows measurement with or without windings;
★ Waveform display automatically adjusts resistance and time amplitude based on sampled values;
★ Features a complete protection circuit for high reliability;
★ 7-inch large LCD display for easy on-site operation;
★ Built-in high-capacity lithium battery for operation without external power supply (optional);
★ Automatically saves up to 500 sets of data internally.
Technical Parameters:
☆ Output Current: 1.0A, 0.5A, 0.2A
☆ Measurement Range: Transition Resistance: 0.3Ω～20Ω (1.0A) 5Ω～40Ω (0.5A)
20Ω～100Ω (0.2A)
☆ Transition Time: 0～320ms
☆ Open Circuit Voltage: 24V
☆ Measurement Accuracy: Transition Resistance: ±(5% reading ±0.1Ω)
☆ Transition Time: ±(0.1% reading ±0.2ms)
☆ Sampling Rate: 20kHz
☆ Storage Method: On-board storage
☆ Dimensions: Main unit: 360*290*170 (mm) Cable box: 360*290*170 (mm)
☆ Instrument Weight: Main unit: 6KG Cable box: 4.5KG
☆ Test Cable Length: Standard 13 meters, customizable length
