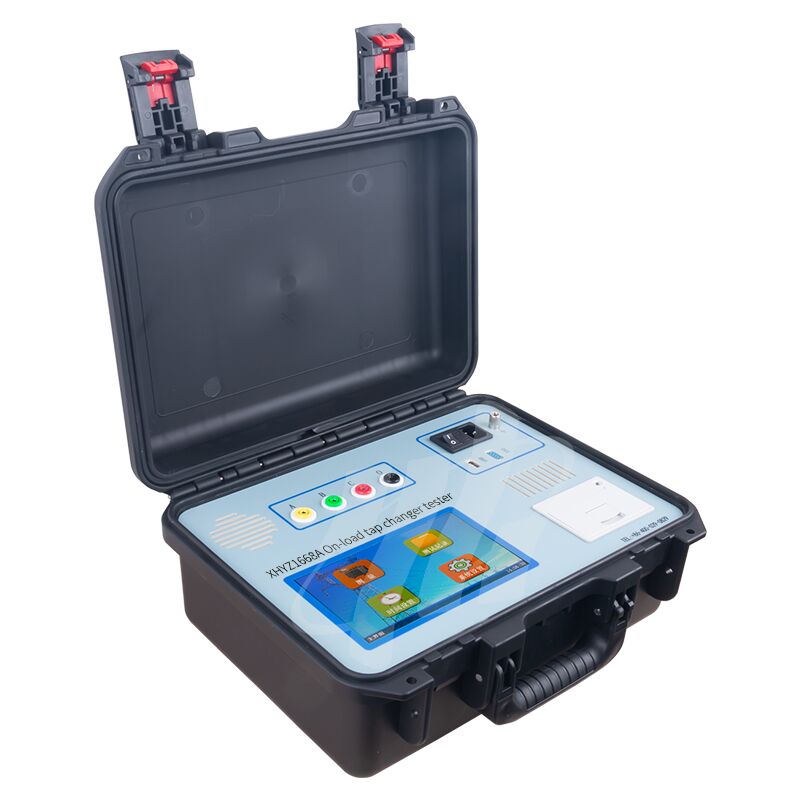

XHYZ1668A
With superior intelligence and a fully English menu, this instrument enables hassle-free operation for users worldwide. Small, portable, and highly resistant to external interference, it takes the strain out of on-site testing work for technicians. For power utilities and transformer manufacturers alike, it is the go-to solution to uphold safe production practices and enhance overall product quality.
Technical Specifications
☆ Output Current: 1.0A, 0.5A, 0.2A
☆ Measurement Range: Transition Resistance: 0.3Ω～20Ω (1.0A) 5Ω～40Ω (0.5A)
20Ω～100Ω (0.2A)
☆ Transition Time: 0～320ms
☆ Open Circuit Voltage: 24V
☆ Measurement Accuracy: Transition Resistance: ±(5% of reading ± 0.1Ω)
☆ Transition Time: ±(0.1% of reading ± 0.2ms)
☆ Sampling Rate: 20kHz
☆ Storage Method: On-board storage
☆ Dimensions: Main unit: 360*290*170 (mm) Cable box: 360*290*170 (mm)
☆ Test Cable Length: Standard 13 meters, length can be customized
Application Areas:
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment installation and testing: power installation and commissioning companies of various levels;
