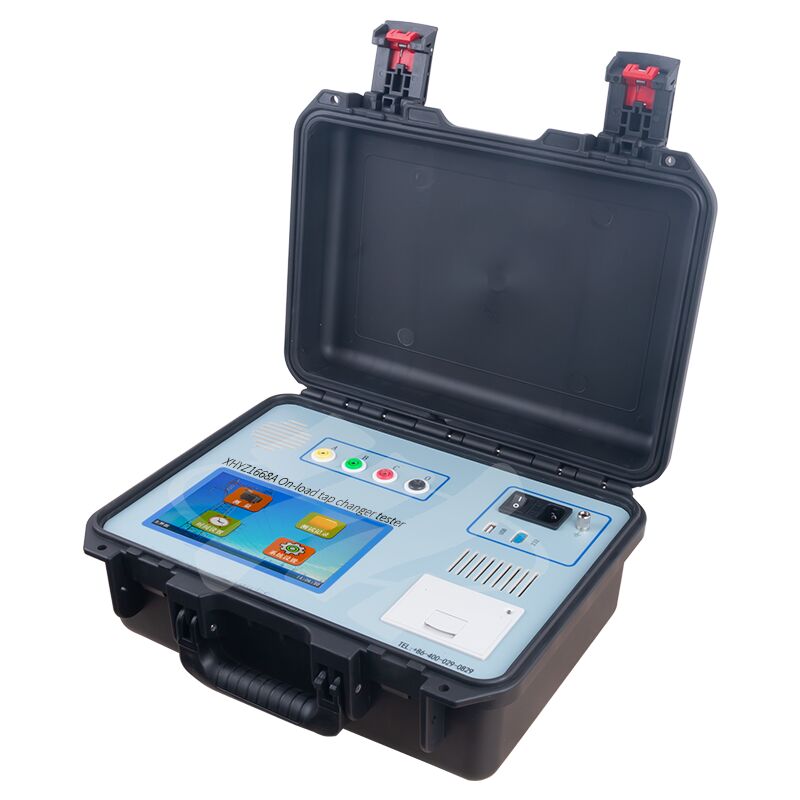

XHYZ1668A
Equipped with advanced intelligent functions, this instrument is designed with a complete English menu system, allowing on-site personnel to master its operation quickly without specialized training. Its compact structure and lightweight build, coupled with excellent anti-interference performance, effectively alleviate the physical burden on field workers during daily testing tasks. As a professional testing device, it is widely recognized as an optimal choice for power generation and distribution enterprises and transformer manufacturing sectors, playing a critical role in safeguarding safe production operations and elevating product quality levels.
Technical Specifications
☆ Output Current: 1.0A, 0.5A, 0.2A
☆ Measurement Range: Transition Resistance: 0.3Ω～20Ω (1.0A) 5Ω～40Ω (0.5A)
20Ω～100Ω (0.2A)
☆ Transition Time: 0～320ms
☆ Open Circuit Voltage: 24V
☆ Measurement Accuracy: Transition Resistance: ±(5% of reading ± 0.1Ω)
☆ Transition Time: ±(0.1% of reading ± 0.2ms)
☆ Sampling Rate: 20kHz
☆ Storage Method: On-board storage
☆ Dimensions: Main unit: 360*290*170 (mm) Cable box: 360*290*170 (mm)
☆ Instrument Weight: Main unit: 6KG Cable box: 4.5KG
☆ Test Cable Length: Standard 13 meters, length can be customized
Performance Features:
★ High output current and lightweight design;
★ Direct display of resistance values for testing Yn, Y, and D type transformers without conversion;
★ Capable of measuring with or without windings;
★ Waveform display automatically adjusts resistance, time, and amplitude based on sampled values;
★ Equipped with a complete protection circuit for high reliability;
★ 7-inch large LCD display for easy on-site operation;
★ Built-in high-capacity lithium battery allows operation without external power supply (optional);
★ Automatically saves up to 500 sets of data internally.
