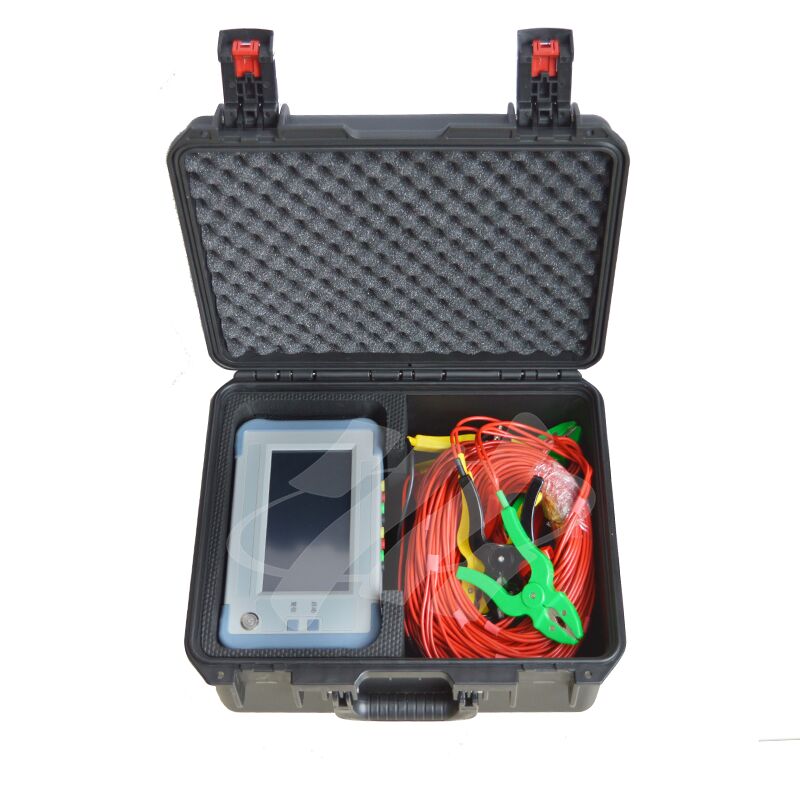

XHYZ1668ASC
Boasting advanced intelligent features, this instrument comes with a full English menu interface, enabling effortless and intuitive operation. Compact in size, lightweight in construction, and equipped with robust anti-interference performance, it significantly reduces the labor intensity of on-site operators. It serves as an ideal and reliable device for power generation and supply units as well as transformer manufacturing industries to ensure safe production and enhance product quality.
Performance Features
★ High output current and lightweight design;
★ Tests Yn, Y, and D type transformers, displaying resistance values directly without conversion;
★ Can measure with or without windings connected;
★ Waveform display automatically adjusts resistance and time value amplitudes based on sampled values;
★ Features a complete protection circuit for high reliability;
★ 7-inch large LCD display for easy on-site operation;
★ Can automatically save 500 sets of data internally.
Technical Parameters
Output Current: 1.0A, 0.5A, 0.2A
Measurement Range: Transition Resistance: 0.3Ω～20Ω (1.0A) 5Ω～40Ω (0.5A)
20Ω～100Ω (0.2A)
Transition Time: 0～320ms
Open Circuit Voltage: 24V
Measurement Accuracy: Transition Resistance: ±(5% reading ±0.1Ω)
Transition Time: ±(0.1% reading ±0.2ms)
Sampling Rate: 20kHz
Storage Method: On-board storage
Dimensions: Main unit: 252*160*65 (mm) Outer case: 425*335*210 (mm)
Instrument Weight: Main unit: 2KG Outer case: 8KG
Test Cable Length: Standard 13 meters (length can be customized)
