Automatic Acid Value Tester with Three Cups

Name: Automatic Acid Value Tester with Three Cups
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSZ1811S
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHSZ1811S

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHSZ1811S

Measurement Range:

0.001～1 Mg KOH/g

Measurement Error:

≤±0.001 Mg KOH/g

Repeatability:

≤0.002 Mg KOH/g

Highlight:

High Light

Highlight:

Three Cups Automatic Acid Value Tester

Automatic Transformer Oil Tester

Acid Value Measurement Insulation Oil Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

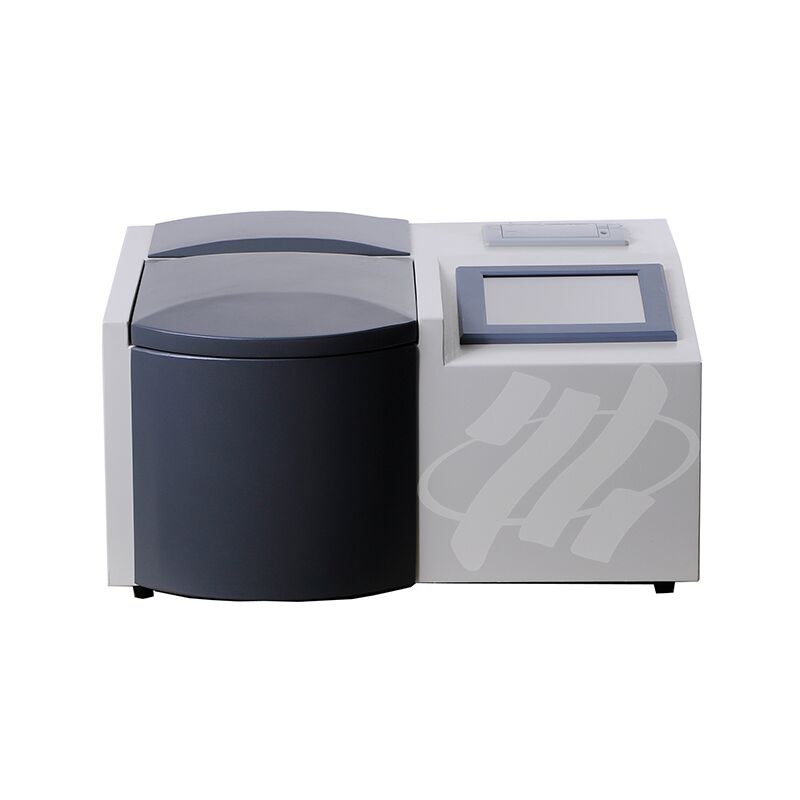

Fully Automatic Insulation Oil Acid Value Tester

This instrument adopts a three-cup extraction method to accurately determine the acid value of insulation oil.

Performance Features

While enhancing work efficiency and testing precision, the instrument minimizes operators’ direct contact with samples and reagents, thus ensuring personal safety. All reagents supplied with this series are in solid form. Users only need to prepare the working solution on demand with common reagents purchased from local chemical stores in accordance with the operation manual, featuring simple preparation and operation as well as significantly reduced testing costs. In addition, it eliminates the various inconveniences associated with the long-distance transportation of hazardous chemicals. The instrument automatically performs a full range of operations, including sample searching, extract injection, blank titration, measurement, waste liquid discharge, automatic cleaning, shutdown, and result display and printing. It can test 1–6 samples in one single run, delivering high efficiency.

Technical Specifications
☆ Measurement Range: 0.001～1 mg KOH/g ☆ Measurement Error: ≤±0.001 mg KOH/g

☆ Repeatability: ≤0.002 mg KOH/g ☆ Operating Environment: 10℃～45℃ RH＜85%

Automatic Acid Value Tester with Three Cups 0

Application Areas:
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment installation and testing: power installation and commissioning companies of various levels.
