Relay Protection Tester
>

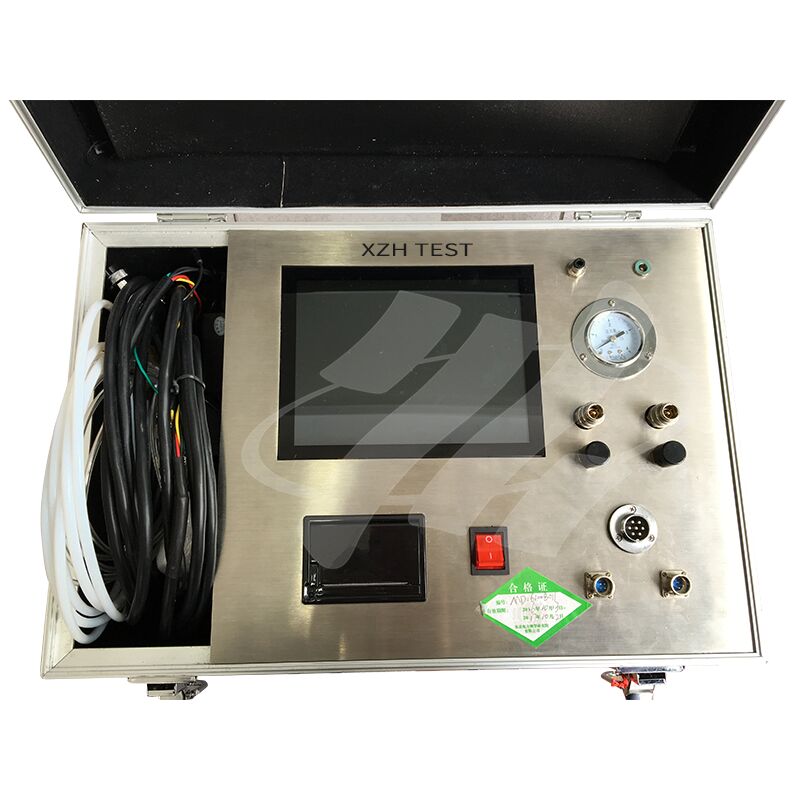

SF6 Density Relay Tester with Color LCD
SF6 Density Relay Tester with Color LCD
  • SF6 Density Relay Tester with Color LCD

SF6 Density Relay Tester with Color LCD

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJB600
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJB600
Measuring Range:
0～1.000 MPa; Accuracy: 0.25 Class
Highlight:

High Light

Highlight:

Color LCD Relay Protection Tester

,

SF6 Density Microcomputer Relay Tester

,

Microcomputer SF6 Density Relay Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview


The XHJB600 SF6 Gas Density Relay Calibrator is a portable calibrator used for the standard conversion of SF6 gas pressure. It can also automatically calibrate SF6 density meters and pressure gauges.

Features


  • 3.5-inch color LCD display with Chinese user interface for easy operation.
  • Displays real-time pressure, pressure converted to 20℃, and ambient temperature.
  • Stores up to 100 groups of measurement data with non-volatile memory.
  • Equipped with RS-232 interface for data upload to a PC.
  • Quick-connect fittings for instrument piping, ensuring convenience and low leakage rate.
  • Self-calibration function for periodic correction after long-term use.
  • Adopts high-precision pressure sensor and magnetic fluid technology.

    SF6 Density Relay Tester with Color LCD 0


Technical Parameters


  • Measuring range: 0～1.000 MPa; Accuracy: 0.25 class
  • Pressure resolution: 0.001 MPa
  • Temperature range: -20℃～60℃; Resolution: 0.1℃
  • Power supply: AC 220V±10% 50Hz; DC 12V/1.5A
