Relay Protection Tester
>

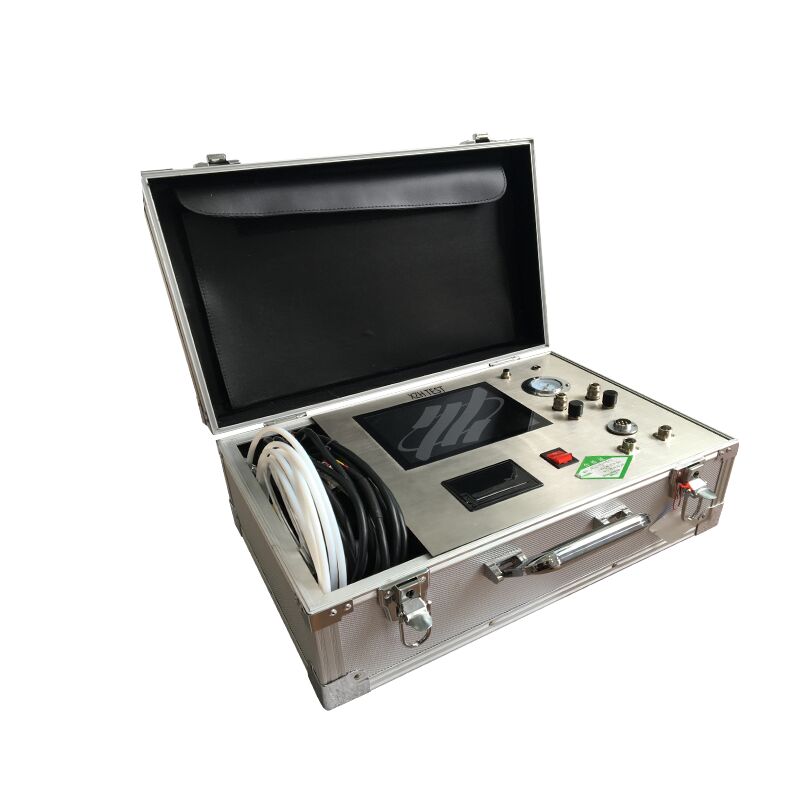

Portable SF6 relay tester with quick connector
Portable SF6 relay tester with quick connector
  • Portable SF6 relay tester with quick connector

Portable SF6 relay tester with quick connector

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJB600
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJB600
Highlight:

High Light

Highlight:

SF6 density relay tester

,

Quick connector relay protection tester

,

Portable relay protection tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

General Introduction


XHJB600 SF6 Gas Density Relay Calibration Instrument is a portable device dedicated to the standard conversion of SF6 gas pressure. It also supports automatic calibration of SF6 density meters and pressure gauges.

Performance Characteristics


  • 3.5-inch color LCD display with Chinese operation interface, simple and convenient to use.
  • Simultaneously displays current pressure, equivalent pressure at 20℃, and ambient temperature.
  • Capable of storing 100 groups of test data permanently.
  • RS-232 interface available for uploading test data to PC.
  • Instrument pipeline equipped with quick connectors for easy operation and low leakage.
  • Self-calibration function allows calibration and correction after prolonged use.
  • Utilizes high-precision pressure sensor and magnetic fluid technology.

Technical Data


  • Measuring range: 0～1.000 MPa; Measuring accuracy: Class 0.25
  • Pressure display resolution: 0.001 MPa
  • Temperature measuring range: -20℃～60℃; Resolution: 0.1℃
  • Operating power: AC 220V±10% 50Hz; DC 12V/1.5A

    Portable SF6 relay tester with quick connector 0

Tags:

6 phase microcomputer relay protection calibrator,

XHJB666 microcomputer relay protection calibrator,

SF6 density relay tester
