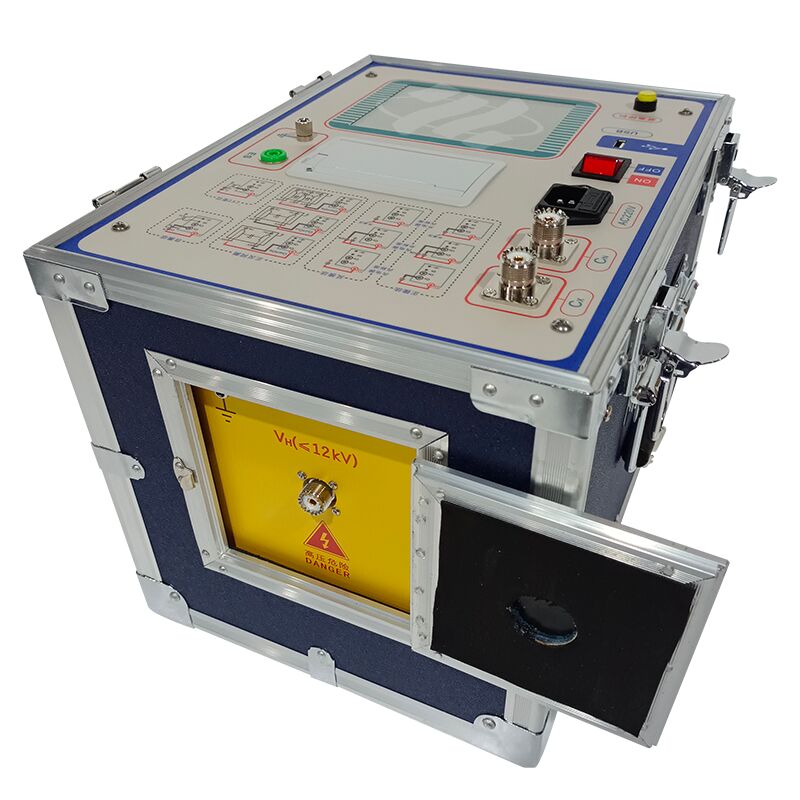

CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester
CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester
  • CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester

CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHJS1000B
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHJS1000B
Capacitance Range:
3pF～60nF
Working Power:
AC220V ±10%, 50±1Hz
LV Output:
3～50V Voltage, 3～30A Current
HV Power:
0.5～10kV, 200mA Max Output Current
Resolution:
Dielectric Loss 0.001%
Highlight:

High Light

Highlight:

10kV dielectric loss tester

,

CVT test measurement device

,

AC DC hipot tester

Trading Information
Minimum Order Quantity:
1unit
Price:
Price Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description
Product Brief

Upgraded from XHJS1000A, XHJS1000B Dielectric Loss Tester adds CVT ratio & phase error measurement. It integrates variable frequency power supply, single-chip microcomputer and electronic tech, realizing auto frequency conversion, A/D conversion and data calculation. 45/55Hz pure sine wave output, auto pressurization, and max 10kV voltage output.

Key Advantages
Complex current method for high-precision testing
Complies with oil dielectric loss measurement standards
One-click CVT self-excitation test for C1/C2 capacitance & dielectric loss
IVDDV + variable frequency tech for reverse connection test
Multi-protection: Overcurrent, grounding
CVT ratio: 10～99999 (±1% error)
Phase measurement: 0～359.9° (±0.1° error)
Specs
Capacitance range: 3pF～60nF
Accuracy: Capacitance ±(1.0%+5pF) | Dielectric loss ±(1%+0.04%) | Frequency ±0.01
Resolution: Capacitance 0.001pF | Dielectric loss 0.001%
HV power: 0.5～10kV, 200mA max output current
LV output: 3～50V voltage, 3～30A current
Working power: AC220V ±10%, 50±1Hz
Suitable For
Power system (generation/transmission/transformation/distribution)
Factories, mines & large manufacturing enterprises
Metallurgy, petrochemical, smelting & water treatment
Transportation (ports, railways, highways, airports, municipal lamps)
Large enterprises & institutions (logistics depts.)
Construction industry & property management companies
Professional power installation & commissioning companies
