Home > Products >
Cable Fault Locator
>
10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging
  • 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging

10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHGG502A
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHGG502A
Sampling Frequency:
1MHz~400MHz
Low Voltage Pulse Amplitude:
300V±15%
Ranging Range:
≥120km
Test Range :
100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
Pulse Width:
0.15uS/0.30uS/0.60uS/1.20uS/2.4uS/5.0uS/7.5uS/10uS
Minimum Resolution:
0.07m
Test Blind Area:
≤10m
Measurement Error:
≤±(0.5%×L+1m), L Is The Cable Length
Power Supply Mode:
Charging AC110V~240V, 50Hz/60Hz
Pulse Coupler Withstand Voltage:
DC 35kV
Working Conditions:
Temperature -20ºC~+65ºC, Relative Humidity 90%, Atmospheric Pressure 750±30mmHg
Highlight:

High Light

Highlight:

TDR Underground Power Cable Fault Locator

,

ARC Underground Power Cable Fault Locator

,

Underground Electric Cable Fault Locator 120km

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
1000 pieces/Year
Product Description


XHGG502A

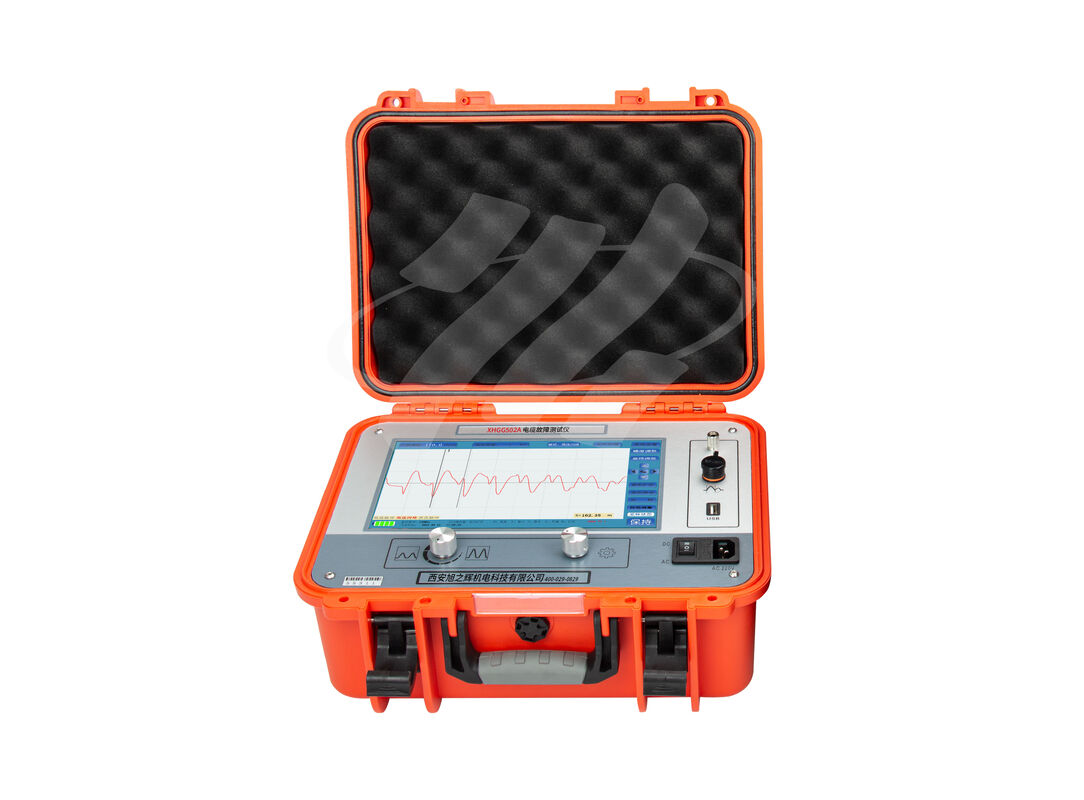

This cable fault tester adopts an industrial 10.1-inch all-in-one touch computer, industrial integrated circuits and a built-in large-capacity lithium battery, featuring stable performance and simple operation. Integrating modern electronic and computer technologies, it completes signal filtering, collection, data processing, graphic display and analysis to realize cable velocity, length and fault distance measurement. Applicable to low-resistance short-circuit, open-circuit, high-resistance leakage and flashover faults of various power cables, high-frequency coaxial cables, street lamp cables and buried lines, its technical indicators fully meet GB/T 18268.1, DL/T 849.1-2019 and JJF1042-2020 relevant industry calibration and anti-interference standards.
Work mode: TDR(low voltage pulse), ICE(Impulse current), ARM(Arc reflection method) with coupler configured.

Product Features

1. Equipped with a 10.1-inch high-definition TFT touch screen featuring 1024*600 resolution and 280nit ultra-high brightness LED backlight, it delivers clear waveform display and stable operation even under direct sunlight.
2. Adopts mature embedded system with stable and safe performance, supporting full English menu, dual operation of touch screen and physical buttons for simple, fast and reliable operation.
3. Integrates low-voltage pulse, high-voltage flashover and eight-pulse testing technologies with smooth and readable waveforms, and supports pulse coupler matching to realize eight groups of high and low voltage waveform comparison analysis.
4. Supports professional cable detection functions including cable wave speed calibration, cable length measurement and fault distance testing to meet diverse field detection demands.
5. Features fully automatic continuous sampling and real-time waveform capture, with automatic range adjustment and intelligent waveform analysis to output accurate fault distance data efficiently.
6. Possesses powerful data processing and file management capabilities, supporting classified storage, query and archiving of test waveforms.
7. Comes with large-capacity local storage, capable of saving over 8000 low/high-voltage pulse waveform records and more than 250 multi-pulse waveform records.
8. Supports USB data transmission, enabling waveform file import into computer software for secondary analysis and centralized management.

Product Composition

Instrument Component List

name

quantity

Graphics

name

quantity


Graphics

Cable Fault Tester

1

 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 0

Coupler

1

10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 1

Single Q line

1

 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 2

Double Q line

1

 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 3

Sampler

1

 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 4

power cord

1

 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 5

Coupler high voltage line A

1


 10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 6

Coupler high voltage line B

1

10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 7

ground wire

1

10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 8

USB communication cable



10-inch Touchscreen Cable Fault Tester with Multi-Pulse Technology and Automatic Ranging 9


Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
M*i
Poland Apr 29.2026
Helpful (1)

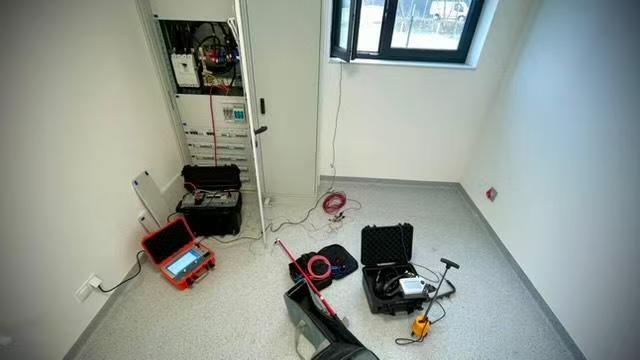

The XHGG502 tester works flawlessly for indoor building wiring jobs. It quickly located hidden cable faults inside Warsaw’s Złota 44 high-rise. Compact, precise amid tangled inter-floor wires and saves us tons of repair time.
Review Image
W
Wayne Butler
United States Mar 7.2026
Helpful (3)
Absolute workhorse for our utility crew，I’ve used this cable fault tester on underground power lines across Ohio suburbs for four months straight. Last Tuesday, we located a water-soaked cable short under a residential driveway in Columbus; it pinpointed the fault within 3 feet. It blocks signal interference perfectly amid dense parallel power lines in neighborhood subdivisions. The heavy-duty shell survives bouncing around our work trucks, and the battery stays charged through full field shifts. It slashes our digging hours and never fails on emergency service calls.
M
Marcin
Turkey Mar 7.2025
Helpful (5)
We purchased the XHGG502A for our company's cable fault detection work, and we are extremely satisfied with its overall performance! The equipment is stable and reliable, and the measurement data is accurate. Compared to similar products we used before, it has stronger resistance to moisture and dust, making it suitable for various harsh working environments. Furthermore, its compact size makes it easy to store and transport. The technical team at Xuzhihui Electromechanical also provides regular follow-up visits and maintenance advice, which gives us great confidence in the product and service!
Review Image
Tags:

High Voltage Cable Fault Locator,

High Voltage Pulse Generator,

Portable Cable Fault Locator
