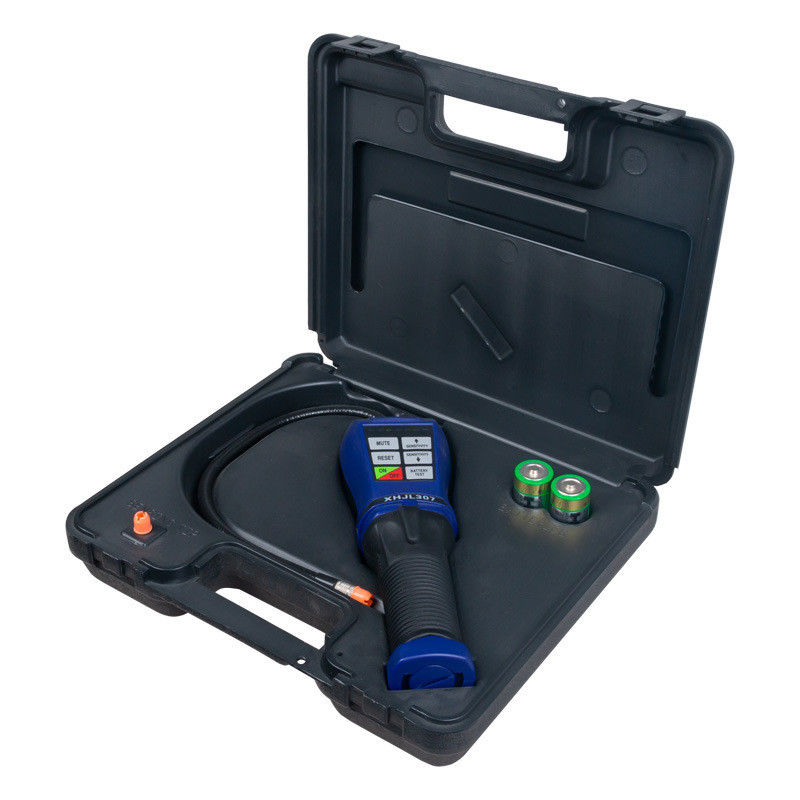

Portable Sulfur Hexafluoride Qualitative Leak Detector Sf6 560g Customized

Name: Portable Sulfur Hexafluoride Qualitative Leak Detector Sf6 560g Customized
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJL307
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHJL307

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHJL307

Model NO.:

XHJL307

Power:

Electricity

Color:

Black

Size:

22.9cm*6.5cm*6.5cm

Weight:

560g

Power Supply:

DC 3V

Material:

PVC

Transport Package:

Wooden Box With Foam Inside

Supply Ability:

1000 Pieces /Year

Customization:

Available

Warranty:

12 Mouth

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

1000 PCS/Year

Product Description

XHJL307 gas leak detector is the most stable and sensitive. The high-tech central micro-processing unit is the core of this product, and its digital signal processing capability can better manage the circuit and process the detection signal. The microprocessor monitors the probe and battery voltage at a rate of 4000 times per second, and the extremely small signals can also be captured, and it can work stably and reliably in any environment.
XHJL307 gas leak detector has added some convenient functions: seven-level sensitivity increases the sensitivity by 64 times, and the three-color light-emitting diode indicates the degree of leakage in a wide range in a gradual manner. It is also used to display the sensitivity level and battery power; the touch keyboard can perform all operations; the avant-garde slender shape design is greatly convenient for users to use and maintain; the indicator light is very convenient in the direct view range during use.

Main Features
1. Microprocessor control, with advanced digital signal processing.

2. Tri-color visual display seven levels of sensitivity provide an increase of up to 64x tactile keypad.

3. Real time sensitivity Adjustment

4. Battery test

5. Battery voltage indication

6. Certified to SAE J1627 for R134a, R12,R22

7. True mechanical pumping provides positive airflow through sensing tip

8. Detects all Halogenated Refrigerants, With gradient function

9. Cordless and portable, operates on 2 "C"-cell batteries

10. High-strength instrument box, reliable protection instrument

11. Flexible, stainless probe

Item	Value
Power source	3V DC, 2 AA alkaline batteries
Maximum sensitivity	R12, R22, R134a have been approved (14g/year)
Ultimate sensitivit	for halogen refrigerants, less than 3 g/year
Probe life	about 2000 hours
Working temperature	0ºC-52ºC
Battery life	about 30 hours under normal use
Working mode	continuous, unlimited
Response time	instant
Reset time	1 second
Warm-up time	about 2 seconds
Weight	560 grams
Dimension	22.9cm×6.5cm×6.5cm
Probe length	35.5cm
