Circuit Breaker Analyzer
>
Arrester Monitoring Calibrator for Substation Safety Checks

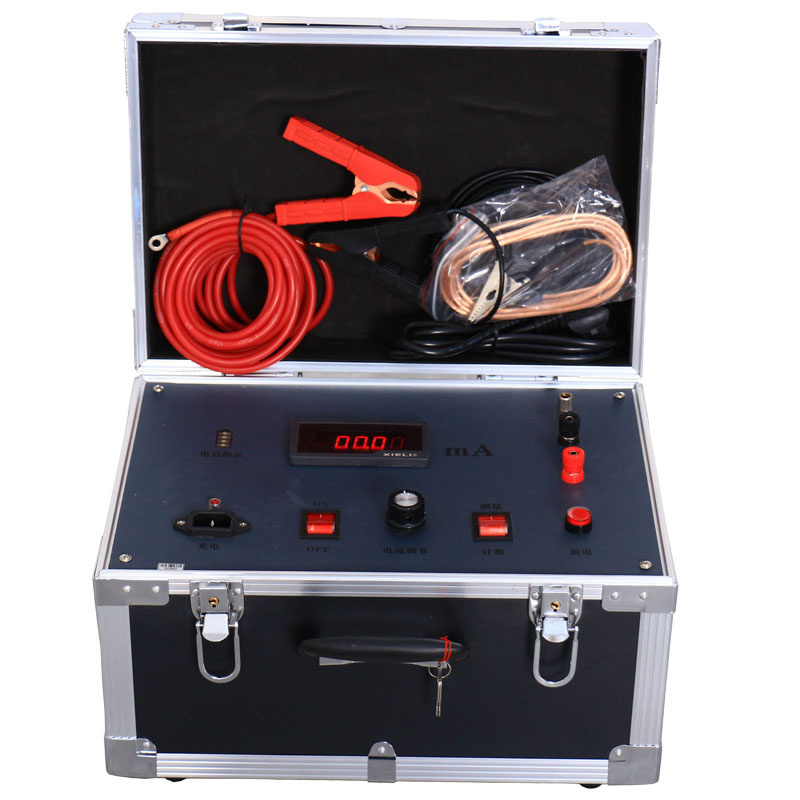

Arrester Monitoring Calibrator for Substation Safety Checks
  • Arrester Monitoring Calibrator for Substation Safety Checks
  • Arrester Monitoring Calibrator for Substation Safety Checks
  • Arrester Monitoring Calibrator for Substation Safety Checks
  • Arrester Monitoring Calibrator for Substation Safety Checks

Arrester Monitoring Calibrator for Substation Safety Checks

Product Details:
Place of Origin: China shanxi
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJS401A
Detail Information
Place of Origin:
China shanxi
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJS401A
Highlight:

High Light

Highlight:

arrester monitoring calibrator for substations

,

circuit breaker analyzer calibrator

,

substation safety check calibrator

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
China Manufactured Arrester Monitoring Calibrator
Lightning arrester monitors are widely used in substations across China, where their operational status directly impacts power system safety. These monitors track lightning arrester actions and leakage current. However, factors like moisture ingress due to poor sealing can cause component rusting, leading to counter malfunctions or inaccurate current readings. Annual inspections are mandated by regulations, making this instrument an essential tool for maintenance.
Arrester Monitoring Calibrator for Substation Safety Checks 0
Main Features
  • Monitor count verification (on-power/off-power)
  • Ammeter accuracy verification (on-power/off-power)
  • True RMS measurement with excellent stability
  • Strong anti-interference capability for inter-frequency output during online operation
  • Standard sine wave output for consistent verification results
  • Built-in battery measurement for convenient field use
Arrester Monitoring Calibrator for Substation Safety Checks 1
Arrester Monitoring Calibrator for Substation Safety Checks 2
Technical Parameters
Parameter Specification
Power supply Built-in battery 4Ah 12V
Output frequency 55Hz
Output current 5mA/10mA (customizable)
Resolution 0.001mA
Current accuracy 0.5%±3 words
Inrush current 50A ~ 100A (instant)
Impact voltage DC 1000V
Action count 1 ~ 2s / times
Action number Cyclical measurement
