Circuit Breaker Analyzer
>
Highly Sensitive Sulfur Hexafluoride Qualitative Leak Detector XHJL307 for Customized

Highly Sensitive Sulfur Hexafluoride Qualitative Leak Detector XHJL307 for Customized

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE
Model Number: XHJL307
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHJL307
Model NO.:
XHJL307
Customized:
Customized
Color:
Black
Transport Package:
Exported Wooden Case
Trademark:
XZH TEST
Origin:
China
Supply Ability:
2000PCS/Year
Customization:
Available
After-sales Service:
After Sale Serive
Warranty:
12 Months
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
2000 PCS/Year
Product Description

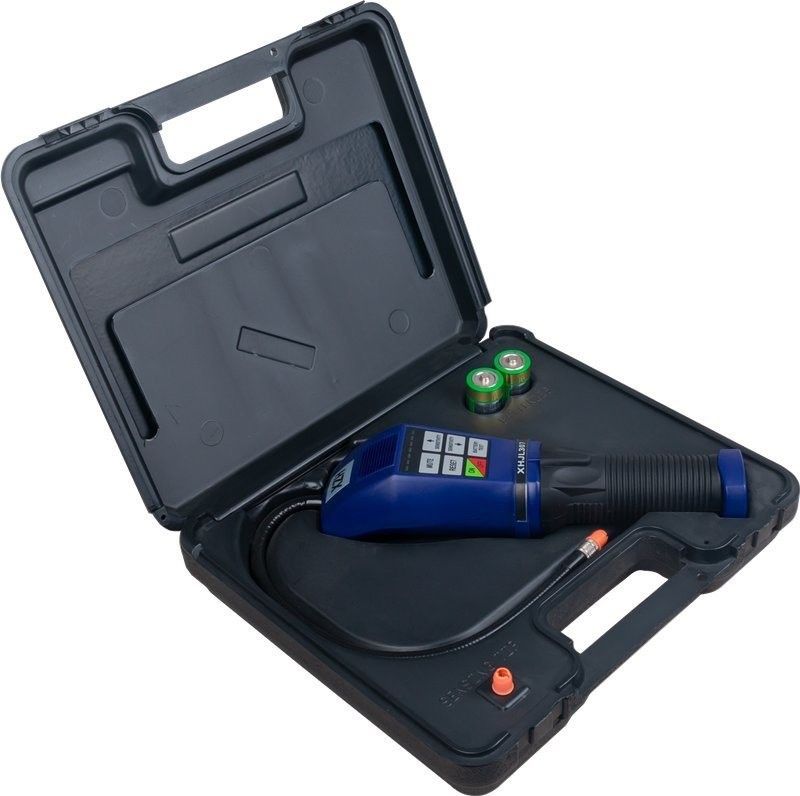

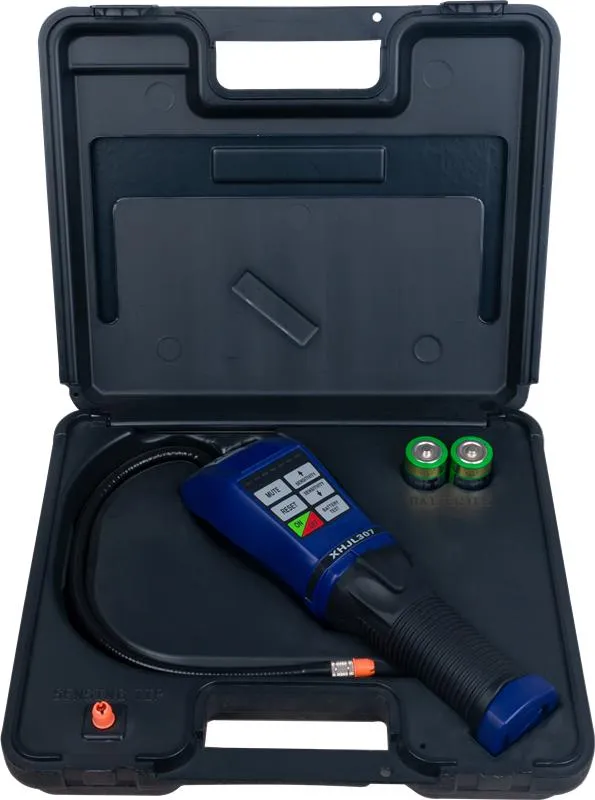

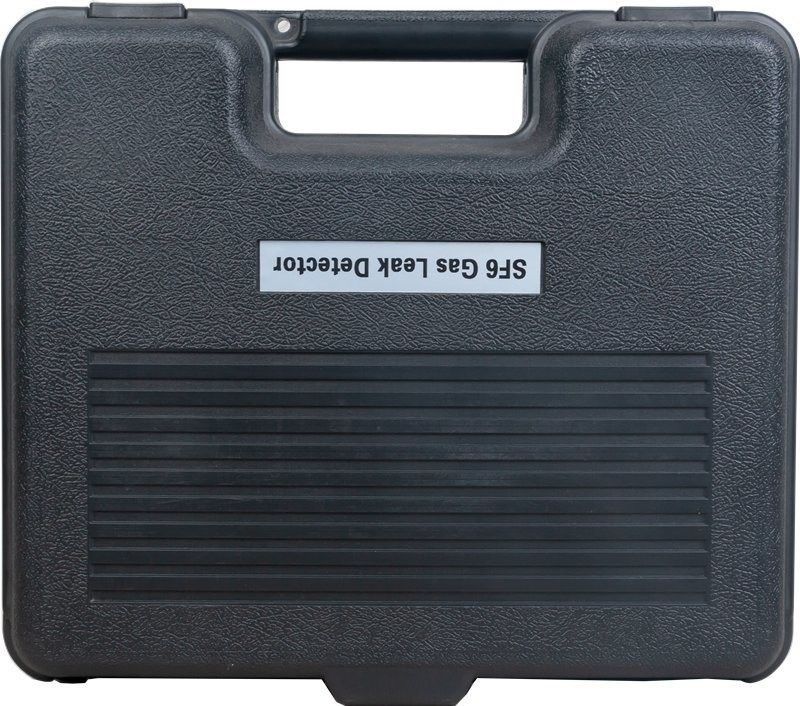

Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)


Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)


Product Description



XHJL307
An advanced microprocessor is the heart of this unit. Digital signal processing method permits better management of the circuit and sensing tip signal than ever before. Additionally, its digital signal processing technology ensures real-time monitoring sensor tips and the battery voltage, to compensate signal pulse of even small changes timely, which  making the instrument become a stable and reliable testing tool in different environment.





Product Parameters


Main features
1. Microprocessor control, with advanced digital signal processing
2. Tri-color visual display seven levels of sensitivity provide an increase of up to 64x tactile keypad controls
3. Real time sensitivity adjustment
4. Battery test function
5. Battery voltage indication
6. Certified to SAE J1627 for R134a, R12, R22
7. Detects all Halogenated Refrigerants
8. True mechanical pumping provides positive airflow through sensing tip
9. Mute feature included
10. Cordless and portable, operates on 2 "C"-cell batteries
11. Carrying case included
12. Flexible, stainless probe
13. Optional reference leak source



Main parameters
Power supply:3V DC,two "C" cell Alkaline batteries
Maximum sensitivity:Per SAE J1627 Rating Criteria, certified for R12,R22,134a @ 0.5 oz/yr.(14gr/yr)
Ultimate sensitivity:less than 0.1 oz/yr (3yr/yr) for all halogen based refrigerants
Temperature:0-52ºC
Battery life:approximately 30h normal use
Duty cycle:continuous, no limitation
Response time:instantaneous
Reset time:one second
Warm-up time:approximately two seconds
Unit dimensions:22.9cm×6.5cm×6.5cm
Fixed probe length:35.5cm



All interfaces will be made and displayed in English after your order


 Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)


Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.





Company profile





XZH TEST is a professional cable fault detection equipment manufacturer. We are a young team. Our development philosophy is humanized management, intelligent cloud-based products, and internationalized operations. Our development mission is to make electrical equipment free from undetectable failures.



Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of testing equipment.



What we can do



We have the ability to innovate new products and technologies.



We can provide complete system solutions for your project.



We provide online and offline practical and theoretical training.



We provide instrument repair and calibration.


Highly Sensitive Sulfur Hexafluoride Qualitative Leak Detector XHJL307 for Customized 3Highly Sensitive Sulfur Hexafluoride Qualitative Leak Detector XHJL307 for Customized 4Highly Sensitive Sulfur Hexafluoride Qualitative Leak Detector XHJL307 for Customized 5




Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)


Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)
Sulfur Hexafluoride Qualitative Leak Detector Sf6 Leak Detector (XHJL307)
