XHDP Series 50KV Vlf Hipot Tester Ultra Low Frequency AC High Voltage Generator



XHDP Series 50KV Vlf Hipot Tester Ultra Low Frequency AC High Voltage Generator



Product Description



30KV, 50KV, 60KV, 80KV Available. Welcome you contact us for more information.



The product combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, step down, measurement and protection as well as the manual intervention in the process of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output wave form. The printer outputs test reports

Product Features



* Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
* Over voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
* Over current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
* A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.

Product Parameters





Model no	Rated Voltage/current	Load Carrying Capacity	Power Fuse Tube	Product Structure and Weight
VLF-30	30kV/20mA (Peak)	0.1Hz,≤1.1µF	5A	Controller:4kg Booster: 40kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
VLF-50	50kV/30mA (Peak)	0.1Hz,≤1.1µF	15A	Controller:4kg Booster: 46kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
VLF-80	80kV/30mA (Peak)	0.1Hz,≤1.1µF	20A	Controller:4kg Booster Grade 1(30kV):40kg Booster Grade 2(50kV):46kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF

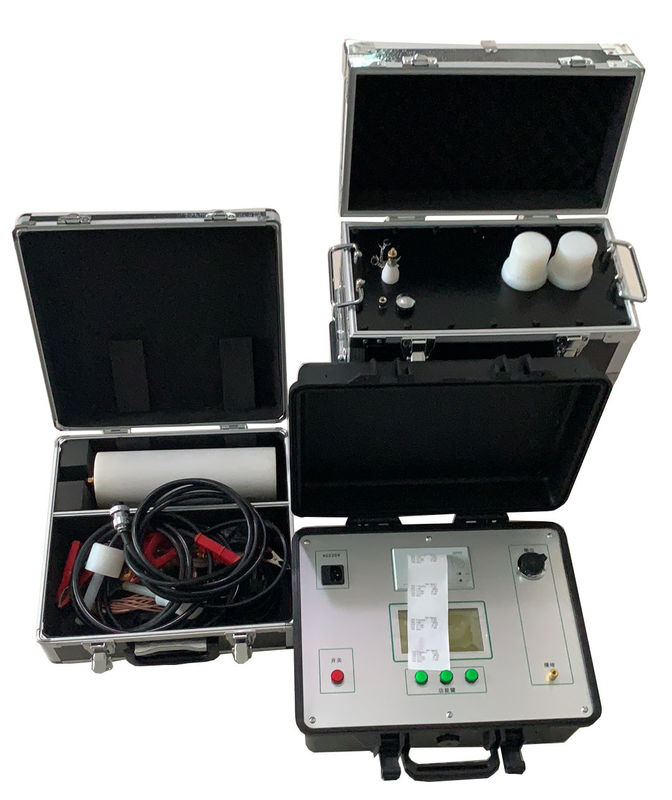

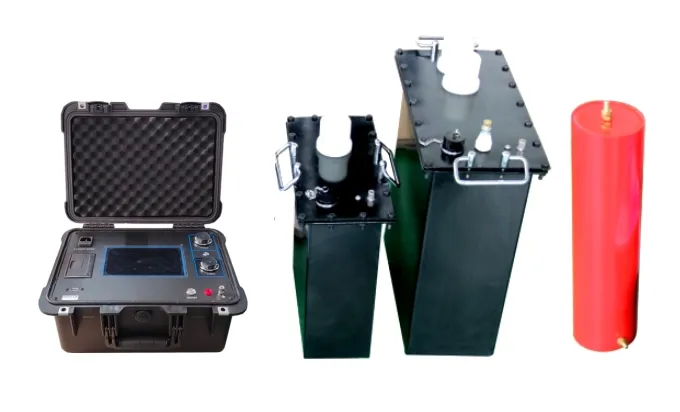

Detailed Photos





Company profile





XZH TEST is a professional cable fault detection equipment manufacturer. We are a young team. Our development philosophy is humanized management, intelligent cloud-based products, and internationalized operations. Our development mission is to make electrical equipment free from undetectable failures.



Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of testing equipment.



What we can do



We have the ability to innovate new products and technologies.



We can provide complete system solutions for your project.



We provide online and offline practical and theoretical training.



We provide instrument repair and calibration.

FAQ

1. Are you a trading company or a manufacturer?

We are a professional manufacturer with more than 10 years of experience. We can strictly control the quality of parts and finished products.

2. What is the delivery time and inventory?

If our best-selling products are in stock, it will be 5-8 working days for shipment. But for mass production and customized production, the time will take 2-4 weeks.

3. What are your payment terms?

Payment ≤ USD 2000, 100% T/T prepayment. Orders over USD 2000 can be negotiated.

4. How long is your product warranty?

We provide 1 year warranty for the equipment.

5. How do you ensure quality?

The product links include R&D, manufacturing, commissioning and technical support, following strict and scientific management principles. Therefore, we can support strong production and R&D capabilities, and can produce high-quality products at competitive prices to meet customers' high requirements.

6. What support can I get?

We will provide training support, marketing support, technical support and supply chain support. You can contact us for more information.

7. Where is your factory? Can I visit your factory?

We are located in Xi'an, Shaanxi, China. We are close to Xi'an Xianyang International Airport, which is about 2 and half hours by plane from Shanghai and Guangzhou. All customers from all over the world are welcome to visit us.

8. How to become your dealer?

Every company interested in power system instruments can contact us without hesitation, including website letters, emails, telephones, etc. We will contact you quickly according to your company information and cooperation intentions.
