AC DC Hipot Tester
>

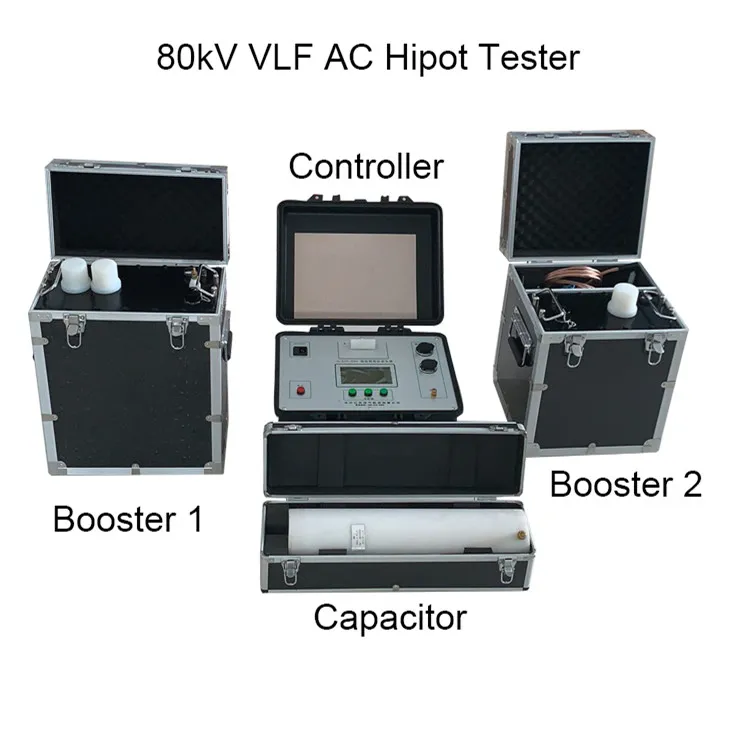

High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry
  • High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry
  • High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry
  • High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry

High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE, ISO
Model Number: XHDP-80
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE, ISO
Model Number:
XHDP-80
Model NO.:
XHDP-80
Power:
Electricity
Customized:
Customized
Color:
Black
Transport Package:
Exported Wooden Case
Trademark:
XZH TEST
Origin:
China
HS Code:
9030390000
Supply Ability:
2000PCS/Year
Customization:
Available
Warranty:
12 Months
Highlight:

High Light

Highlight:

80kV VLF hipot tester

,

high voltage cable tester

,

AC hipot tester for electricity industry

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
2000 PCS/Year
Product Description

High Voltage Cable AC Hipot Tester XHDP-80 0.1Hz Vlf 80kv for Electricity Industry

Basic Info.

Model NO.
XHDP-80
Test Region
Forming Cable
Power
Electricity
Certification
CE
Customized
Customized
Color
Black
Transport Package
Exported Wooden Case
Specification
80KV 0.1Hz, 0.02Hz, 0.05Hz
Trademark
XZH TEST
Origin
China
Production Capacity
2000PCS/Year

Product Description

Product Description

The 0.1Hz VLF AC hipot tester combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, step down, measurement and protection as well as the manual intervention in the process of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output wave form. The printer outputs test reports. In addition, the product has features as follows.




Features


  • Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
  • Over voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
  • Over current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
  • A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.


High Voltage Cable AC Hipot Tester Vlf 80kv for Electricity Industry 0

Product Parameters



Model:XHDP-80(use for 80KV, 35KV cable) cable hipot tester


Model no Rated Voltage/current Load Carrying
Capacity		 Power
Fuse Tube
XHDP-80 80kV/30mA
(Peak)		 0.1Hz,≤1.1µF 20A
 0.05Hz,≤2.2µF
 0.02Hz,≤5.5µF


1. Output voltage ratings:0-80KV
2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
3. Measurement accuracy: 3%
4. Positive and negative voltage peak errors:  ≤ 3%
5. Voltage wave form distortion: ≤ 5%
6. Use condition: indoor and outdoor; temperature: -10ºC∽+40ºC
Humidity: ≤ 85%RH
7. Power: AC50Hz, 220V ±5%
8. Power supply fuse tube: See Details of Table1
