Cable Fault Locator
>
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
  • High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
  • High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
  • High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
  • High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy
  • High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy

Product Details:
Place of Origin: Shaanxi
Brand Name: XZH TEST
Certification: CE
Model Number: XHHV535-4Z
Detail Information
Place of Origin:
Shaanxi
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHHV535-4Z
Highlight:

High Light

Highlight:

2450J High Voltage Surge Generator

,

High Voltage Surge Generator

,

35kV High Voltage Surge Generator

Trading Information
Minimum Order Quantity:
1unit
Price:
EXW 2250
Packaging Details:
wooden packaging
Payment Terms:
T/T
Supply Ability:
500 units per month
Product Description

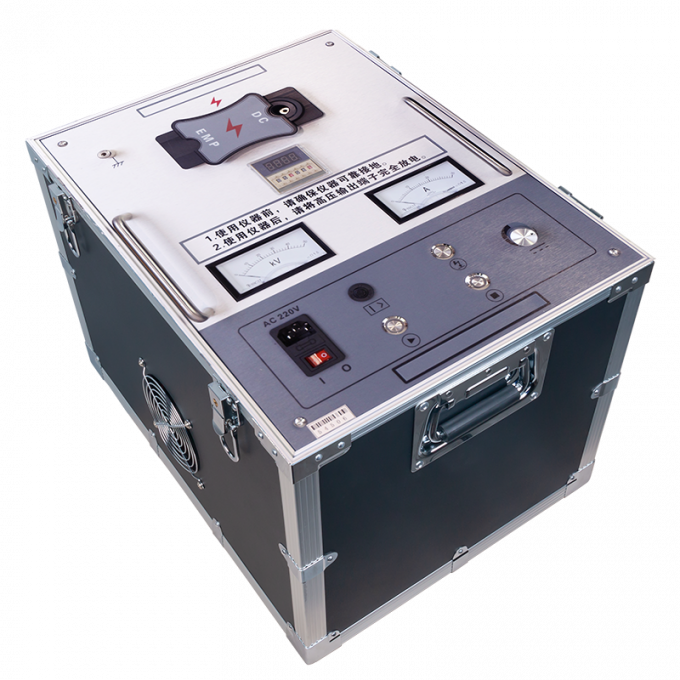

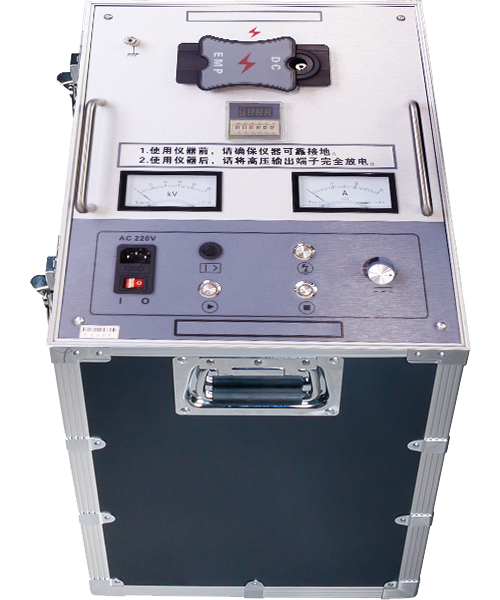

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 0

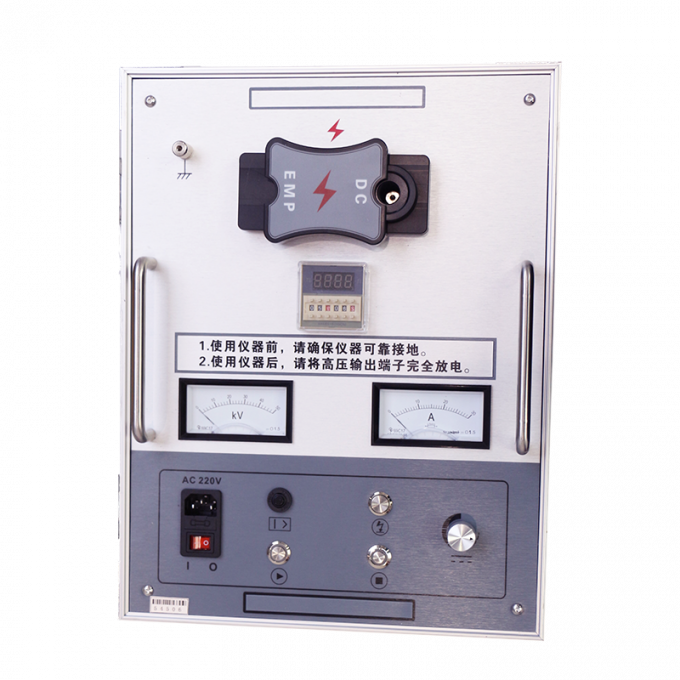

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 1
Products Descriptio
The XHHV535-4Z high voltage pulse generator is a system used to generate DC high-voltage pulse signals and generate electrical test signals with required parameters. It is often used as an impulse high-voltage power supply for fault detection of power cables with voltage levels of 35kV and below. Its impact high voltage is 0-35KV, built-in 4μF capacitor, and the discharge energy is up to 2450J.

The XHHV535-4Z HV surge generator consists of a charging circuit and a discharging circuit. It samples the voltage of the high-voltage cable and sends it to the voltage regulator control circuit. It is usually used in high-voltage flashover fault testing and acoustic-magnetic synchronization fault point determination.

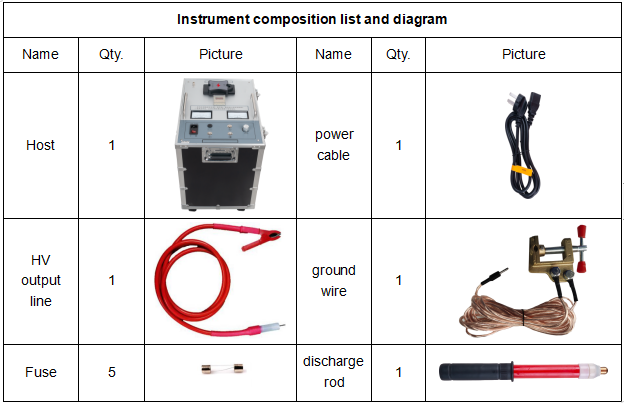

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 2
Impact high voltage
0～35Kv
High voltage partial pressure
1.5 level
Built-in capacitor
4μF
Discharge power
2450J
Impact power
400W
Over temperature protection
85℃
Volume(mm)
420L×325W×480H
Weight
not more than 40kg
Power supply
AC220V±15%, 50Hz±2Hz(60Hz can be customized)
Ambient temperature
-20～+50℃
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 3
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 4
Features
★With automatic protection functions for overcurrent, overvoltage and overheating;
★High-voltage pulse output is uniform and controllable;
★The super short-circuit protection function can make the high-voltage output directly short-circuit to the ground;
★With double 1.5-level pointer meter display of current and voltage, it is intuitive and clear, and the process of impulse discharge can be seen at a glance clear
★With zero start protection, and potentiometer return to zero output function, safe and reliable;
★Unique high-voltage measurement design, in the stop state, the voltmeter can indicate the capacitor voltage in real time; ★The discharge time can be arbitrarily set within an appropriate interval.
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 5

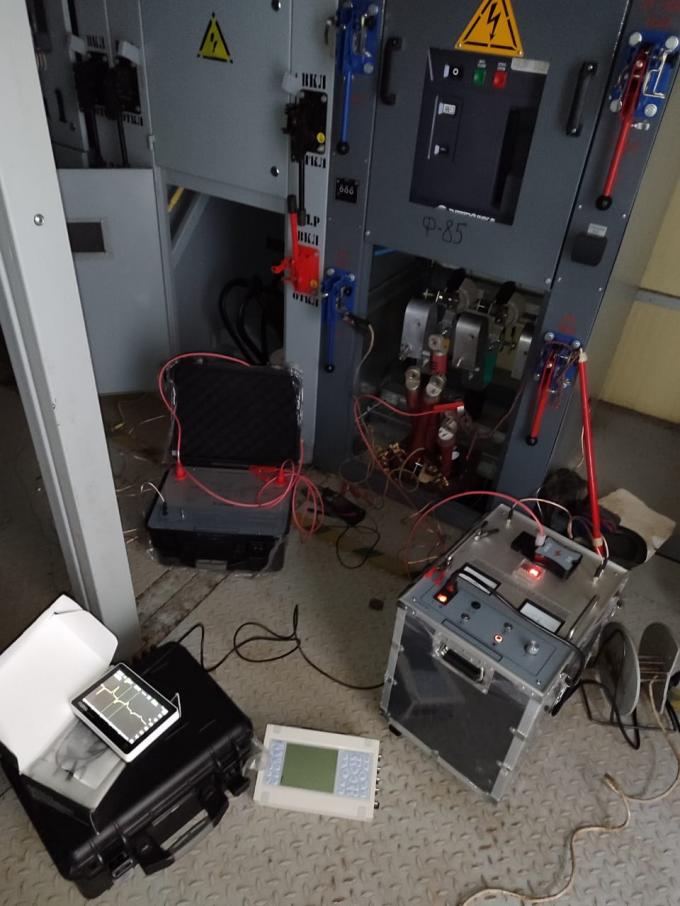

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 6

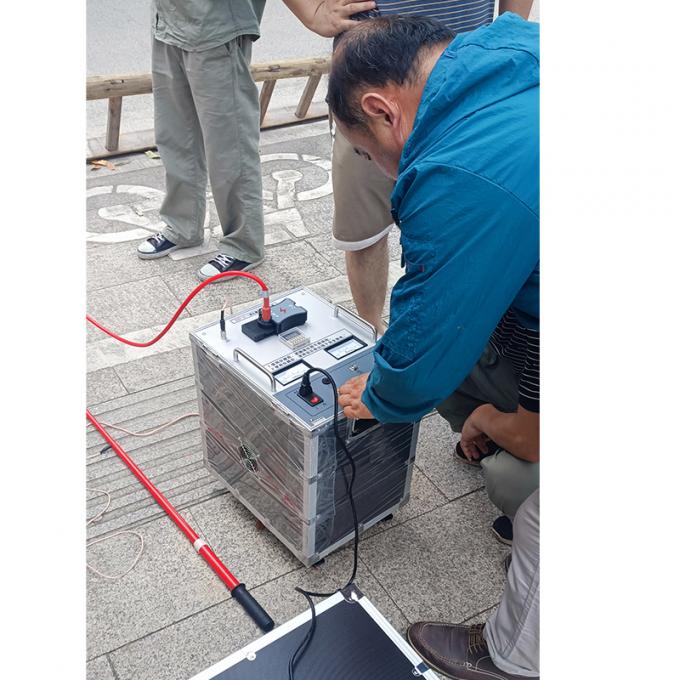

High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 7
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 8
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 9
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 10
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 11
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 12
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 13
Packing
High Voltage Surge Generator for High Voltage Flashover Fault Testing with 35kV Impact Voltage and 2450J Discharge Energy 14

Tags:

High Voltage Cable Fault Locator,

High Voltage Pulse Generator,

Portable Cable Fault Locator
