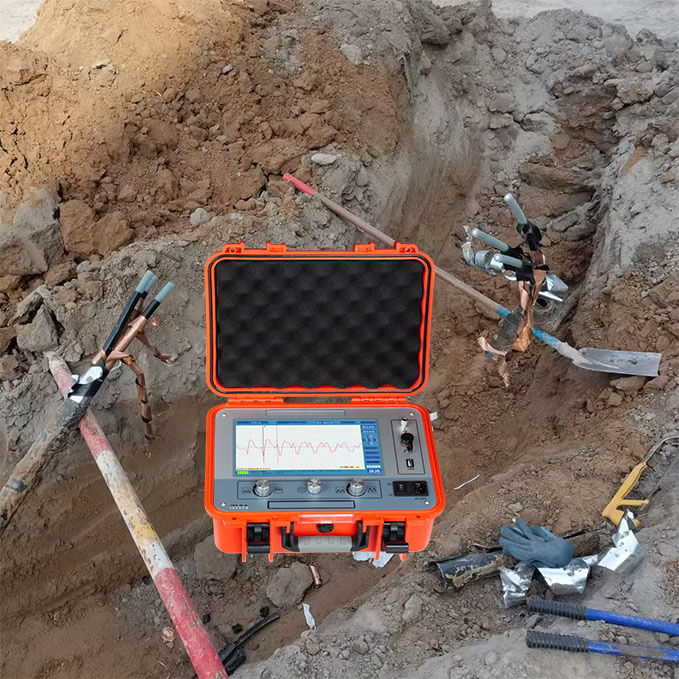

XHGG502A2 cable fault tester
Introduction

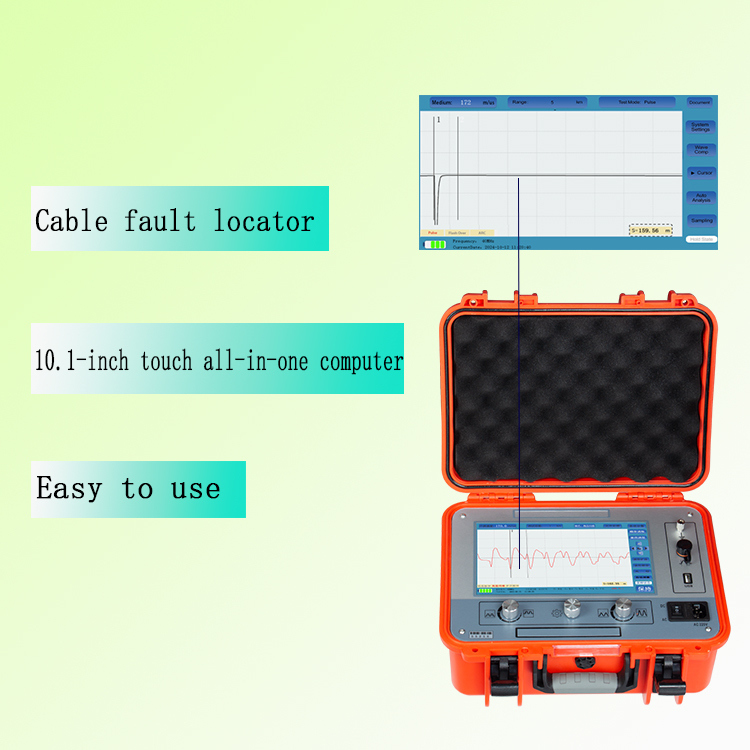

Equipped with an industrial-grade 10.1-inch touch-integrated computer, the cable fault tester offers a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, making it stable, reliable, and easy to use. This instrument is specifically designed for measuring and analyzing the status and fault distance of power cables. It utilizes a combination of modern electronic and computer technologies to perform signal filtering, acquisition, data processing, graphic display, and graphic analysis, covering cable speed measurement, cable length test, and cable fault distance test.
Features
• 10.1-inch full-color TFT touch display;
• Embedded system, safe, stable and simple display and operation mode;
• With the function of testing cable wave speed, cable length and fault distance;
• Fully automatic continuous sampling, waveform capture at all times, timely and accurate.
• Equipped with automatic test range setting, automatic waveform analysis and display of test distance.
• Full English menu, two operation methods of touch and coded buttons, simple, fast and reliable.
• Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, the waveform display is smooth and easy to interpret.
Technical indicators
| Sampling frequency |
80MHz |
| Low voltage pulse amplitude |
100V±15% |
| Ranging range |
≥65km |
| Test range |
300m/1km/5km/25km/65km |
| Pulse width |
0.125uS/0.50uS/2.50uS/7.25uS/10.0uS |
| Minimum resolution |
0.1m |
| Test blind area |
≤20m |
| Measurement error |
≤±(0.5%×L+1m), L is the cable length |
| Power supply mode |
charging AC110V~240V, 50Hz/60Hz |
| Volume and weight |
L358mm×W284mm×H168mm-4.7kg |
| Working conditions |
Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg |
Packing list
